BBK Cold Air Intake Installation Guide (2005+ V6)

The below installation instructions work for the following products:

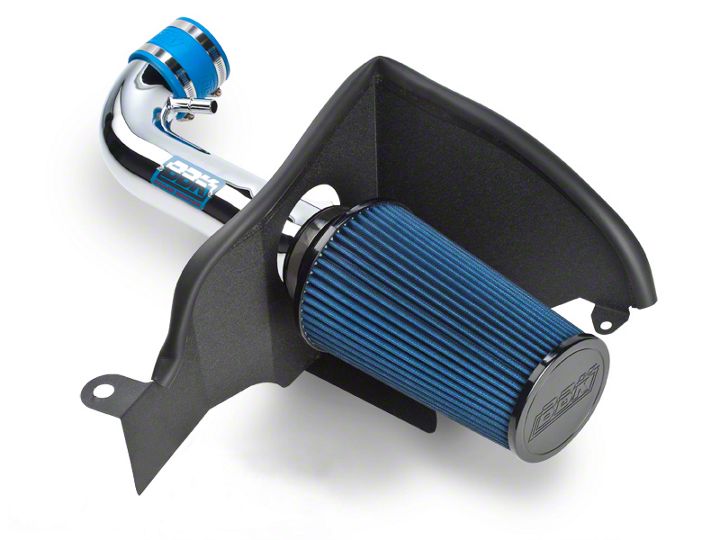

• BBK 2005+ V6 Cold Air Intake

Here at American Muscle, we're all about DIY (do it yourself). Of course, there's nothing wrong with seeking out a little bit of tech help prior to taking on an installation on your own. Our Mustang installation guides will provide valuable instructions and hopefully answer any how-to questions that you may have along the way.

(Right Click, Save Target As)

Tools needed:

• Small screwdriver
• 1/4" ratchet
• 8mm and 10mm sockets
• 2.5mm Allen wrench
• T-20 Torx

• Inlet pipe
• coupler
• coupler clamps
• air filter
• air filter shroud
• shroud rubber gasket

Installation:

Stock Factory Air Intake

1. Disconnect negative terminal on your battery.


2. Disconnect Mass Air Flow (MAF) harness. Pull the red clip up and pull outward from the assembly.


3. Disconnect Vacuum (PCV) Hose. Push the slip over the little notch and pull the house off.


4. Remove the bolt holding the Air filter housing, and loosen the clamp near the throttle body.



5. Remove the intake assembly and set aside.


6. Remove the radiator shroud. Use a flathead screwdriver to pry the pin up, and then remove the pin assembly. (mines silver)


7. With the shroud removed, remove the upper radiator support. remove the bolt closest to the grill, and then work the piece off.



8. Put the blue filter coupler on the throttle body and slip a steel band over and tighten(the piece has a grove in it for the band to fit into)


9. Remove the MAF assembly from the original intake and transfer it to the new BBK intake piping.



10. Put the black shroud over the new intake pipe and install the new air filter. Slide it on until it meets the MAF assembly.


11. Put the shroud insulation over the shroud. i cut it in the middle so it would go around the 90 degree bend easier.


12. Put the radiator support and shroud back on.


13. Reconnect the MAF harness and PCV Line.


14. Reconnect your negative battery terminal.


Finished Installation

15. Start the car and listen for any air or vacuum leaks, a vacuum leak could cause the check engine light to come on. If your check engine light does come on double check all your connections and make sure they are tight. A nice feature of the BBK CAI is that it does not require a computer retune for use on the 2005+ V6 Mustangs like other brands do.


16. Now just admire the good looks and extra horsepower your new BBK cold air intake has to offer.

Installation instructions provided by AmericanMuscle customer Kuro Tawil
