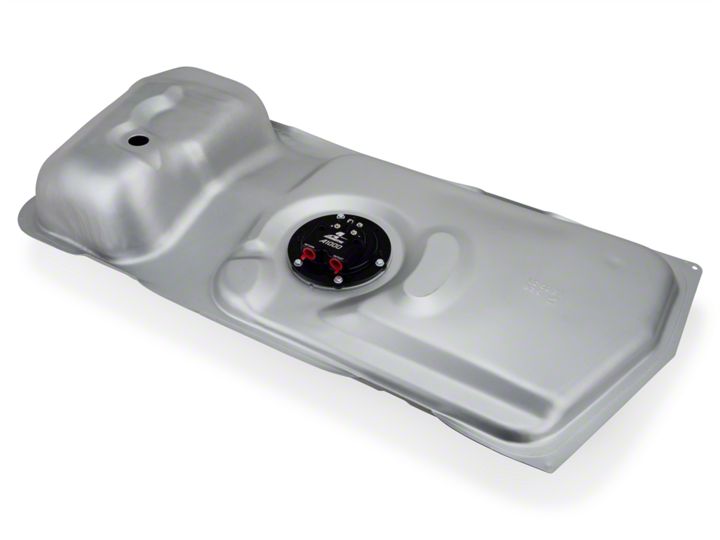

How to Install an Aeromotive Stealth Fuel Kit with Tank- A1000 on your 1986-1998 Mustang GT and Cobr

Installation Time

4 hours

American Muscle
Shop Parts in this Guide

CAUTION:

Installation of this product requires detailed knowledge of automotive systems and repair procedures. We recommend that this installation be carried out by a qualified automotive technician.

Installation of this product requires handling of gasoline. Ensure you are working in a well ventilated area with an approved fire extinguisher nearby. Extinguish all open flames, prohibit smoking and eliminate all sources of ignition in the area of the vehicle before proceeding with the installation.

When installing this product, wear eye goggles and other safety apparel as needed to protect yourself from debris and sprayed gasoline.

WARNING!

Installation of this fuel pump requires fuel system conversion to a return style fuel system (use of a bypass style regulator). Also note that a check engine light may be present after installation due to the factory retumless system being modified. This can be turned off with tuning software.

Aeromotive components are not legal for sale or use on emission controlled motor vehicles.


The following steps are typical of most installations:

1 Once the engine has been allowed to cool, disconnect the negative battery cable and relieve the fuel system  pressure.

2 Raise the vehicle and support it with jack stands.

3 Referring to the appropriate vehicle service manual for instructions, drain, disconnect any electrical and fuel component connections and remove the OEM fuel tank. The removal of the vehicles exhaust system may be necessary for fuel tank removal.

4 Once the OEM fuel tank has been removed, remove the plastic fuel tank shield from the bottom of the tank. Transfer the shield to the new Aeromotive tank.

5 Remove the Aeromotive fuel pump assembly to gain access to the inside of the tank. Set fuel pump assembly to the side for later use.

6 From the old OEM fuel tank, remove the filler neck rubber grommet, fuel level sender, vent and vent grommet, and wiring harness. Inspect all parts for damage, if none found, reinstall in new Aeromotive tank. If any of the OEM components are damaged replacement parts are available through your local Ford dealer or auto parts store. Use figure 1-1 to install the factory fuel level sensor on to the provided fuel level bracket.


7 Before piacing the fuel level sensor assembly in the tank, attach the two wires on the pump to the fuel level sensor assembly. Using one of the wires and the red solder splice, extend the factory wire coming from the fuel level sensor. Crimp the provided ring connector on the other wire and attach the ring connector to the bracket with the self threading screw. FIGURE 1-2


8 Position the fuel level sensor assembly into the tank as shown in FIGURE 1-3 (resting the fuel pump on the top of tank while the leveling unit assembly is installed). With the fuel level sensor bracket and the baffle walls butted up against each other. Push the provided edge clips into position to secure the two pieces together.


9 Now the fuel tank is ready for your Aeromotive fuel pump assembly.

10 Position the fuel pump in the tank with the outlet/return pensuling forward (toward the front of the car). Use the supplied 6 bolts and washer to secure the pump assembly to the tank. FIGURE 1-4


11 Position the fuel tank under the vehicle. Apply light weight oil to the filler neck grommet to ease installation.

12 As the Aeromotive fuel tank is lifted into position reattach the vent line to the top of the fuel tank and work the filler  neck in to the grommet on the side of the fuel tank. Make all electrical connections at this time, use the FIGURE 1-5 for fuel pump wiring (Aeromotive pump wiring kit 16301).


NOTE: If using the 18686 on the street, the use of Aeromotive speed pump controller is a must (Aeromotive speed pump controller part # 16306).

13 Attach the feed and return lines to the top plate before placing the tank in the vehicle (8AN feed and return lines  recommended).

14 Once the Aeromotive fuel tank is in position, align tank straps, ensure that there are not any hoses or wiring pinched and tighten the strap bolts.

15 Make any line or electrical adjustments necessary to clear the vehicles exhaust, suspension, and drivetrain components.


Final Checks and System Start-up

16 Ensure that any spilled yasoBwr and any gasoline soaked shop towels are cleaned up and removed from the  vicinity of the vehicle!

17 Carefully lower the car onto the ground.

18 Fill the fuel tank with gasoline and check for any leaks in the system, if any leaks are found repair immediately.

19 CAUTION: While performing the following steps, if any fuel leaks are detected, immediately turn the ignition of OFF, remove any spilled fuel and repair the leak(s) before proceeding!

20 Reconnect the battery and turn the ignition to the ON position WITHOUT starting the car. After several seconds, check the fuel pressure. If there is no fuel pressure, turn the ignition key to the OFF position, wait one minute, return the ignition to the ON position, and recheck the fuel pressure. Repeat this ignition OFF and ON procedure until the fuel pressure gauge registers fuel pressure.

21 With the fuel pressure gauge registering fuel system pressure, check for fuel leaks throughout the entire fuel system! If any fuel leaks are found, turn the ignition key to the OFF position, remove any spilled fuel and repair the leak before proceeding!

22 Test drive the car to insure proper operation and re-check the fuel system for leaks. If any leaks are found, immediately discontinue use of the vehicle and repair the leak(s)!
