How to Install a Airaid Poweraid Throttle Body Spacer on your 2005-2010 V6 Mustang

This Mustang Parts Installation Guide Works For

Airaid Poweraid Throttle Body Spacer (05-10 V6)Airaid Poweraid Throttle Body Spacer (05-10 V6) 450-613
Fitment Includes:
  • - V6 2005, 2006, 2007, 2008, 2009, 2010
DOWNLOAD PDF

Tools Required

  • 5/16”, 10mm Sockets
  • Ratchet and Extension
Installation Time: 1 Hour

Installation

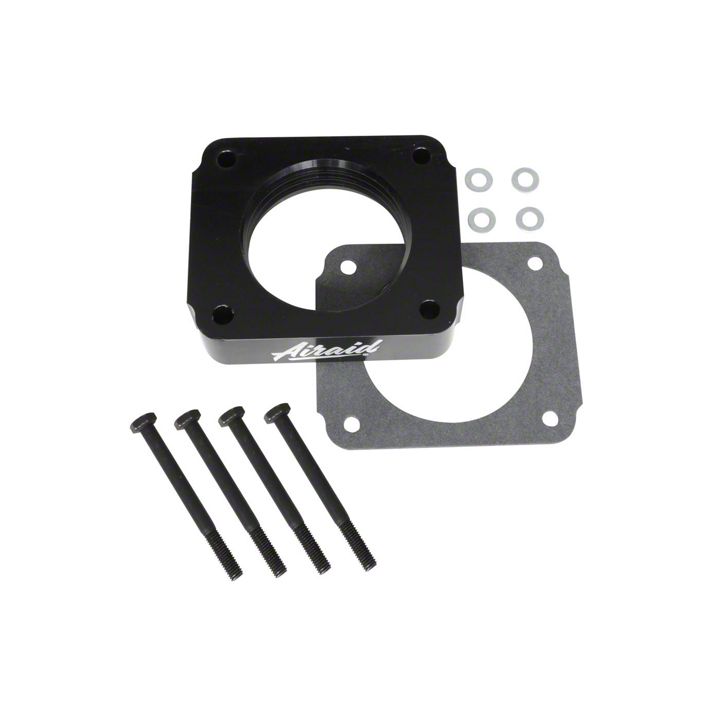

Parts List

#1 Poweraid Spacer x1

#2 6mmx65mm Bolts x4

#3 6mm Flat Washers x4

#4 Fiber Gasket x1

airaid-poweraid-throttle-body-spacer-05-10-v6

  1. Disconnect the negative battery cable!

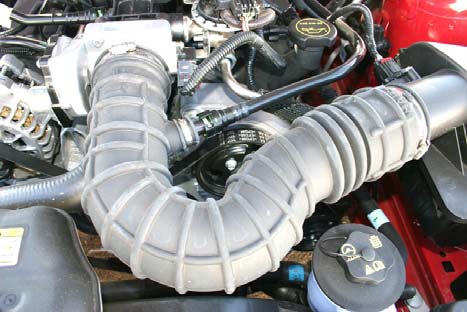

    2. Using a 5/16” socket, loosen two hose clamps that hold the intake tube between the throttle body, and the air cleaner lid.

    Turn the green tab, and disconnect the breather hose from the air intake tube. Remove the intake tube from the vehicle.

    airaid-poweraid-throttle-body-spacer-05-10-v6

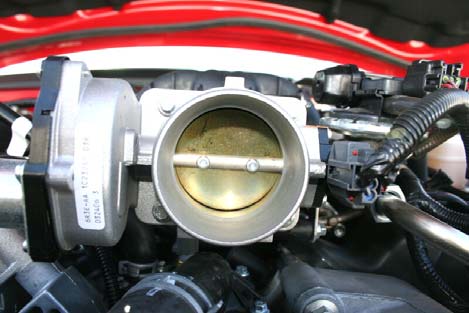

  2. Using a 5/16” socket, remove the 4 bolts that hold the throttle body to the intake manifold.

    3. airaid-poweraid-throttle-body-spacer-05-10-v6

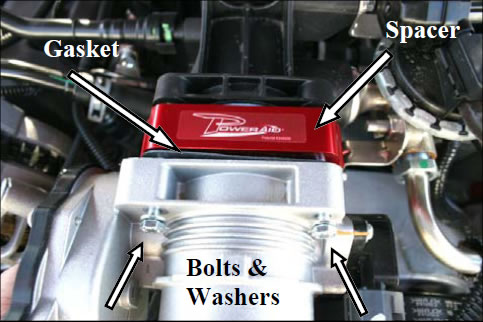

  3. Install two bolts (#2), and washers (#3) thru the throttle body, thru the gasket (#4), thru the Poweraid Spacer (#1), and into the intake manifold as shown. Use caution to retain the factory o-ring gasket on the plastic intake manifold.

    4. Next install the remaining bolts in the bottom holes of the throttle body, and tighten evenly to the manufacture's specifications. Do Not Over Tighten The Bolts!

    airaid-poweraid-throttle-body-spacer-05-10-v6

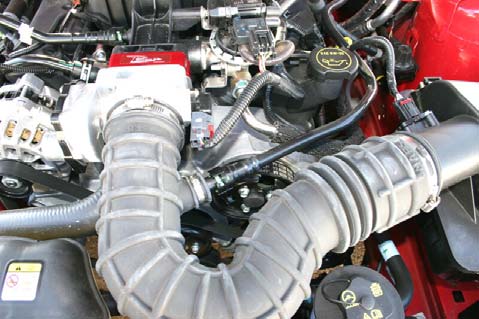

  4. Reinstall the intake tube, and tighten the hose clamps.

    5. Reconnect the breather hose to the intake tube.

  5. Inspect & test the throttle linkage for full open and closed travel before driving.

  6. Re-connect the negative battery cable!
