How to Install an Airaid Poweraid Throttle Body Spacer on Your 2011-2012 Mustang GT

This Mustang Parts Installation Guide Works For

Airaid Poweraid Throttle Body Spacer (11-14 V6)DOWNLOAD PDF

Tools Required

  • 8mm, 10mm Socket
  • Ratchet and Extension Pliers
Installation Time: 1 Hour

Installation

Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

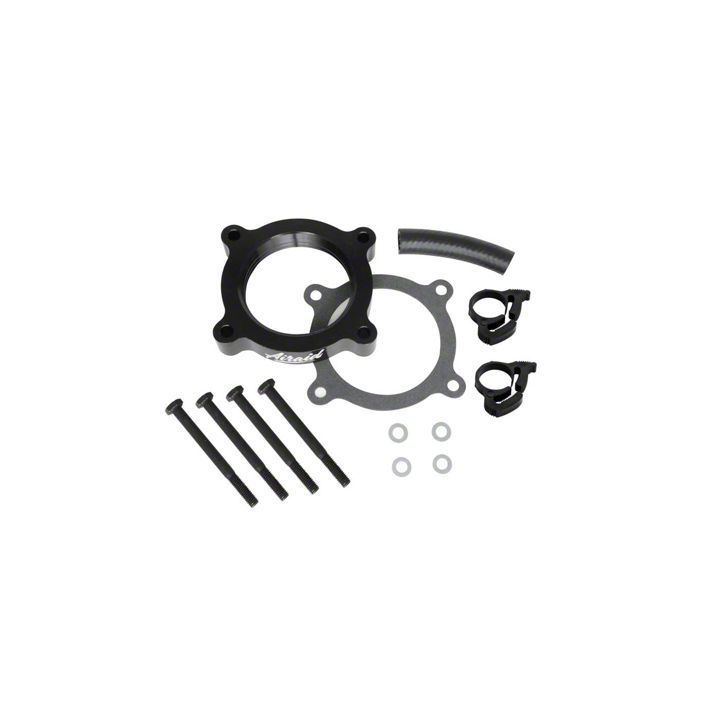

Parts List

#1Poweraid Spacerx1
#26mmx75mm Bolt x4
#36mm Flat Washerx4
#4 Gasketx1
#5Speed clampx2
#63/8” x 2- 3/4” Hose x1
Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  1. Disconnect the negative battery cable!

    A.) Disconnect the breather line or lines, from the Factory in-take tube.

    B.) loosen the clamps securing the intake tube to the throttle-body and the airbox.

    C.) Remove the Factory intake tube and set aside

  2. Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  3. Using pliers, open the spring clamps and slide off of the factory breather hose, and onto the hard line.
  4. Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  5. Remove the four bolts that secure the throttlebody to the in-take manifold and set aside. They will not be reused.
  6. Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  7. Position the Poweraid Spacer between the throttlebody and the intake manifold with the supplied gasket next to the throttle-body as shown. Make sure the “flow” arrow that is printed on the spacer is pointing towards the intake manifold. Insert the provided bolts and washers through the throttlebody, gasket, and Poweraid Spacer.
  8. Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  9. Remove the factory breather hose and spring clamps, and replace them with the supplied Breather hose and Speed clamps. Re-torque the throttlebody bolts in a X pattern, to Factory specs.
  10. Airaid-Poweraid-Throttle-Body-Spacer-(11-12-V6)

  11. Reinstall the intake tube, tighten the two hose clamps, and reconnect the breather line or lines.
    Re-connect the negative battery cable!
