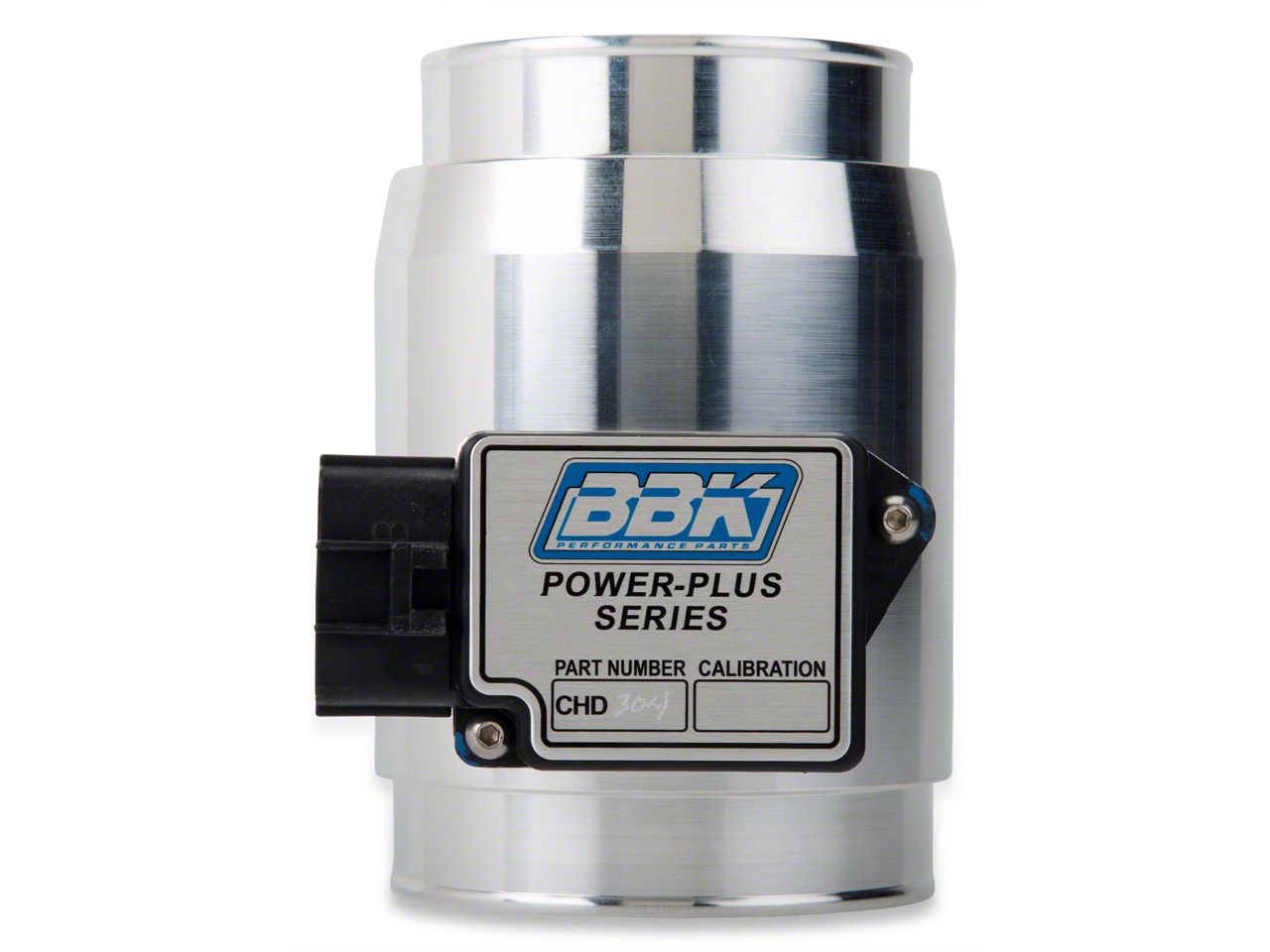

BBK Billet Mass Air Meter for Cold Air Intake and 24lb Injectors (86-93 5.0L)

BBK Billet Mass Air Meter for Cold Air Intake and 24lb Injectors (86-93 5.0L)
Click to Enlarge

TRANSCRIPT

Hello and welcome back to Stage 3 of American Muscle’s project Foxbody, as you can see we’re currently out enjoying the fruits of our labor which took place in the first two stages, and for the first time since we started this project, I can honestly say I’m not embarrassed to be out driving it. Of course a part of that lack of embarrassment is because we haven’t pulled up to anything fast yet, there’s no doubt our GT is looking good, but what’s the point of having all those Cobra parts if we don’t have the performance to back it all up, well, welcome to stage 3 my friends, where all of that is about to change. Before we get back to the shop where we lay out our plans to increase our tire slaying abilities, let’s recap what we knocked out in stage 2. In stage 2 we completely replaced our destroyed factory convertible top, with a brand new top and rear glass, along with just about every piece of molding and weather stripping you can think of, we put the finishing touches on our convertible Cobra vision, thanks to our Cobra tail light covers and 10th anniversary Cobra style wheels, made possible through the 5 lug conversion kit we installed. Finally, we moved to the interior and made it look as good as our exterior, thanks to the freshly painted dash, new carpet, and other miscellaneous items making our GT look and feel like it was 1993 all over again. Alright, I can’t wait to get back to the shop to show you all the stuff we have in store for this stage, let’s get to it. As you can see we have some big plans for our 302, all with the goal of replicating the Cobra’s power plant, which is going to drastically improve our performance. For starters, we’re going big with a trio of parts from Ford Racing, all of which will do wonders for our 5.0. First up we’re looking at the Turbo Swirl GT40X aluminum heads from Ford Racing, these heads are a variation on the original GT40 heads found on the 93 Cobra, with a few improvements. For one they’re made out of lightweight aluminum versus the heavier cast iron and they’re designed to flow much better than the original GT40’s. To top it off, we’ve installed some Cobra valve covers. For us to see the biggest gains using these heads, our stock cam just isn’t going to cut it, so we’re going to go with a popular street cam, the Ford Racing E303. This hydraulic roller cam should really compliment those GT40’s, and is an excellent choice for any street car thanks to its low to mid range torque. Of course we’re still going to have that great lope at idle which should sound amazing by the way, but it’s not radical enough that we’re going to have to worry about stalling out at every red light. The cheery on top for our 302 has to be this Ford Racing intake manifold, which is getting nearly impossible to find anymore, this part, paired with our Ford Racing heads and cam, is going to allow our 5.0 to flow some serious air, and will complete our Cobra transformation under the hood. Alright, in order to move all that extra air out of the engine, we’re reworking out entire exhaust from the headers all the way back, in order to keep up with that Ford Racing theme we’ve got going on under the hood, we selected our ceramic shorty headers, which we’d already installed when we did all of our motor work, and are designed to work specifically with those GT40 heads. From there, we go to BBK’s off road H pipe which does feature mandrel bent 2.5” stainless steel tubing, and should bolt up to those shorty headers without issue. Finally, everything’s going to exit out of Flowmaster’s American Thunder Catback exhaust, which features those iconic 44 series mufflers. This exhaust features 100% stainless steel constructions throughout, including 2.5” mandrel bent tubing, and those OE style polished tips. Alright I think it’s safe to say we’ve got the performance side of things pretty well taken care of, but we haven’t addressed the fact that this thing still handles like a boat. So we’re going to attack our suspension much like we did our engine, go big or go home. Ron and I are just finishing up installing the KONI STR shocks and struts, which are actually a killer set for the price. We’re pairing those up with the SR Performance lowering springs, which should lower our Fox about an inch and a half on all 4 corners. Finally, we have the car in the air, the wheels off, we figured this would be a great time to ditch those rusty old drum brakes, in favor of these brand new disks. To dial in our new Fox’s alignment, we’ve installed the SR Performance caster/camber plates, which should get everything back into spec without issue, and offer a little bit more adjustment in future if need be. Since our car is a convertible, we are losing some of the structural rigidity which comes along with having a steel roof, to help combat this, we’ve installed the SR Performance subframe connectors, this part along with our springs, shocks and struts, should take all the laziness out of our suspension, and get it handling like a sports car should. Alright, now everything’s pretty much buttoned up, we’re going to tie it together with one of our custom Bama tunes, and see if all this hard work has paid off in really cranking up the power. We’ve already grabbed our baseline run after stage 1 when we got the car back from painting, so I’m going to hop in, bury this thing one more time, and see what the improvements are. Alright, our baseline run with our 93 GT gave us 194 horsepower, and 266 ft/lbs of torque. With all of our stage 3 modifications, the car put down an impressive 279 horsepower, and 317 ft/lbs of torque, making for a solid gain of 85 horsepower over our baseline numbers. The car did even better throughout the power band, picking up as much as 103 horsepower, and 107 ft/lbs of torque, throughout the curve. With the power finally there to back up our Cobra appearance, I think it’s time for one more cruise to see how our Fox does with all its modifications. Alright, stage 3, performance, check. The car's breathing better, the tune brought it all together, and as a result, this thing has some serious balls. Here we are, we’re in the back roads, moving along at a good clip, I’d saying the car is doing quite well, it’s pretty confident, I feel confident driving it, I don’t feel like I’m going to fly off the road, which I couldn’t have said before we did all this work. The car feels good, sounds awesome, and it’s just a whole hell of a lot more fun to drive. I know some people might question this build, you know, why a convertible, why a Fox body, well, because we wanted to, I mean that’s what car building is all about, it’s doing what you want. In this case, we’ve never seen Cobra convertible Fox bodies, so we wanted to build one, and I think we did a hell of a job. So is this the last you’ve seen of this car? I don’t know, maybe, maybe not, but in the meantime, thanks for watching stage 3 of American Muscle’s project Fox body.
... READ MORE

About BBK

BBK Mustang Performance Parts
Since 1988 BBK has been the leader in aftermarket Mustang performance parts and accessories and has grown to a top brand in Fuel Injection performance with three facilities totaling over 150,000ft where they design and build there vast product line here in the USA. Starting with products for the then new EFI Mustang back in 1988, BBK has along the way introduced many firsts to the Mustang aftermarket such as throttle bodies, cold air intakes, equal-length headers and there famous adjustable clutch quadrant kits. With over 500 product applications including dozens of products for the hot new 2011 Mustang V6 & 5.0L models BBK always delivers the best OEM quality, dyno proven performance upgrades for your favorite Mustang.
... READ MORE
OUR PRICE$249.99(each)
Market Price $299.99You Save 17% ($50.00)
Item # 56174
Ships the same business day
Email

Product Features

  • No More Pegging
  • Improves Airflow
  • 76mm Mass Air Meter Housing
  • Electronically calibrated mass air sensor included
  • Pre-calibrated for 24lb injectors
  • CNC machined billet aluminum housing
  • Fits 1986-1993 EFI 5.0 Mustangs with aftermarket cold air intake
No More Pegging. The BBK 76MM Mass Air Meter Sensor is great for modified and custom applications where the stock mass air meter "pegs" due to increased air flow.

Improves Airflow and Horsepower. The stock factory Mass Air Flow Meter (a.k.a. MAF for short) is only 55mm and flows a weak 550 cfm, where as the BBK MAF is 76mm and flows well over 700cfm to produce up to an additional 15hp at the rear wheels.

Pre-calibrate. This BBK 76mm Mass Air Meter Housing is already calibrated for use with 24lb fuel injectors saving you time and frustration.

Billet Aluminum Housing. CNC machined to exact specifications from high quality 6061 T6 billet aluminum for accuracy, this BBK Performance Mass Air Meter Housing is polished to a bright brilliant shine for impressive under hood styling.

Application. The BBK Performance 76mm Mass Air Meter is specifically designed for use in the 1986 to 1993 5.0 EFI Mustangs with 24lb fuel injectors and an aftermarket cold air inake installed. Does not work on SVT Cobra models.

Technical Note. Mustangs with a BBK 1556 Cold Air Intake installed will use BBK 80015 or 80035 Mass Air Meter calibrated for a Factory Air Box.

Installation Time:

(approx) 1 Hour

Difficulty Level:

Advanced mechanical skills required.

What's in the box?

  • (1) Mass Air Meter

What's in the box?

  • (1) Mass Air Meter
checkmark
Fitment:
  • Foxbody 86, 87, 88, 89, 90, 91, 92, 93
checkmark
Known Exceptions:
Fits EFI 5.0L V8's Only. Does not work on SVT Cobra models
