BBK Cold Air Intake (2005+ GT) - Installation Instructions

The below installation instructions work for the following products:

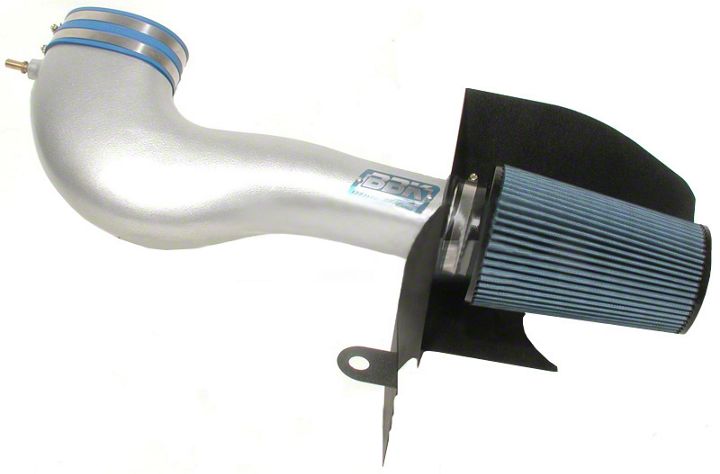

• BBK Cold Air Intake (2005+ GT)

Here at American Muscle, we're all about DIY (do it yourself). Of course, there's nothing wrong with seeking out a little bit of tech help prior to taking on an installation on your own. Our Mustang installation guides will provide valuable instructions and hopefully answer any how-to questions that you may have along the way.

(Right Click, Save Target As)

Please read through the instructions carefully before starting this project.  Take the time to get all the materials together as well as all the safety equipment.

• Ratchet
• 6 inch ratchet extension
• 8mm socket
• 10mm socket
• T-20 Star (Torx) screwdriver or socket
• Flat tip screwdriver
• Needle nose pliers
• Fender cover (optional but recommended)

Removal of the Factory Air Filter and Intake Hose

1. Disconnect the (-) negative terminal from the battery.



2. Unplug the mass air meter from the factory air filter box assembly by sliding the red colored locking clip back and then squeezing the tab on the connector while pulling it from the mass air meter.
Separate the PCV tube from the side of the factory inlet hose by twisting the green locking clip while pulling it away from the inlet hose.




3. Using a flat tip screwdriver loosen the hose clamp that holds the inlet hose to the throttle body.



4. Use the 10mm socket to remove the bolt that holds the air filter box to the driver side fenderwell.





5. Remove the factory intake hose and air filter box assembly from the vehicle by lifting the air box straight up and pulling the inlet hose away from the throttle body.



6. Use needle nose pliers or a flat tip screwdriver to lift the center of the quick fasteners holding the radiator cover in place. Once the center is lifted out, lift the outer portion out removing the fastener from the radiator cover. Once all fasteners have been removed take off the cover and set it aside.
   NOTE: There are six (6) quick fasteners, three (3) on each side





7. Use the 10mm socket to remove both bolts securing the driver’s side radiator hold down plate, lift it off the radiator top post and set it aside.

1. Place the blue coupler hose over the throttle body opening and secure it with one of the large hose clamps supplied with the kit.



2. Use the T-20 Star (Torx) bit to remove the 2 Star (Torx) screws from the mass air meter and slide the meter out of the factory inlet hose, and then install it into the BBK inlet pipe.





3. Slip the inlet pipe all the way through the shield. Place the small hose clamp on the air filter and place the air filter over the end of the inlet pipe pushing the rubber through the shield so that it sticks out the other end. This will create a more snug fit and help reduce and movement. Secure the filter to the inlet pipe by tightening the hose clamp.





4. Place the remaining hose clamp on the blue coupler hose attached to the throttle body and then place the entire inlet pipe assembly (shield included) into the vehicle. Position the round hole on the front of the shield over the top post of the radiator and slip the inlet pipe into the blue coupler hose on the throttle body. Tighten the hose clamp over the blue coupler hose securing the inlet pipe to the throttle body.



5. Place the factory air filter box mounting bolt removed in step four (4) through the hole on the bottom of the shield and tighten it to the driver’s side fenderwell using the same hole and speed clip from the factory air filter box.



6. Re-install the radiator hold down plate removed in step seven and securely tighten the bolts.



7. Starting at the front of the shield (closest to the radiator), place the rubber seal over the top edges of the shield. When you get to the corner bend you will have to bend the strip. Continue placing the seal over the top edge until you reach the rear mounting tab. Make sure that you press down firmly on the strip to fully engage its built in clamp.



8. Re-install the radiator cover making sure that you guide the front lip of it under the grill.  Replace all six (6) quick fasteners removed in step six (6).



9. Re-connect the PVC tube and mass air meter removed in step two (2).





10. Re-connect the (-) negative terminal to the battery.

Installation instructions provided by AmericanMuscle customer Paul DeSanto 4.23.09
