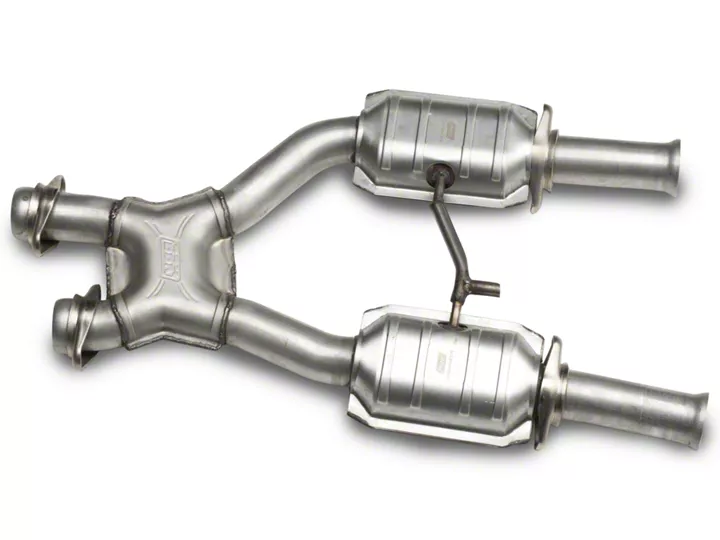

How to Install a BBK Catted Shorty X-Pipe on your 1979-1993 Mustang 5.0L

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

Installation

Installation

Step 1 After installing your new BBK full-length headers, you can now install the matching short H-pipe by simply bolting it in place of the old H-pipe assembly, *

Step 2 Using the washers and nuts supplied with your full-lengths stud kit, mount the front H-pipe flanges to the header collectors.

Step 3 Using the hardware kit supplied with the new BBK short H-pipe, attach the rear of the H-pipe to the muffler extension tubes (before tightening ensure that the tailpipes are in the correct location, if not move the H-pipe accordingly, then tighten).

Step 4 Reconnect factory air tube if installing on catalyst equipped pipes.

* It may be necessary to use some WD-40 to aid in the hanger installation. Due to the metal to rubber slide mount these units can become sticky.

This guide applies to Mustang years: 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993 and Submodels: Foxbody
