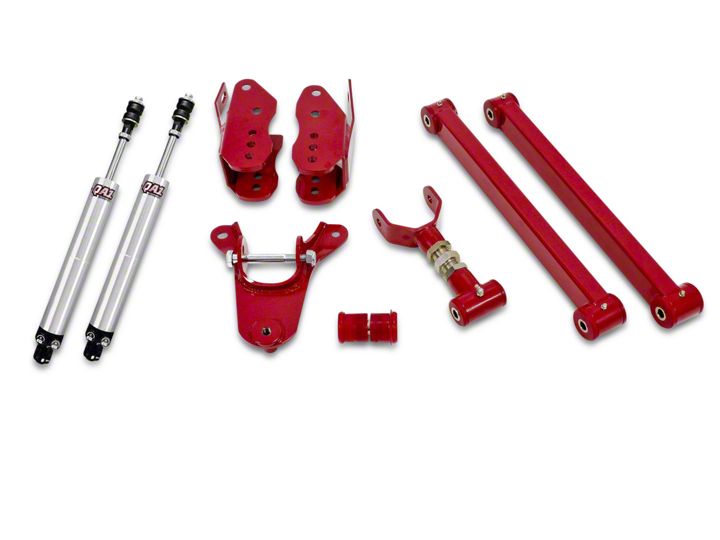

How to Install BMR Level 1 Drag Race Package - Red on your Mustang

Installation Time

6 hours

Tools Required
  • • Floor Jack
  • Snap Ring Pliers
  • • Jack Stands
  • Spanner Wrench Set (QA1 P/N T114W or T115W)
  • Wrenches SAE/Metric
  • • Socket Set (SAE and/or Metric)
  • Permatex® Anti-Seize Lubricant
American Muscle
Shop Parts in this Guide

Do Not Void Your Warranty

Permatex® Anti-Seize Lubricant should be used on coil-over threads to prevent galling. Failure to lubricate the coil-over threads with Anti-Seize prior to making ride height adjustments will cause damage to your shock absorber and will void any warranty. All ride height adjustments must be made with the vehicle weight completely unloaded from the suspension. Please call QA1 Technical Support with any questions.

Coil-Over Shock Assembly

1.    Thread the aluminum lock nut (shoulder up) and the spring seat adjuster nut (shoulder up) down to the last thread - NO FURTHER. Now is a good time to lubricate the threads of the shock with Permatex® Anti-Seize lubricant.
2.    QA1 highly recommends using Thrust Bearing Kit (QA1 P/N 7888-109) for ease of adjustment. If the thrust bearing kit is used, coat both sides of the washers with Permatex® Anti-Seize lubricant. Install the stainless steel spring seat washer, followed by the bearing and finally, the second washer.
3.    If the thrust bearing kit is not used, coat one side of the stainless steel spring seat washer with Permatex® Anti-Seize lubricant. Place the lubricated side of the washer down on the spring seat.

4.    With the piston rod fully extended, slide the spring over the shock down to the spring seat adjuster and install the spring cap. Note: xx401 and xx402 shock require 10” springs to be compressed about ½” for installation.
5.    Make all ride height changes with the car off the ground and the suspension unloaded. Apply Permatex® Anti-Seize lubricant before making any adjustments to the ride height. Once you have the ride height set, tighten the lock nut against the spring seat adjuster using spanner wrench part number T114W or T115W.
