MMD Convertible Mustang Styling Bar (05-11 Convertible) - Installation Instructions

This Mustang Parts Installation Guide Works For

MMD Convertible Styling Bar - Charcoal (05-14 GT, V6, GT500)MMD Convertible Styling Bar - Charcoal (05-14 GT, V6, GT500)
Fitment Includes:
  • - V6 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
  • - GT 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
  • - GT500 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

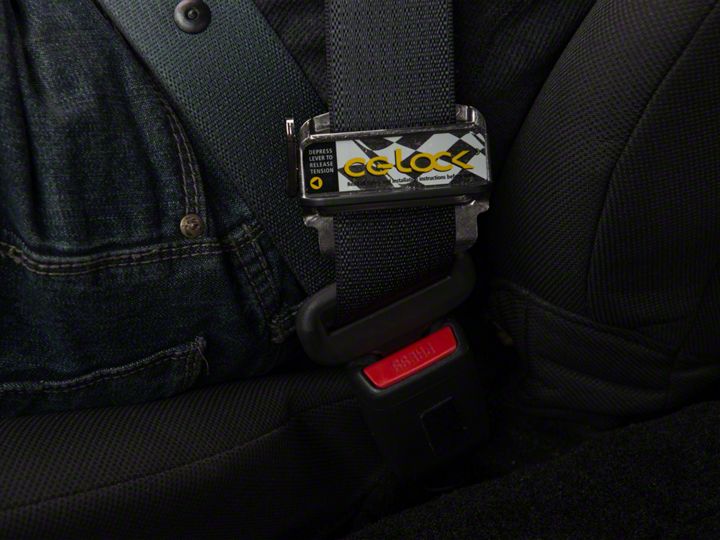

Center of Gravity Lock Lap Belt (79-14 All) CG-LOCK		DOWNLOAD PDF

Tools Required

  • 3/8” Drive Ratchet with Extension
  • 10mm Sockets
  • 13mm Sockets
  • 1/4” Allen Wrenches
  • 3/16” Allen Wrenches
  • T50 Torx Bit
  • Handheld Drill
  • 1/8” Drill Bits
  • 5/16” Drill Bits
  • 2” Hole Saw Bit
Installation Time: 4 Hrs

Installation

  1. Remove the rear lower seat by pushing release tabs and pulling up on seat bottom.

    Convertible Styling Bar 0510 1

    Convertible Styling Bar 0510 2

  2. Remove the rear upper seat by removing the two 13mm bolts toward the bottom of the seat and pulling up to release the seat from the upper brackets.

    Convertible Styling Bar 0510 3

    Convertible Styling Bar 0510 4

  3. Remove upper quarter trim panel by lifting at the shoulder strap opening to disengage retaining clips.

    Convertible Styling Bar 0510 5

  4. Remove lower quarter trim panel by carefully prying retaining clip that holds panel to body, and then pulling panel out towards front of vehicle.

    Convertible Styling Bar 0510 6

    Convertible Styling Bar 0510 7

  5. Remove seat belt guide by removing 10mm bolt and T50 Torx bolt.

    Convertible Styling Bar 0510 8

  6. Install Styling Bar brackets under factory seat belt guide bolts.
    Caution:Do not use only seat belt guide bolts to secure Styling Bar. Seat belt guide bolts are only used as locaters for the Styling Bar brackets. As show in Step 7,holes must be drilled and provided hardware must be used to properly secure Styling Bar to vehicle.

    Convertible Styling Bar 0510 9

  7. Using brackets as guides, drill 1/8” pilot holes through body sheet metal. Follow with 5/16” bit to enlarge holes to proper size.

    Convertible Styling Bar 0510 10

    Convertible Styling Bar 0510 10.5

  8. Using supplied hardware, secure Styling Bar brackets to body. Make sure to place the nuts on the inside of the body panel, and the Allen head bolts on the outside as shown.

    Convertible Styling Bar 0510 11

    Convertible Styling Bar 0510 12

  9. Place the supplied cutting template over the passenger side upper trim panel as shown. Using a 1/8” bit, drill a pilot hole in center of crosshairs, followed by drilling a hole in trim panel with a 2” hole saw. Repeat for drivers side when finished.

    Convertible Styling Bar 0510 13

    Convertible Styling Bar 0510 14

  10. Re-install interior trim panels and rear seat. Place Styling Bar in brackets and using an Allen Key, tighten set screws to secure Styling Bar.

    Convertible Styling Bar 0510 15

  11. Make sure bar is secure and take a ride to show off your new Styling Bar!

Installation instructions provided by Manufacturer
