Edelbrock E-Force Stage 1 Street Supercharger - Tuner Kit (10 GT)

Edelbrock E-Force Stage 1 Street Supercharger - Tuner Kit (10 GT)
Click to Enlarge
Email
OUR PRICE$6,465.99
Edelbrock Mustang Parts
Item # 100321
Market Price $6,999.99You Save 8% ($534.00)
Ships in 5-7 business days

Product Features

  • Stage 1 - Street System
  • Tuner Kit - custom dyno tuning required
  • 466 HP and 439 ft./lbs of TQ
  • 15"" long runners for increased low-end torque
  • Installs under the stock hood
  • 50 State Legal when used with the correct Edelbrock tune - CARB E.O.# D-215-85
  • Made in the U.S.A.
  • Fits 2010 4.6 3V GT Mustangs
More Power. The E-Force Stage 1 Street Supercharger Tuner Kit was exclusively designed by Edelbrock to provide instant, reliable and safe horsepower for a stock 4.6L Mustang with low boost for minimum stress on the engine to produce an outstanding 466 HP and 439 ft./lbs of TQ.

Tuner Kit. This Edelbrock E-Force Stage 1 Supercharger system includes all of the essential components that a racer or tuner shop would need to build a custom supercharger intended for street or race applications. A tuner kit provides the flexibility of choosing the correct pulley, cold air intake, or other performance parts for your specific setup and needs to create your very own supercharged Mustang. Custom dyno tuning is required for operation.

Unique Design. The heart of the E-Force Supercharger is the all new Eaton Gen VI TVS® Supercharger rotating assembly that has been integrated into the intake manifold for a seamless design with minimal components to eliminate the possibility of vacuum leaks. Edelbrock's unique inverted supercharger assembly is placed low in the valley allowing for 15"" long intake runners for maximizing low end torque.

Stay Cool. Edelbrock uses the largest intercooler available. Keeping the air cool is a 110 square inch high capacity air-to-water intercooler and full face low temperature heat exchanger, making it ""coolest running supercharger"" on the market today.

Breathe Easier. The E-Force Stage 1 Supercharger system breathes easy through a specially designed 85mm electronic throttle body that is matched to the most efficient and unique inlet configuration on the market today for a shorter less restrictive intake path for improved air flow.

50 State Legal. Unlike the competitors, this Edelbrock Supercharger is 50 state emissions legal under Carb E.O# D-215-85, only when used with the correct Edelbrock tune (not included).

Application. This Edelbrock E-Force Stage 1 Street Supercharger Tuner Kit is specifically designed for use on the 2010 GT Mustangs equipped with the 3V 4.6L V8 engine.

Features:
  • 466 HP and 439 ft./lbs of TQ at 5 lbs. of boost
  • 2300cc (140 cubic inch) Eaton® TVS® GEN VI rotor assembly
  • 110 square inch high capacity air-to-water intercooler
  • Unique Fully Machined 85mm Round Electronic Throttle Body
  • Unique intake manifold design with 15"" long runners for increased low-end torque
  • 100,000 mile self-contained oiling system
  • Installs under the stock hood while maintaining factory accessories
  • Made in the USA

Installation Time:

(approx) a Day

Difficulty Level:

Mechanical expertise or professional installation required.

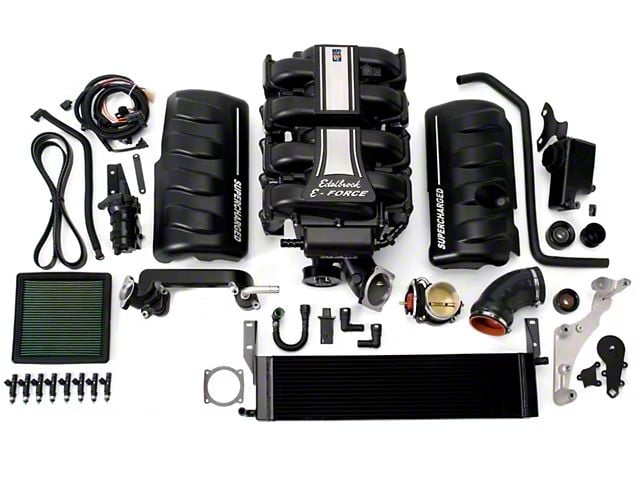

What's in the box?

  • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
  • 85mm Electronic Throttle Body
  • Cast Aluminum Alternator/Idler Bracket
  • Steel Belt Tensioner Brace
  • Cast Aluminum Water Crossover
  • Large 110 Sq-in Intercooler
  • Full Face Low Temp. Heat Exchanger for Intercooler System
  • Goodyear Gatorback Serpentine Belt
  • Electric Intercooler Water Pump
  • Intercooler Recovery Tank
  • Custom Molded Intercooler Hoses
  • Fuel Injectors (41lb/hr)
  • 3.875"" Supercharger Pulley
  • Steel Idler Pulleys With Heavy Duty High Speed Bearings
  • High Flow Panel Air Filter for Stock Airbox
  • Injection Molded, High Flow, Air Box Cover
  • Edelbrock Aluminum Engine Covers
  • Plug & Play, Electrical Harness & Installation Hardware

What's in the box?

  • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
  • 85mm Electronic Throttle Body
  • Cast Aluminum Alternator/Idler Bracket
  • Steel Belt Tensioner Brace
  • Cast Aluminum Water Crossover
  • Large 110 Sq-in Intercooler
  • Full Face Low Temp. Heat Exchanger for Intercooler System
  • Goodyear Gatorback Serpentine Belt
  • Electric Intercooler Water Pump
  • Intercooler Recovery Tank
  • Custom Molded Intercooler Hoses
  • Fuel Injectors (41lb/hr)
  • 3.875"" Supercharger Pulley
  • Steel Idler Pulleys With Heavy Duty High Speed Bearings
  • High Flow Panel Air Filter for Stock Airbox
  • Injection Molded, High Flow, Air Box Cover
  • Edelbrock Aluminum Engine Covers
  • Plug & Play, Electrical Harness & Installation Hardware
checkmark
Fitment:
  • GT 10

About Edelbrock

Edelbrock Mustang Parts
Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nation’s premier designers, manufacturers and distributors of performance replacement parts for the automotive and motorcycle aftermarkets. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses six locations in Southern California totaling more than 500,000 square feet.
