This Mustang Parts Installation Guide Works For
Installation Time: 2 Hours
!!! PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION !!!

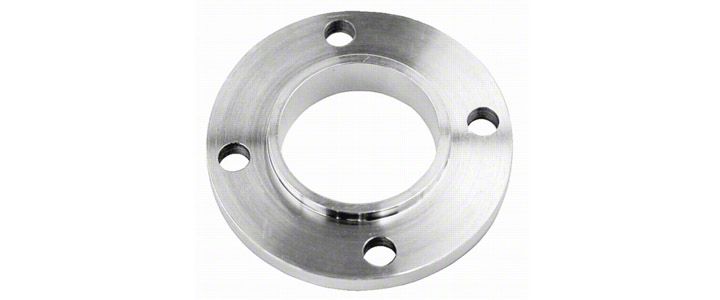

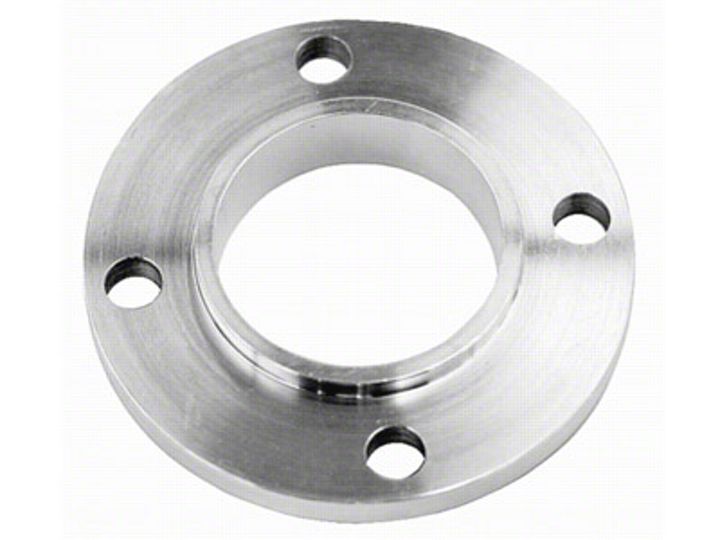

Installation of the crank pulley spacer will require longer bolts. Use Grade 5 or better bolts with blue Loctite thread sealer (or equivalent).
Check pulley sheave alignment between crank and accessory pulleys with a straight edge. Production tolerances and small variations in pulley sheave offset over the years may require some trimming of the spacer to achieve good alignment with the existing pulleys.
If the spacer is much too short or too long, you need a different spacer. Currently available spacers from Ford Racing are as follows:
M-851 0-6351 .950"
M-851 0-0351 .909"
The accessory drive belt can now be installed using standard procedures.
If an M-8511-A351 (PS only) or M-8511-6351 (AC & PS) bracket is also being installed, a new belt length will have to be determined at this time. With the new bracket installed and sheave alignment checked, the proper belt length can be determined by using a flexible tape measure. A tailor's tape measure works best. Wrap the tape measure around the crank and accessory pulleys following the path the production belt used. Remember to have a helper hold the tensioner at the midpoint of its travel when measuring for belt length. Serpentine accessory drive belts are available from Motorcraft and other sources in a large variety of lengths. On installation, make sure the belt has tension and tracks properly on all pulleys as the engine is rotated by hand.
