How to Install a Ignition Starter Switch on Your 1987-1993 Mustang

This Mustang Parts Installation Guide Works For

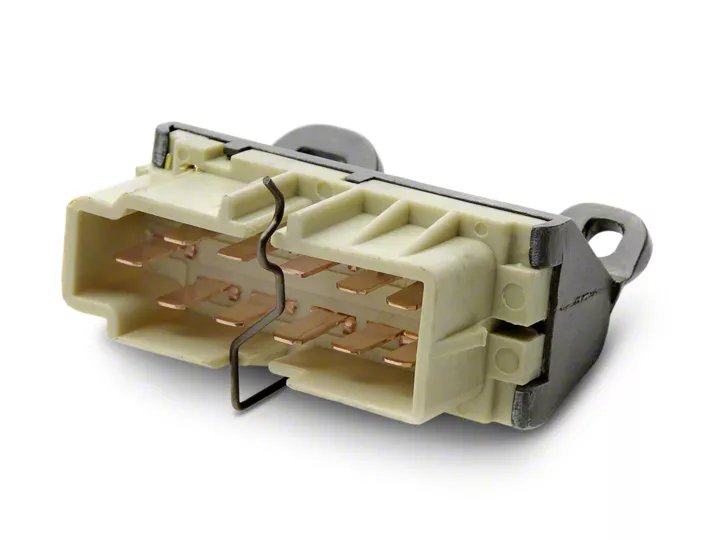

Ignition Starter Switch (87-93 All)DOWNLOAD PDF

Tools Required

  • Phillips Screw driver
  • Flathead Screwdriver
  • Pliers/vise grip
  • New break off bolts or torque bolts (make sure to get new ones none came with switch)
  • Allen wrench is required if torque bolts are used
Installation Time: 1 Hour

Installation

  1. Remove negative wire off of battery.
  2. Remove the (5) Philips head screws from the steering column cover (2) on left and (3) on right.
  3. ignition-starter-switch-87-93-all

  4. Move the steering wheel up to remove the bottom half of the column cover and move the steering wheel down to help remove the top half.

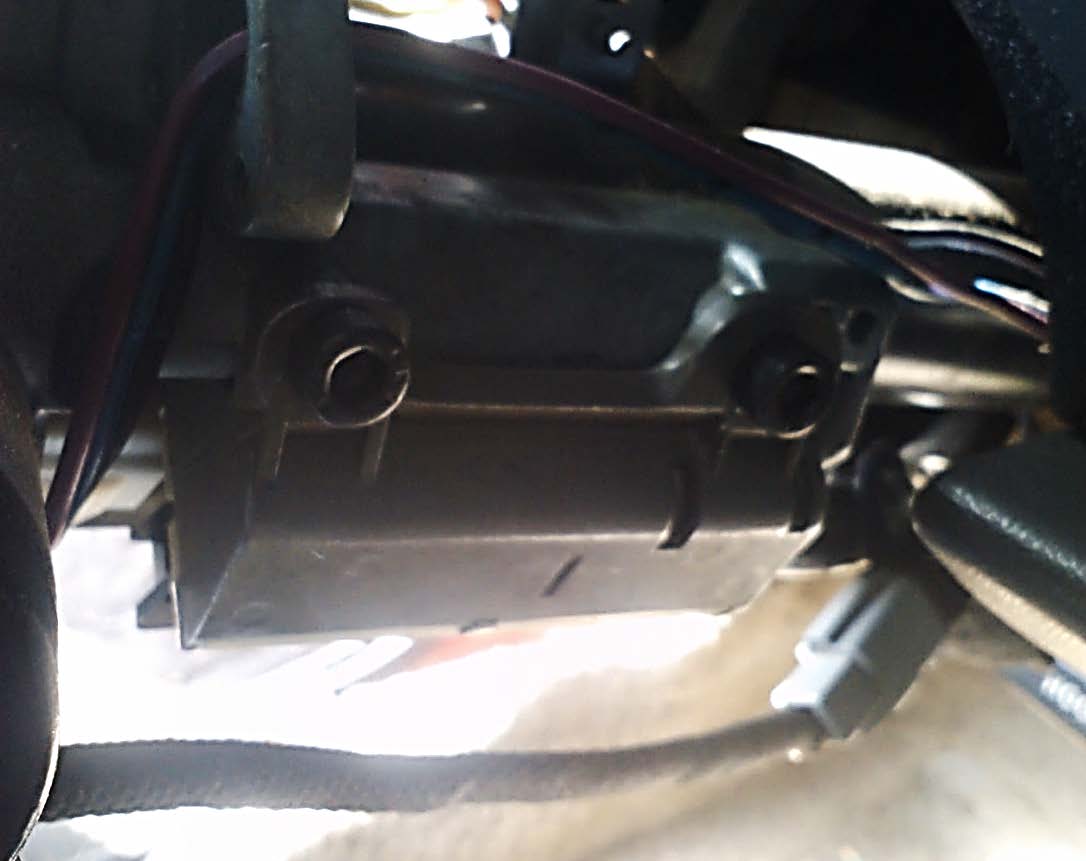

  5. The ignition starter switch is located in front of the ignition key switch on the right side of the column.
  6. ignition-starter-switch-87-93-all

  7. Using a flat screwdriver, remove the wire connector there are (2) clips on each end.

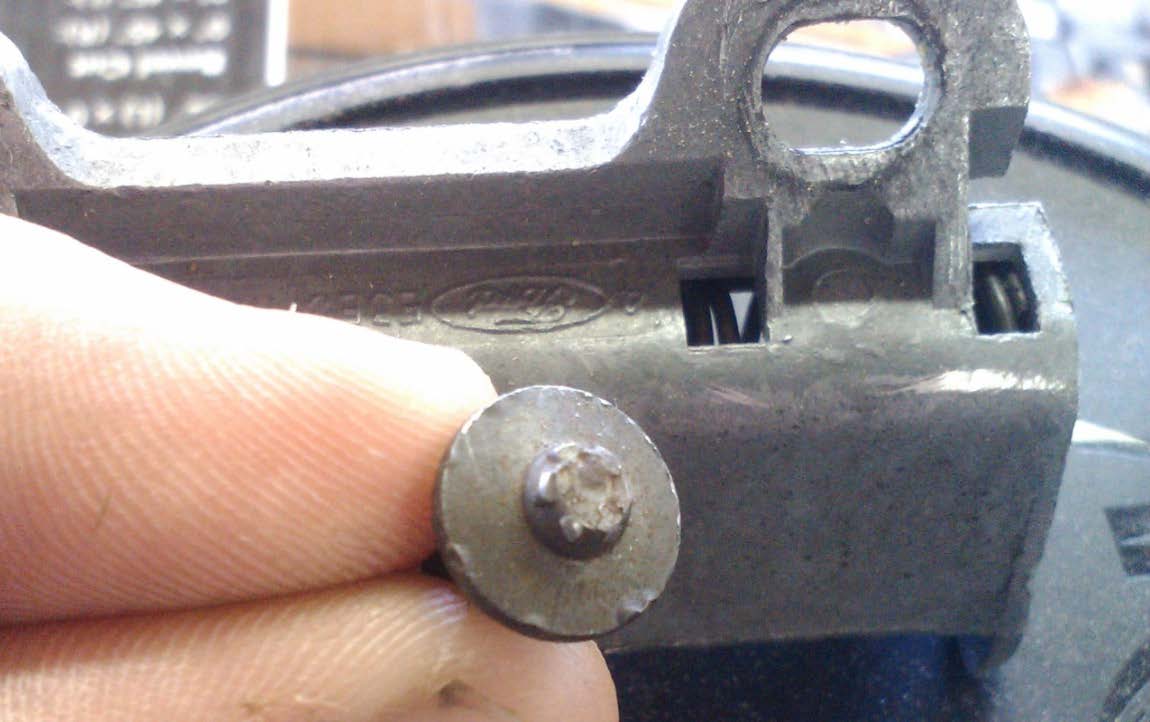

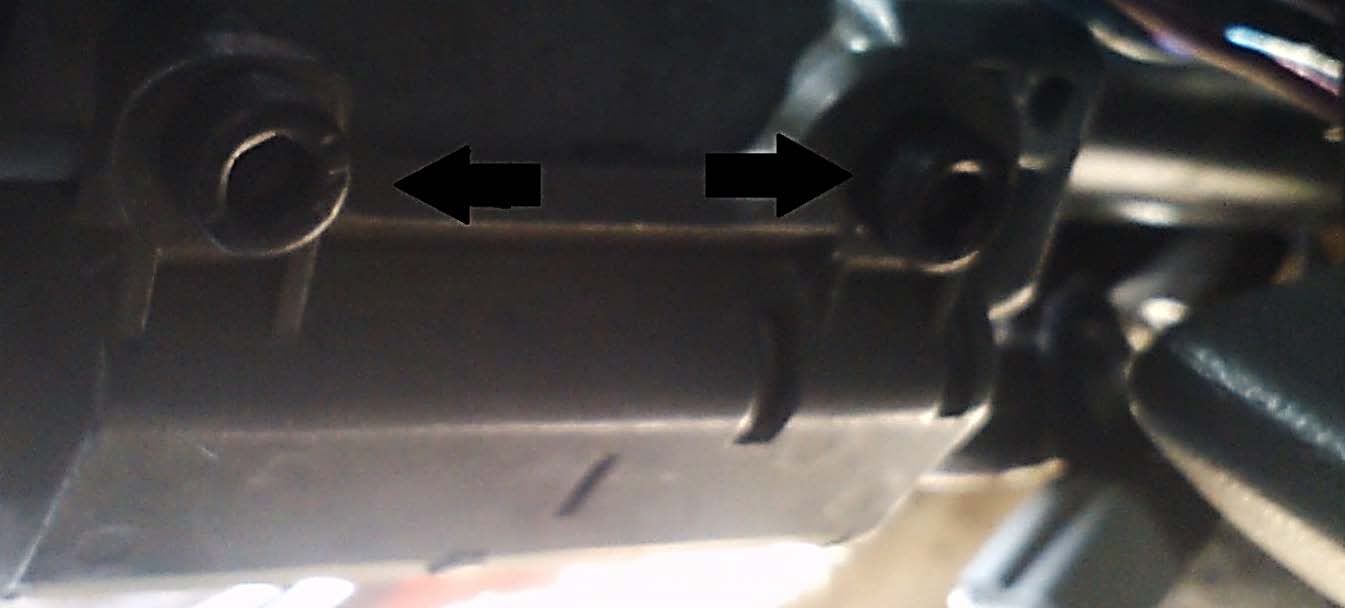

  8. Using pliers or vise grip, unscrew the (2) break off bolts.
  9. ignition-starter-switch-87-93-all

  10. Use this time to look over all wires to make sure no wires have been cut or pinched. The single wire that hangs under the ignition switch is the door dinger, which may become lose.
  11. ignition-starter-switch-87-93-all

  12. Place the new switch in place, making sure it sets all the way in.
  13. Use new break off bolts to attach switch. NOTE: Go to a hardware store and bring the old bolts in to match threads and size. (6mm X 10 was stock on my car) break off bolts or torque bolts will work.
  14. ignition-starter-switch-87-93-all

  15. Reattach the wire harness to the new switch.
  16. Reattach the negative wire on the battery and start the car to make sure everything is working.

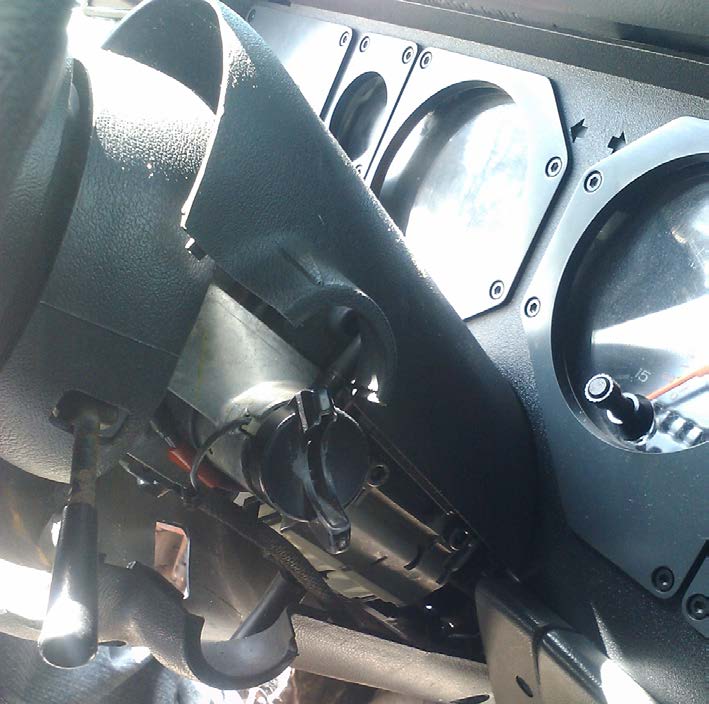

  17. After verification the switch is working, screw the steering column cover back on.
  18. ignition-starter-switch-87-93-all

  19. Put the top cover on first by tilting the steering wheel down.
  20. Tilt the steering wheel up and put the bottom half of the steering column cover on and put the (5) screws back in.

Installation Instructions written by AmericanMuscle customer Nicholas Herard 4.11.12
