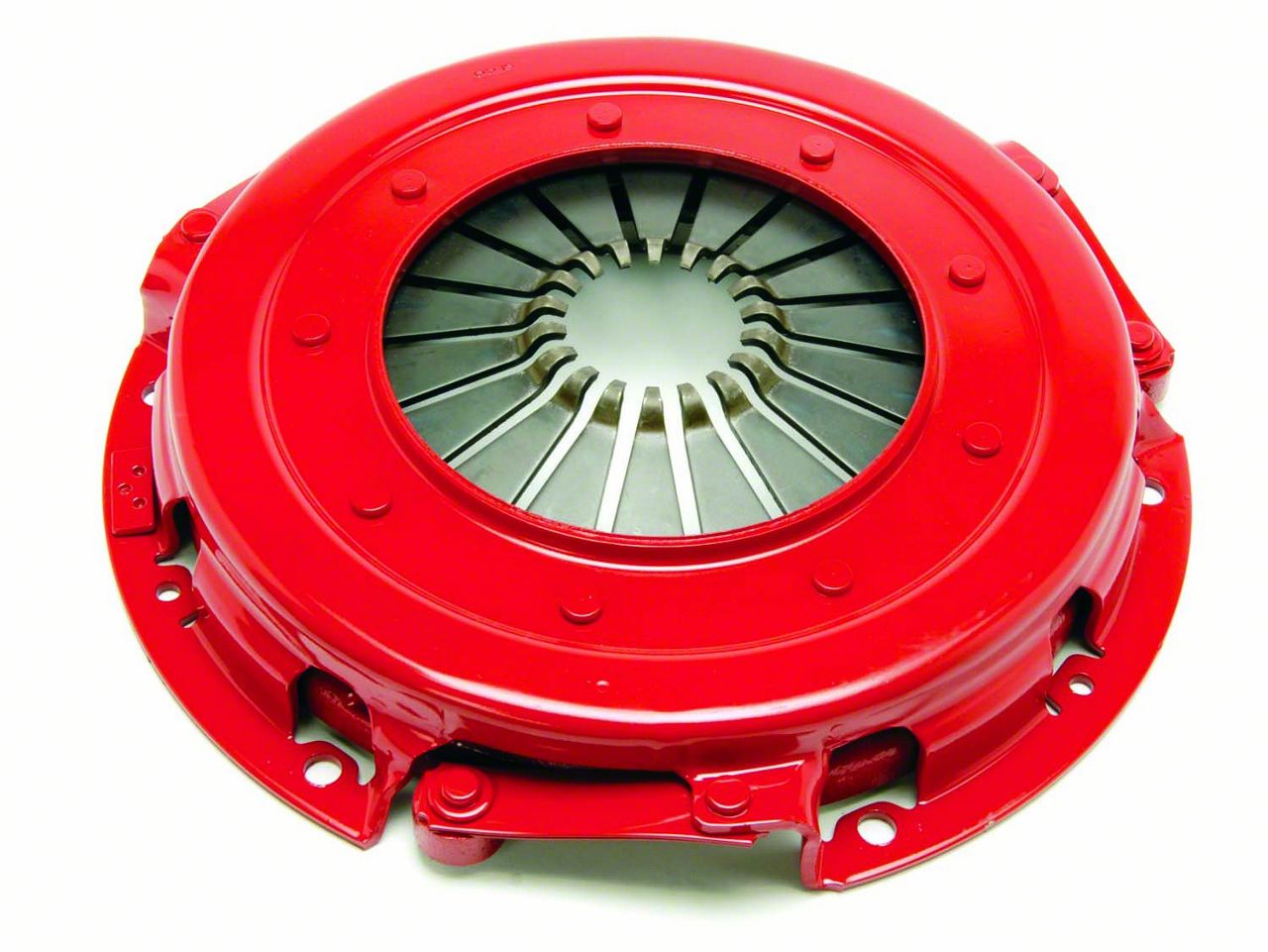

McLeod Pressure Plate; 10.50-Inch (86-01.5 V8 Mustang)

Item 401292
Verify parts fit and get product recommendations.
Mustang Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$215.00 (each)

FREE Shipping Market Price $247.25 You Save 13% ($32.25) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Diaphragm Style Pressure Plate
      • 10.5-Inch Diaphragm
      • 11-3/8-Inch Bolt Circle
      • 8mm Hole Pattern with Dowel Pin Holes
      • Ductile Iron Construction
      • Bold Red Powder Coat Finish
      • 2,400 Pound Plate Load
      • Does Not Require Counter Weights
      • Moderate-Level Installation
      • Hardware Not Included
      • 90-Day Warranty
      • Fits 1986-2001.5 Ford Mustang V8s

      Description

      Maintains Clutch Pressure. If you are replacing your clutch, you should also replace your pressure plate to ensure proper clamping force. Not doing so could cause damage to your Mustang’s new clutch. Also, if your current pressure plate is failing, failure to replace could cause damage to your clutching system. This McLeod Pressure Plate features a 10.5-inch diaphragm with an 11-3/8-inch bolt circle. The 8mm hole pattern included dowel pin holes.

      Better than Cast Iron. McLeod constructs this pressure plate from ductile iron that is finished in a bold red powder coat. Pressure plates that are constructed from ductile iron are preferable than those constructed from cast iron. Ductile iron bends without breaking unlike cast iron that is brittle in nature and will break when bent. This pressure plate does not require counter weights either like some of the others do. It is rated for a 2,400-pound plate load.

      Installation Information. This installation does require at least a moderate mechanical ability. Hardware is not included and in most cases, you can reuse your stock hardware if it has not been damaged.

      McLeod’s Warranty. Your new pressure plate is covered by McLeod’s limited 90-day warranty. This warranty covers defects in materials and workmanship that occur during normal use when the pressure plate has been properly installed.

      Application. The 10.5-inch McLeod Pressure Plate fits 1986 to 2001.5 Ford Mustang V8 models.

      Fitment:

      Details

      McLeod 360048

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Pressure Plate
      4.6

      Reviews of McLeod Drivetrain Products (500+)

      Brand Image

      Reviews of McLeod Drivetrain products have an average rating of 4.6 out of 5

        Questions & Answers

        10 More Questions

        Will It Fit My Mustang

        • Bullitt - 01
        • Cobra - 93, 94, 95, 96, 97, 98, 99, 01
        • Cobra R - 93, 95
        • GT - 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01
        • LX - 87, 88, 89, 90, 91, 92, 93
        • Other - 86
