How to Install a SR Performance Throttle Body Spacer on Your 2005-2010 Mustang GT

Installation Time

1 hours

Tools Required
  • Flathead screwdriver
  • 8 mm socket wrench
  • 10 mm socket wrench (with extension)
American Muscle
Shop Parts in this Guide

Installation

Installation

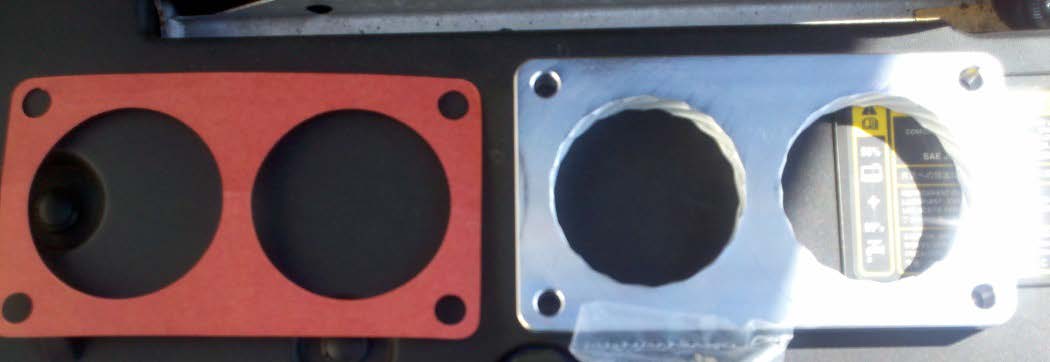

What’s In Box:

  • SR Performance Throttle Body Spacer
  • Gasket
  • Four bolts and washers


Installation Instructions:

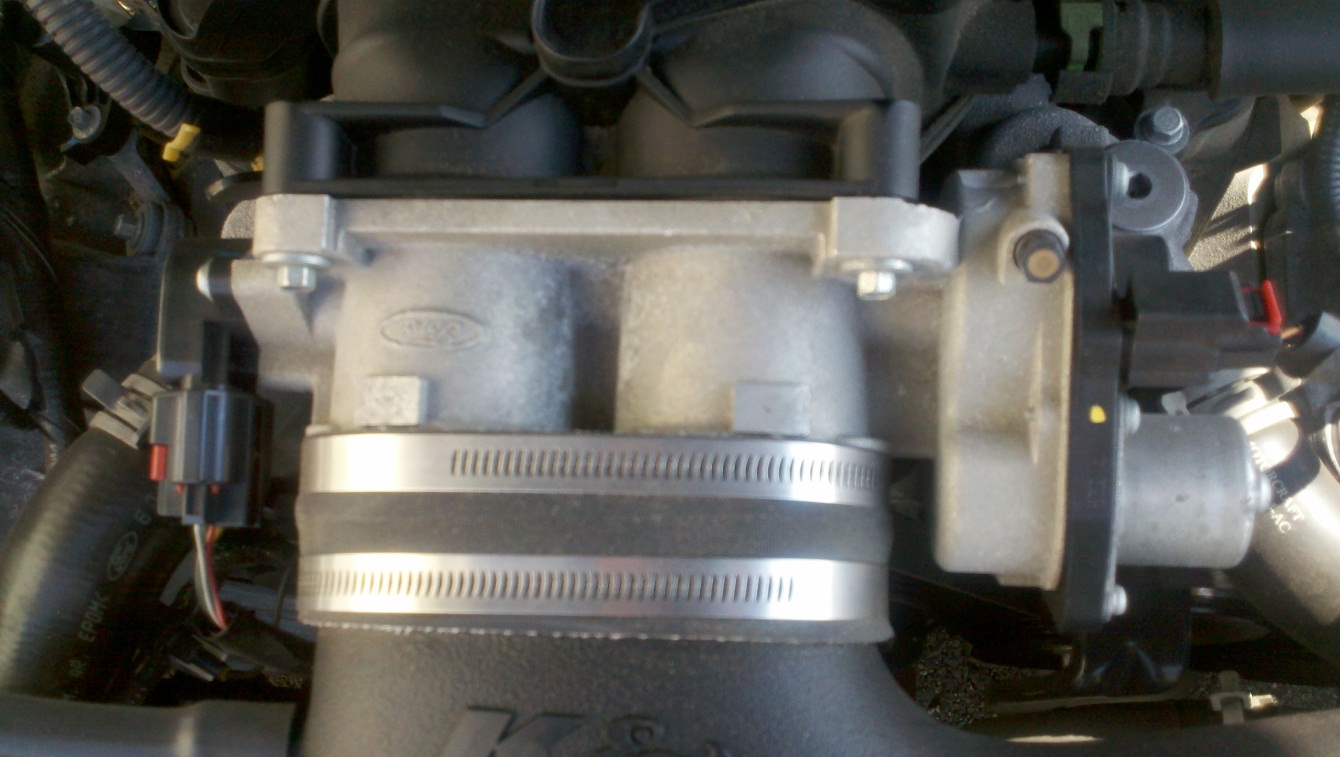

1. Make sure engine is cool before handling. Start by loosening clamps where the intake meets the throttle body.

2. Use the 8mm wrench to remove the top (2) bolts from the throttle body.

3. Use the 10mm wrench for the bottom (2) bolts from the front of the throttle body. Without the extension it is almost impossible to unscrew the bottom bolts.

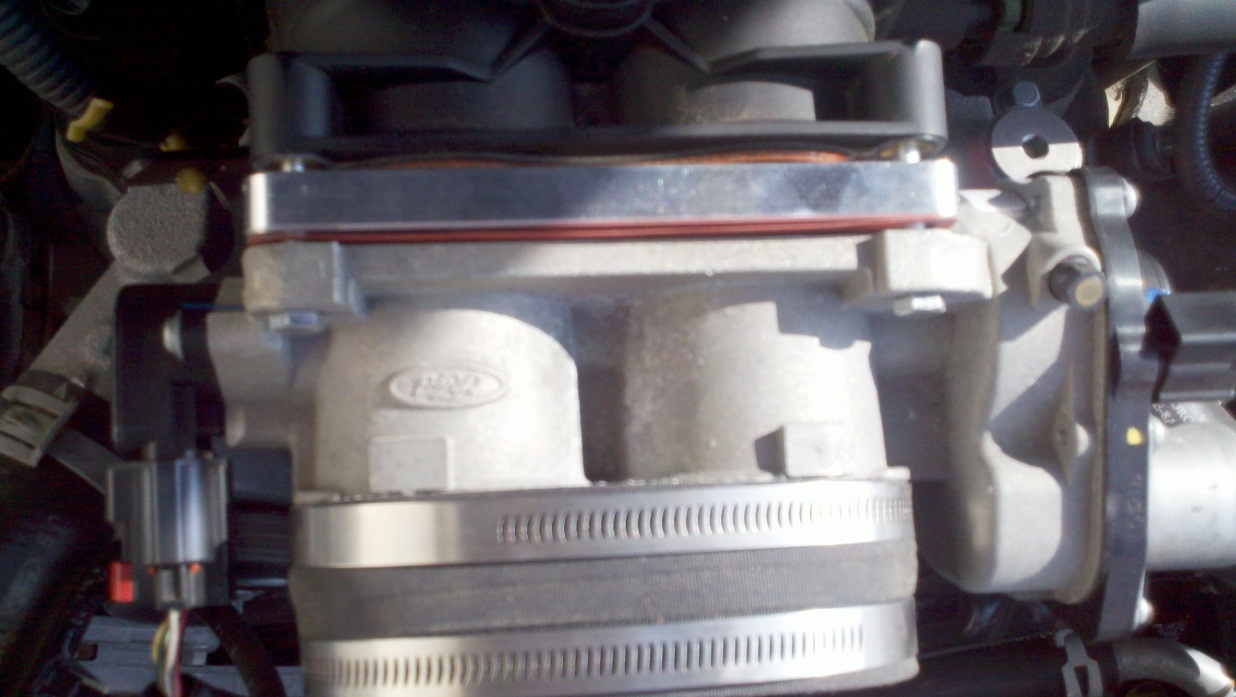

4. Take throttle body off the intake manifold and hold in one hand. With other hand, place in order: Throttle Body, Gasket, Spacer, and Intake Manifold. Screw in all (4) bolts and washers using the 10mm wrench. (Here is a picture before tightening bolts completely).


5. Reattach Intake tube and filter and tighten clamps to a secure fit.

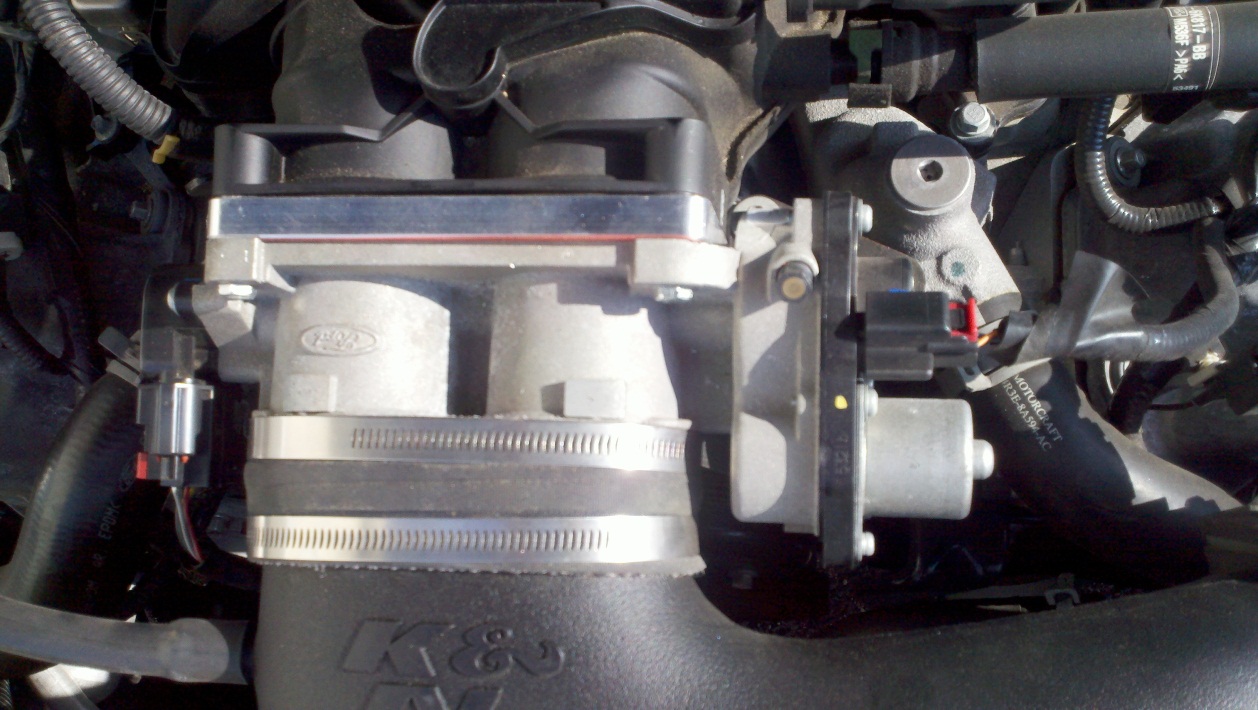

6. Installation is complete!


Installation instructions provided by American Muscle customer Sam Eriske 4.24.12

This guide applies to Mustang years: 2005, 2006, 2007, 2008, 2009, 2010 and Submodels: GT
