How to Install a Mud Flaps - Rear on your 1999-2004 Mustang

This Mustang Parts Installation Guide Works For

Mud Flaps - Rear (99-04 All)DOWNLOAD PDF

Tools Required

Installation Time: 20 Minutes

Installation

mud-flaps-rear-99-04-all

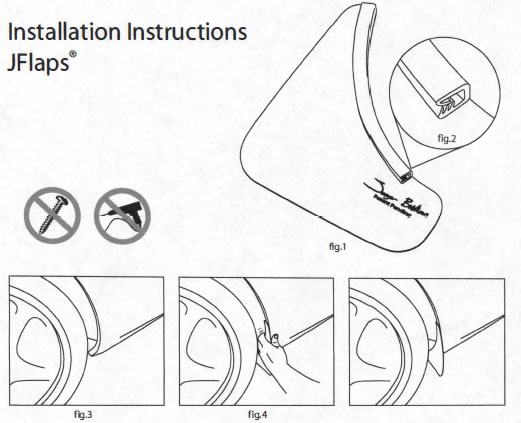

Be sure that the JFlaps (fig. 1 ) and the fender edge (fig.3) where they will be mounted, are clean and dry. Beginning at the bottom of the JFlap, position the u channel (fig.2) over the fender edge and carefully push it on along its entire length (figA). After checking for good alignment on the vehicle, push firmly along the u channels entire length for secure fit.

If the u channel feels as though it fits too tightly or loosely the width of the u channel may be adjusted by hand, by removing the JFlap and gently widening or squeezing the u channel for better fit.

Removal: Beginning at the bottom of the JFlap, gently pull the u channel off the fender flange. Clean the JFlaps using mild soap and water, rinse and dry thoroughly. For more information please visit: jflaps.com
