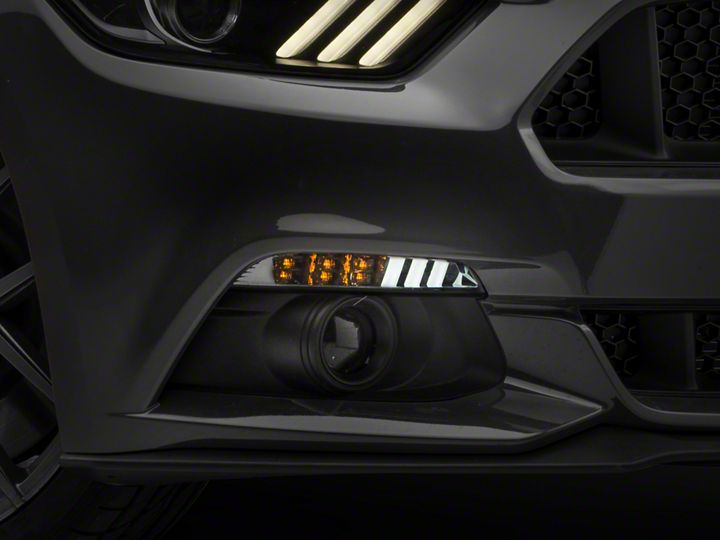

Raxiom Smoked LED Turn Signals (15-17 All)

Installation Time

1 hours

American Muscle
Shop Parts in this Guide

Step 1

Remvoe the 8 clips securing the plastic radiator cover to the radiator support and remove it from the vehicle.


Step 2

Remove the 8 bolts securing the bumper cover to the radiator support.

Step 3

Support the front of the car so you can access the bumper splash shield. **Note: there are two versions of the splash shield. Bother are attached to similar locations.


Step 4

On each side of the bumper, remove the plastic clips holding the fender liner to the bumper.


Step 6

With the splash shield pulled back, you can access the plugs for the turn signals and fog lights. Then remove bumper.


Step 7

Using a 7mm socket, remove the screws holding the turn signal bracket to the bumper. Then gently pry the bracket from the bumper.


Step 8

Remove the 3 7mm screws holding the turn signal to the bracket. Then remove the turn signal.


Step 9

Using the existing hardware, reinsall the new Raxiom Smoked Signal. **Note: Be careful not to pinch any wires. Reinsall in reverse order.


Optional

Lights wil come wired to sequence with the turn signals. If you prefer them not to sequence, see Disabling Sequencing Turn Signal in the next step.


Optional Disabling Sequencing Turn Signal

Simply unplug the red, lue, and black wiring labeled (SEP) and plug in the red, yellow, and black plug labeled (Norm).
