How To Install Mustang Rear Brake Caliper Bolts on Your 2005-2011 Mustang

Installation Time

25 minutes

Tools Required
  • Jack
  • Jack Stands
  • Tire Wrench
  • New Caliper Bolts
  • New Caliper Slide Pins
  • Ratchet 3/8 inch
  • 13mm Socket
American Muscle
Shop Parts in this Guide

Installation instructions:

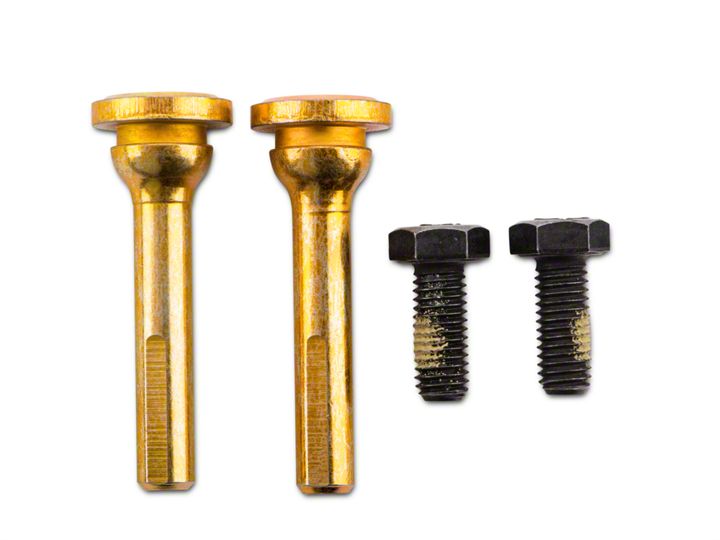

1. Gather materials necessary for installation. (Ratchet and socket not pictured)


2. Break your lug nuts loose


3. Jack your vehicle up


4. Place jack stand under your car for support


5. Proceed to take your lug nuts off your wheel


6. Take your tires off your car.


7. OPTIONAL: You can place your tires under you’re car while working for added protection in case of jack stand failure


8. Using a 13mm socket, remove the two bolts that hold in the top portion of the caliper


9. Take the old bushing off of the old slide pins and transfer them to the new slide pins


10. Now is a good time to coat the new slide pins with the left of lube from the old slide pins


11. Insert the new slide pins along with the bushings into the top caliper bracket. NOTE: You must correctly align the flat side of the new slide pins with the caliper bracket.


12. Insert the new 13mm caliper bolts


13. Tighten down the new 13mm caliper bolts


14. Check the caliper to ensure proper fitment and correct installation


15. Put your wheels back on your car


16. Install your lug nuts by hand


17. Remove your jack stands


18. Lower your vehicle to the ground


19. Tighten your lug nuts with your tire iron



20. Enjoy your new set of Rear Brake Caliper Bolts

Installation Instructions written by AmericanMuscle customer Laurence Arroyo 7.24.2014
