How to Install a Tokico D-Spec Adjustable Strut & Shock Kit on your 1994-2004 Mustang

This Mustang Parts Installation Guide Works For

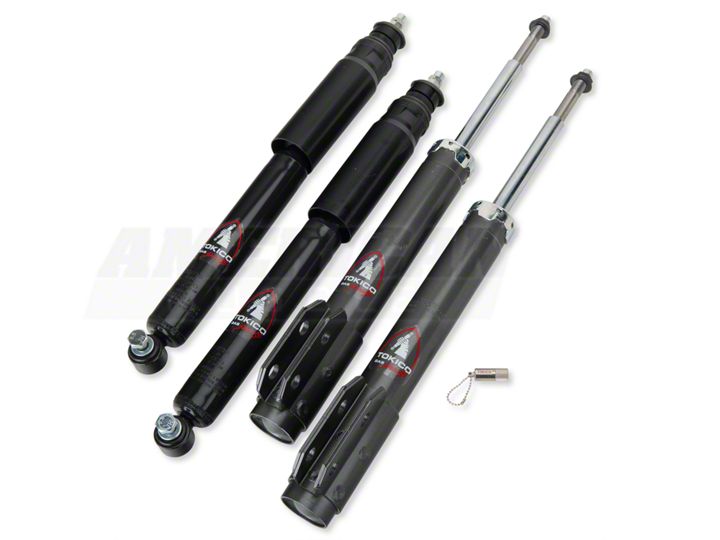

Tokico D-Spec Adjustable Strut & Shock Kit (94-04 GT, V6, Mach 1; 94-98 Cobra)Tokico D-Spec Adjustable Strut & Shock Kit (94-04 GT, V6, Mach 1; 94-98 Cobra) DSP-4||TO00101||DB3140||DE3723
Fitment Includes:
  • - V6 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
  • - GT 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
  • - Cobra 1994, 1995, 1996, 1997, 1998
  • - Mach 1 2003, 2004
  • - Bullitt 2001
DOWNLOAD PDF

Tools Required

Installation Time: 2 Hours

Installation

Parts list

  • Front shocks/struts - 2
  • Adjuster tool - 1
  • Front piston rod (shaft) top nuts - 2
  • Rear shocks.struts - 2
  • Rear piston rod (shaft) nuts - 2
  • Protection caps - 4
  • Users manual- 1

Shocks and strUts should be removed/installed according to guidelines in the car's factory manual except for torque settings for the piston rod top nut.

CAUTION - The D-Spec adjustable shock/strut uses a hollow piston rod for the adjusting rod.

As a result impact wrenches should never be used on the piston rod top nut. Torque settings for the D-Spcc shock and strut piston rod top nut are as follows:

Shock absorber (12mm piston rod) 25-321b1ft

Struts (4mm piston rod) 38-49Iblft.

Using an impact wrench or too much torque can break the top of the piston rod.

ADJUSTMENT - The D-Spec units come from the factory at or near the Firm or Hard Setting. DOUble-check the settings front and rear by turning the adjuster clockwise until it is snug. Then turn the adjuster 5 complete revolutions in a counter clockwise direction. This is a good starting point.

tokico-d-spec-adjustable-strut-shock-kit-94-04-gt-v6-mach-1-94-98-cobra

Caution - Because of the wide adjustment range, experimenting with various adjustments should only be done after reading the D-spec user manual. The manual explains how various suspension components work together and the possible effects of various D-Spec adjustments.

INSTALLERS - Please install protection caps to keep dirt and debris our of the adjuster hole.

Also please be certain that the D-Spec users manual is given to the vehicle owner and driver with the caution to read the manual.
