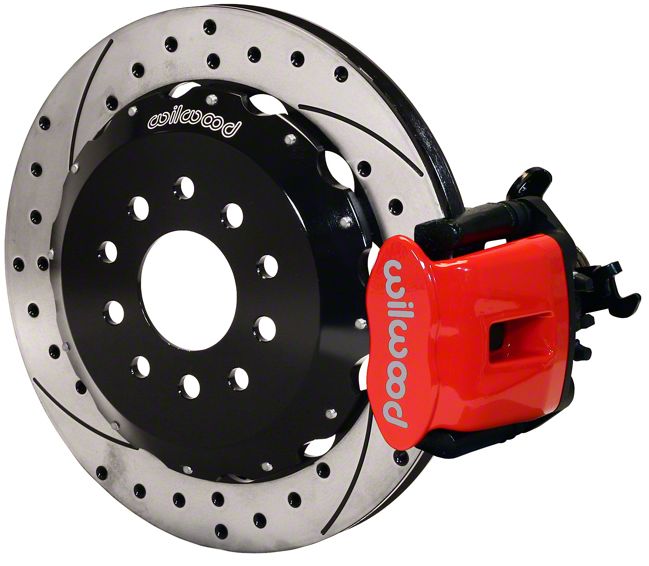

Wilwood Rear Brake Kit (94-04 GT, V6)

Wilwood Rear Brake Kit (94-04 GT, V6)
Click to Enlarge

About Wilwood

Wilwood Mustang Brake Kits
Bring your Pony to a controlled stop every time by upgrading to a Wilwood Engineering Mustang Big Brake Kit. Founded in 1977 Wilwood Engineering has ...... READ MORE
OUR PRICE$1,339.99
Market Price $1,819.99You Save 26% ($480.00)
Item # 48303
Ships in 5-7 business days
Free Shipping
Email

Product Features

  • Increased braking capacity
  • Bolt-on rear brake kit
  • 1-piston calipers
  • Red powdercoat calipers
  • 12.88" drilled and slotted rotors
  • Fits 1994-2004 GT and V6 Mustangs
Unsurpassed Braking Capacity. Give your SN95 or New Edge Mustang the ability to stop on a dime and give nine cents change by upgrading your rear brakes to the massive calipers included in the Wilwood Rear Brake Kit. The Wilwood Big Brake Kit will give you the ability to bring even the most powerful Mustang to a controlled stop every time.

Complete Kit. This Wilwood Mustang Rear Brake upgrade kit includes 1-piston calipers, high performance BP-10 Smart Pads, two piece 12.88" black electro coat SRP drilled and slotted iron rotors.

Application. Designed for 1994 to 2004 V6 and GT models. This Wilwood rear brake upgrade kit requires the use of 17" or larger wheels for proper clearance. Does not fit Bullitt, Mach 1 or SVT Cobra models

Mustang Fitment: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 Details >>
Specifications:
  • Fitment: 1994-2004 GT and V6 Mustangs Rear Only
  • Wilwood 1 piston brake calipers
  • Caliper Color: Red
  • 12.88" Drilled and Slotted brake rotors
  • This kit requires the use of 17" or larger rims for clearance.

Installation Time:

(approx) 2 Hours

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

  • (2) Bracket, Caliper Mounting
  • (4) Bolt, 7/16-4 x 1.5 Long
  • (4) Washer, .477 I.D. x .922 O.D. x .063 Thick
  • (4) Sleeve, .437 I.D. x .479 O.D. X .500 Long
  • (4) Shim, .016 Thick
  • (2) Rotor, SV-GT 1.00” Thk x 12.88” Dia, 12 x 8.75” Bolt Circle (one each, right and left)
  • (2) Rotor, SRP Drilled and Slotted (one each, right and left)
  • (2) Hat, 5 x 4.50/4.75, .875 Offset, 12 x 8.75 Bolt Circle
  • (24) Washer, .265 I.D. x .500 O.D. x .063 Thick
  • (24) Bolt, 1/4-20 x 1.00 Long, 12 Point
  • (2) Caliper, CPB 41mm (one each, right and left)
  • (4) Nut, 3/8-24, Self-Locking 12 Point
  • (4) Washer, .391 I.D. x .625 O.D. x .063 Thick
  • (4) Stud, 3/8-16 x 3/8-24 x 2.50 long (pre installed in bracket)
  • (8) Shim, .035 Thick
  • (1) Pad, BP-10, Axle Set
  • (12) Shim, .030 Thick

Manufacturer Installation Guides:

How to Install Wilwood Rear Brake Kit on your 1999-2004 Mustang GT and V6

Customer Submitted Installation Guides:

No guide available for this part yet. Find out how to get up to $200 for writing an install guide!

What's in the box?

  • (2) Bracket, Caliper Mounting
  • (4) Bolt, 7/16-4 x 1.5 Long
  • (4) Washer, .477 I.D. x .922 O.D. x .063 Thick
  • (4) Sleeve, .437 I.D. x .479 O.D. X .500 Long
  • (4) Shim, .016 Thick
  • (2) Rotor, SV-GT 1.00” Thk x 12.88” Dia, 12 x 8.75” Bolt Circle (one each, right and left)
  • (2) Rotor, SRP Drilled and Slotted (one each, right and left)
  • (2) Hat, 5 x 4.50/4.75, .875 Offset, 12 x 8.75 Bolt Circle
  • (24) Washer, .265 I.D. x .500 O.D. x .063 Thick
  • (24) Bolt, 1/4-20 x 1.00 Long, 12 Point
  • (2) Caliper, CPB 41mm (one each, right and left)
  • (4) Nut, 3/8-24, Self-Locking 12 Point
  • (4) Washer, .391 I.D. x .625 O.D. x .063 Thick
  • (4) Stud, 3/8-16 x 3/8-24 x 2.50 long (pre installed in bracket)
  • (8) Shim, .035 Thick
  • (1) Pad, BP-10, Axle Set
  • (12) Shim, .030 Thick
checkmark
Fitment:
  • V6 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
  • GT 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
checkmark
Known Exceptions:
Does not fit Bullitt, Mach 1 or SVT Cobra models
