How to install a Billet Shorty Antenna on your 2010-2012 Mustang

This Mustang Parts Installation Guide Works For

Billet Shorty Antenna - 4 inch (10-14 All)DOWNLOAD PDF

Tools Required

Installation Time: (approx) 30 Minutes

Installation

2010 Ford Mustang Billet Antenna Instructions

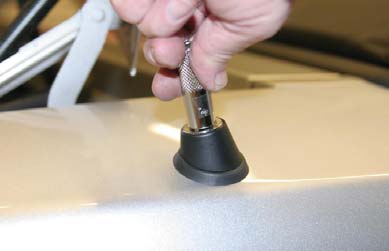

  1. Grasp antenna mast firmly and unscrew from antenna base. Figure 1
  2. billet-shorty-antenna-4-inch-install

  3. Using Antenna Tool (Scott Drake Part No. T-67 or equivalent), remove retaining nut from antenna base cover*. Figure 2 Then remove base cover. Figure 3
  4. billet-shorty-antenna-4-inch-install billet-shorty-antenna-4-inch-install

  5. Remove rubber base cover seal from stock antenna base cover and install on billet base cover, making sure it is properly seated. Place billet antenna base cover over antenna base and install retaining nut*, making sure base cover is aligned properly . Figures 4, 5, & 6
  6. DO NOT OVER TIGHTEN OR BODY DAMAGE MAY OCCUR!

    billet-shorty-antenna-4-inch-install billet-shorty-antenna-4-inch-install billet-shorty-antenna-4-inch-install

  7. Thread in antenna mast**
  8. *It may be necessary to wrap Antenna Tool with a rag and clamp on a pair of locking pliers on the tool to get the necessary leverage to remove and install the retaining nut. Again it is important not to over tighten the nut.

    **To ensure mast does not come loose it is recommended that the shorty antenna mast is wrapped with a rag and locking pliers are used to tighten mast into antenna base.

    Mast needs to be only tight enough to prevent accidental loosening.

    DO NOT OVER TIGHTEN.

    billet-shorty-antenna-4-inch-install billet-shorty-antenna-4-inch-install
