How to Install an AeroForce Fuel/Oil Pressure Sensor Kit on Your 1996-2012 Mustang

This Mustang Parts Installation Guide Works For

Aeroforce Oil Pressure Sensor Kit (96-14 All)DOWNLOAD PDF

Tools Required

Installation Time: 1 Hour

Installation

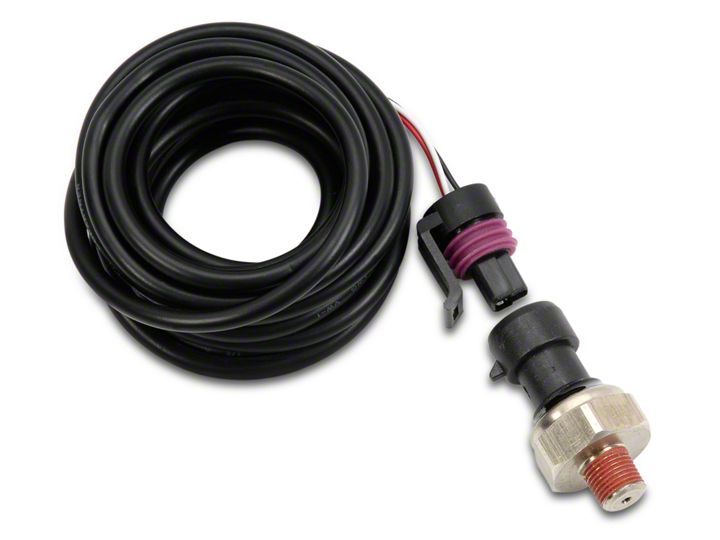

Your kit contains a 150 psig sensor with connector/pigtail. The sensor has a male 1/8”NPT fitting.

Connections: The black wire of the pigtail goes to ground, red to +5v, and white is the output. Do not connect 12v to this sensor, it will destroy it!

If you disconnect the gauge from the OBD2 port, disconnect the connector to this sensor first. This can damage the sensor due the input of the gauge losing its ground reference.

Specifications:
  • +/- 1% accuracy from -40° C to 105° C
  • Compact size, excellent price/performance ratio
  • 5 V-dc Input with 0.5 to 4.5 V-dc Output

The sensor will need a 5v and ground connection which can be obtained from our 5vsensor power supply (part number Sens010), or another sensor such as the MAP or throttle position, or directly from the car’s PCM. Tapping into another sensor’s 5vsignal will not effect that sensor’s operation as long as the connection is solid and insulated properly to prevent a short to ground.

Run the sensor’s output wire to the data acquisition device such as the Interceptor scan gauge. For Interceptor users, choose any available analog input.

To configure the Interceptor to read psi, you’ll need to enter the menu and choose the appropriate analog input. You’ll then be able to enter a conversion. The number to enter for slope is 37.5, and –18.7 (negative 18.7) for intercept. The negative “-“ sign needs tube entered in the first position on the left, so it will look like “-18.7” after you enter this number. The value displayed on the gauge when this analog input is chosen will now be in psi.

Warranty

This product is Aeroforce Technology warrants this product and its accessories against defects in material and workmanship for a period of 90 days from the date of purchase. Aeroforce Technology Inc. shall not be held liable in any way for any incidental or consequential damages to the vehicle, driver, passengers, and or other involved parties or property occurring while using the sensor.
