How to Install a Airaid Poweraid Throttle Body Spacer on your 1994-1995 Mustang GT

This Mustang Parts Installation Guide Works For

Airaid Poweraid Throttle Body Spacer (94-95 5.0L)DOWNLOAD PDF

Tools Required

  • 13mm Socket
  • 5mm Hex Key Wrench
  • Standard Screwdriver
Installation Time: 1 Hour

Installation

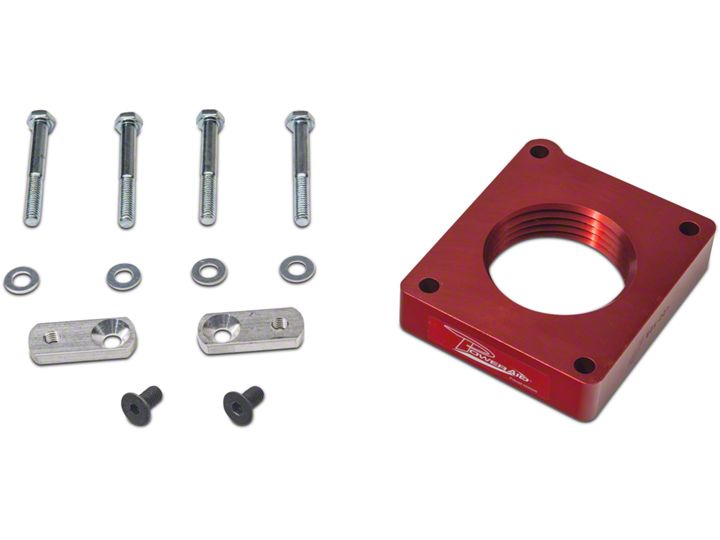

Parts List

  • (1) Power Plate
  • (2) Gaskets
  • (4) 5/16-18 x 2 1/2 Bolts
  • (4) 5/16 Washers
  • (2) Linkage Plates
  • (2) 8mm x 16mm Flat Head Screws

  1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
  2. Remove air cleaner assembly.

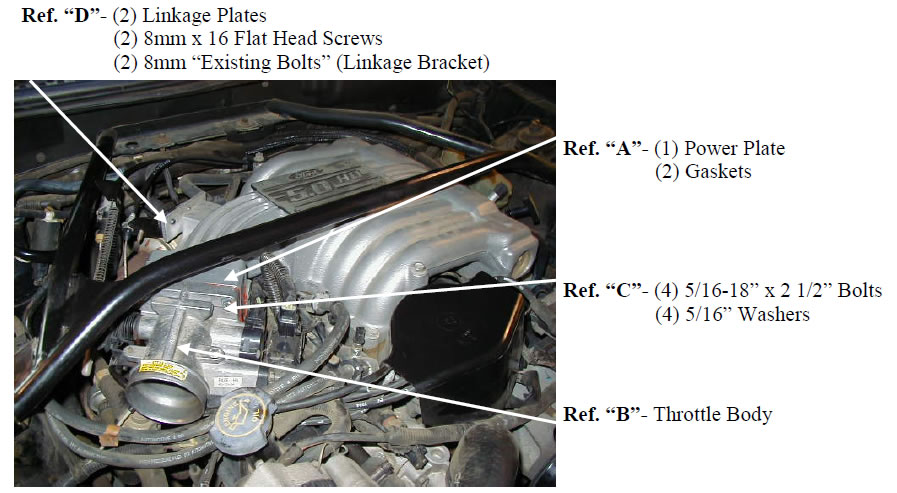

  3. Remove (2) 8mm bolts from throttle linkage bracket and save. (Ref. D)
  4. Remove (4) bolts from the throttle body. (Ref. C)
  5. Install the power plate using both gaskets. (Ref. A)
    1. Place one gasket between the throttle body and power plate.
    2. Place second gasket between the power plate and intake manifold.

  6. Install (4) 5/16-18 x 2 1/4 bolts and (4) 5/16 washers. (Ref. C)
  7. Install (2) throttle linkage plates using (2) 8mm x 16 flat head screws. (Ref. D)
  8. Install throttle linkage bracket using (2) saved 8mm bolts.
  9. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise or kickdown cables may require adjustment. Please refer to your vehicles service manual for proper adjusting.
  10. Reinstall air cleaner assembly using Step 2 as an example.
  11. Reconnect battery cable. Enjoy!
