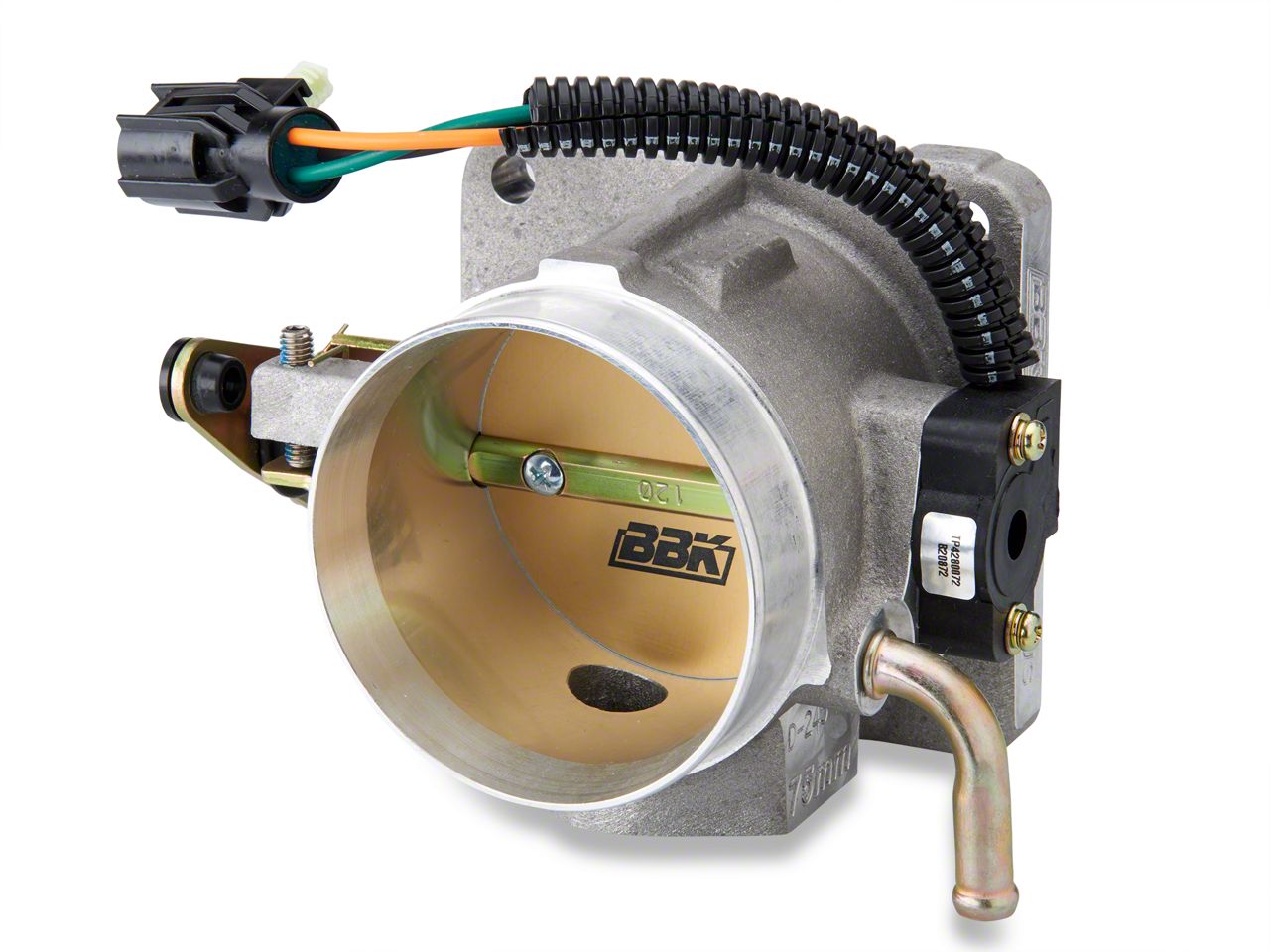

BBK 75mm Throttle Body (86-93 5.0L)

BBK 75mm Throttle Body (86-93 5.0L)
Click to Enlarge
Email
OUR PRICE$209.99(each)
BBK Mustang Performance Parts
Item # 56202
Market Price $239.39You Save 12% ($29.40)
Ships the same business day

Product Features

  • Gain power; Improve throttle response
  • 75mm single bore
  • Great for heavily modded and force inducted applications
  • Lightweight 356 aluminum construction
  • Bolt-on installation
  • Fits 1986-1993 5.0L Mustangs
  • CARB EO Number: D-245-13
Gain Power; Improve Throttle Response. If you have a forced induction setup in your 5.0L Mustang but are still running a stock throttle body, you're choking your performance Pony where it matters most. Unlike the restrictive factory throttle body, a free-flowing BBK Power Plus throttle body will let your engine breathe easier for maximum power and improved throttle response.

75MM Bore. Your stock throttle body is a restrictive 56mm, choking off airflow and keeping your Mustang from giving you all it has. This BBK throttle body features a generous, free flowing 75mm single bore design that is perfect for heavily modified and forced induction applications.

CNC Machined Aluminum. BBK throttle bodies are cast from high quality, lightweight 356 aluminum alloy that is finished using CNC machining to ensure a precision fit. They feature double-sealed bearings, o-ringed throttle shafts, and precision die-stamped linkages to ensure a long life and maximum performance for your Pony.

Bolt-On Installation. The BBK Throttle Body is designed for a straightforward installation and includes all necessary hardware. It is designed to reuse the factory throttle body gasket for an easy installation.

Application. This BBK 75mm Throttle Body is designed for use on 1986 to 1993 Mustangs equipped with the 5.0L EFI engine, including the LX 5.0, GT and SVT Cobra models. Intented for heavily modified or supercharged Mustangs only, stock or mildly modified 5.0L's do not flow enough air to benefit from this larger throttle body.

Technical Note. This BBK product is not legal for use in emission restrictive states. EGR Spacer not included, sold separately.

Technical Notes. This BBK throttle body is CARB certified (CARB EO Number: D-245-13) and 50 state legal.

Throttle Body Specifications
Bore Size: 75mm Single or Twin Blade: Single
Year: 1986-1993 Model: 5.0 LX, GT and SVT Cobra
Material: 356 Aluminum Finish: Cast Aluminum - Satin
Manufacturer: BBK Computer Tune Required: No

Installation Time:

(approx) 1 Hour

Difficulty Level:

Advanced mechanical skills required.

What's in the box?

  • (1) Throttle Body
  • (1) TPS sensor

What's in the box?

  • (1) Throttle Body
  • (1) TPS sensor
checkmark
Fitment:
  • Foxbody 86, 87, 88, 89, 90, 91, 92, 93
checkmark
Known Exceptions:
Fits 5.0L V8's Only

About BBK

BBK Mustang Performance Parts
Since 1988 BBK has been the leader in aftermarket Mustang performance parts and accessories and has grown to a top brand in Fuel Injection performance with three facilities totaling over 150,000ft where they design and build there vast product line here in the USA. Starting with products for the then new EFI Mustang back in 1988, BBK has along the way introduced many firsts to the Mustang aftermarket such as throttle bodies, cold air intakes, equal-length headers and there famous adjustable clutch quadrant kits. With over 500 product applications including dozens of products for the hot new 2011 Mustang V6 & 5.0L models BBK always delivers the best OEM quality, dyno proven performance upgrades for your favorite Mustang.
