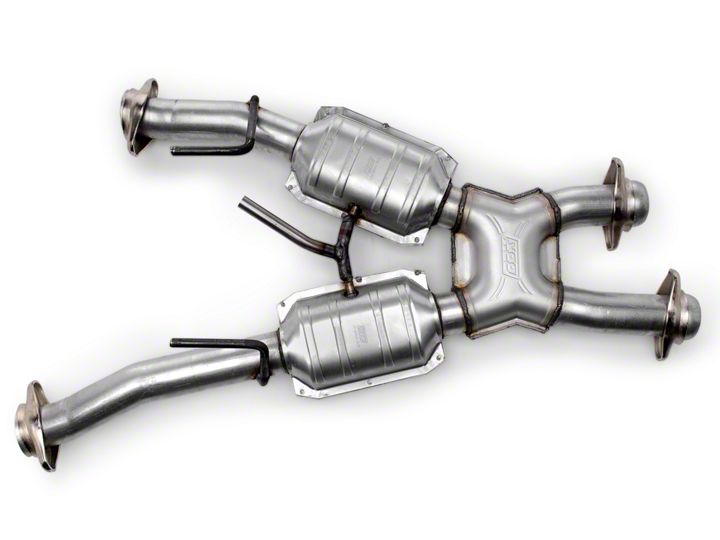

How to Install a BBK Catted Shorty X-Pipe - Automatic on your 1979-1993 Mustang 5.0L

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

Installation

Step 1 Place all four corners of the vehicle on jackstands or use a drive on lift.

! CAUTION!

Use extreme caution under vehicle

Step 2 Next disconnect the negative battery cable.

Step 3 To remove the factory mid-pipe: first remove the oxygen sensors using a 22mm wrench. Then take off the header flange nuts at the collectors then disconnect the air tube from the H-pipe. (In some instances cutting may be necessary.) Next disconnect the mufflers from the mid-pipe. Lubricate the H-pipe hangers with WO-40 or equivalent and slide back to remove. *

Step 4 For installation simply reverse the previous steps, making sure to reconnect the air tube to the connector tube located on the new BBK mid-pipe.

NOTE

Do not plug off the air line from the air pump. Air pump damage and premature catalytic converter damage will occur.

Step 5 Using the supplied muffler style clamp, install over the mid-pipe crossover tube and tighten to avoid any leaksthis part can also be welded to av oid any exhaust leaks.

*1994 and newer models are equipped with a bolt-on hanger system rather than the steel slide style used on the 1986-93 models. To remove simply unbolt the H-pipe from the hanger mount.

This guide applies to Mustang years: 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993 and Submodels: Foxbody
