How to install BBK Chrome Unequal Length Shorty Headers on your 1986-1993 Mustang

This Mustang Parts Installation Guide Works For

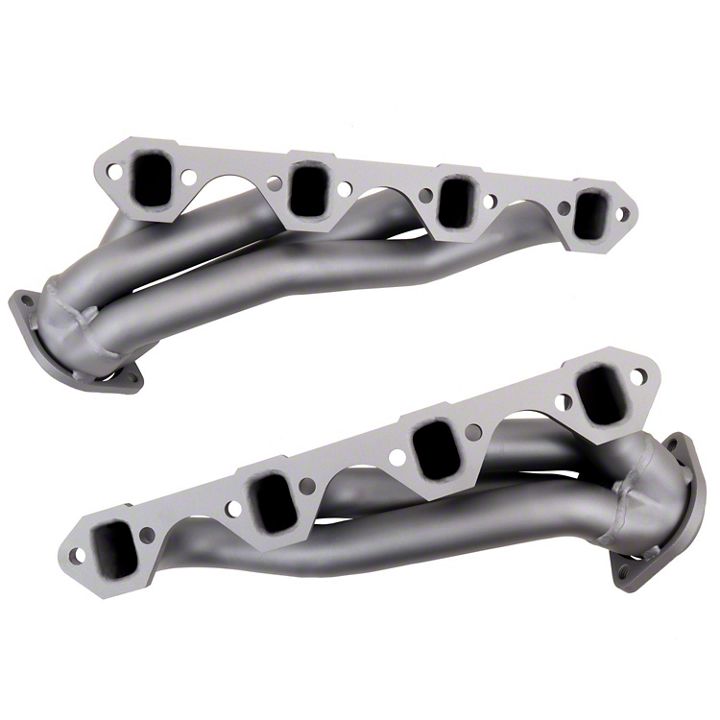

BBK Chrome Unequal Length Shorty Headers (86-93 5.0L)BBK Chrome Unequal Length Shorty Headers (86-93 5.0L) 1515
Fitment Includes:
  • - Foxbody 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
DOWNLOAD PDF

Tools Required

Installation Time: (approx) a day

Installation

Step 1 Make sure engine is cool and disconnect negative battery terminal.

! CAUTION !

Use extreme caution under vehicle

Step 2 Remove the hose clamp at the throttle body, unplug the mass air sensor if so equipped and remove hose assembly for access.

Step 3 Remove air injection tubes from passenger side*(see note).

Step 4 Remove the spark plug wires and the spark plugs.

Step 5 Working from under the vehicle (use caution) remove the nuts connecting the h-pipes to the exhaust manifold and the nuts holding the mufflers to the h-pipe and slide the h-pipe back a few inches for clearance.

Step 6 Remove the stock exhaust manifolds and clean any gasket material from the heads. (Header removal and installation is from the inside of the engine compartment.)

Step 7 Using the gaskets provided start all the new header bolts before tightening the new headers to specs.

Step 8 Reverse previous steps to complete installation.

NOTE

*On 1994-95 models remove the steel EGR tube mounted on the passenger side header, kit 1525 & 15250 include new EGR tube assembly
