How to Install a Classic Design Concepts Convertible Lightbar on Your 1990-1993 Mustang

Installation Time

4 hours

Tools Required
  • Phillips Screw Driver
  • Drill Motor
  • 1 - 3/4" hole saw
  • 1/8" drill bit
  • Wire Crimper
  • ½” Socket,
  • ⅜” Drive Ratchet
  • ⅜” Drive Swivel
  • Center Punch
  • 7/16” Socket
  • ⅜” Drive Extension 10”
  • Masking tape ¾”
  • Duct tape
  • 5/16”-18 Tap

Installation

Kit Components: 84-89 Light Bar Package

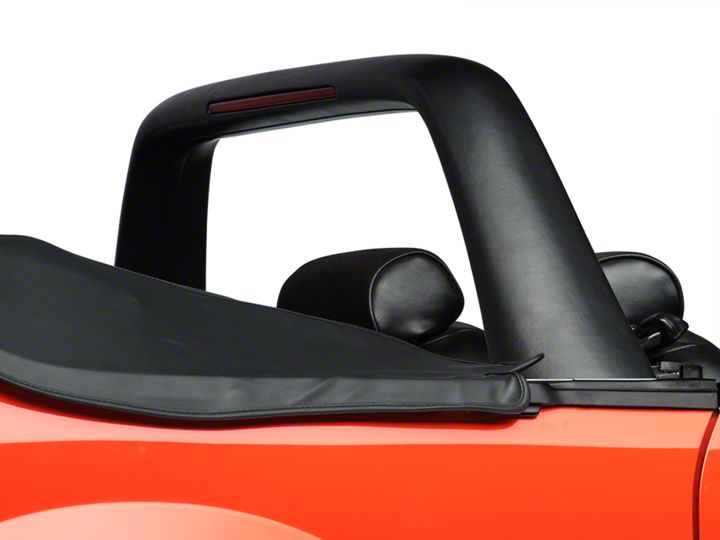

  • 1- Light Bar
  • 1 - Bracket & Bolt Kit, 4 bolts, 10 Shims
  • 1 - Wire Connectors

Kit Components: 90-93 Light Bar Package

  • 1 - Light Bar
  • 4 - Bolts (5/16"-18 x 2.5')
  • 4 - Washers
  • 4 - Shims
  • 2 - Dark Blue Connectors
  • 2 - Light Blue Connectors

1984-89 Instructions - (90-93 see below)

1. Lower Convertible Top.

2. Remove rear seat, lower cushion by pushing down and rearward on front of cushion to release front lower attachments. Once front attachments are released, lift lower cushion up at front and remove.

3. Remove two lower fasteners attaching rear seat back assembly, slide rear seat back assembly downward to release upper attachments and remove.

4. Remove screws in quarter panel interior trim panel and rear screw in still plate and remove panel as shown in figure 1.

5. Remove tow bolts in each lock pillar as shown. Pre-thread light bar bolts supplied in kit into lock pillar to properly thread them, remove bolts as shown in figure 2.

6. Without tightening bolts completely, install light bar placing spacers (washers) between lock pillar and bar as shown. Note that indentations in light bar provide clearance for seat belt guide loop as shown in figure 3. Note: Wrap light bar with duct tape to protect from contact with convertible top mechanism as shown in figure 4.

7. Carefully move convertible top to full up position to check clearance of light bar to convertible top mechanism. Note: Due to differences between vehicles, adjustment of light bar at lock pillar on right side will move light bar to left. Installing spacers between light bar and lock pillar on left side will move light bar to right.

8. If light bar contacts convertible top mechanism, add shims (washers) to the mounting brackets as noted above.

9. Once light bar is adjusted to fit inside convertible top mechanism without contacting mechanism, tighten light bar bolts.

10. Locate wiring connector for stop light on trunk lid. Locate the red/orange wire and black wire.

11. Using wire connectors provided, attach power lead wire form light bar to red/orange wire in wining harness and ground wire form light bar to black wire in wiring harness.

12. Check function of stop light on light bar. Light should only come on when brake pedal is depressed. Light should not come on at any other time. If light does not function properly reverse connection of wires.

13. Straighten staples attaching quarter glass seal to quarter trim panels and remove seal.

14. Separate plastic welds attaching plastic edge molding to trim panels using a putty knife and remove edge molding from time panels.

15. Position template on trim panel and drill a 1 3/4" hole for light bar tube clearance.

16. Using a razor knife, cut a slit in vinyl veering between 1 3/4" hole and edge of panel and peel back vinyl to expose trim panels.

17. Cut out trim panels with a saw.

18. Cut a 3/4" piece off of the section of trim panel removed in step 17.

19. Loosely install quarter trim panels.

20. Assemble quarter glass seals to edge moldings, re-using staples in seal. Position seal and molding assembly as it would appear in it's installed position.

21. Slide trim panel further into its install position and install 3/4" trim panel piece (cut in set 18) under vinyl trim, gluing it to the vinyl trim by using 3M General Trim Adhesive or equivalent.

22. With vinyl glued down, slide trim panel into molding/seal assembly and install screws attaching trim panel to car.

23. Install rear seat back by aligning seat back frame upper slots and upper mounting tabs on body. Sliding seat back upward to engage tabs, and installing lower bolts.

24. Install rear seat cushion and push down and rearward to engage front lower attachments.

25. Enjoy your bar and do not hesitate to contact us at tech@classic-designconcepts or call 248-624-7997.
