How to Install a Coil Pack on Your 2001-2004 V6 Mustang

This Mustang Parts Installation Guide Works For

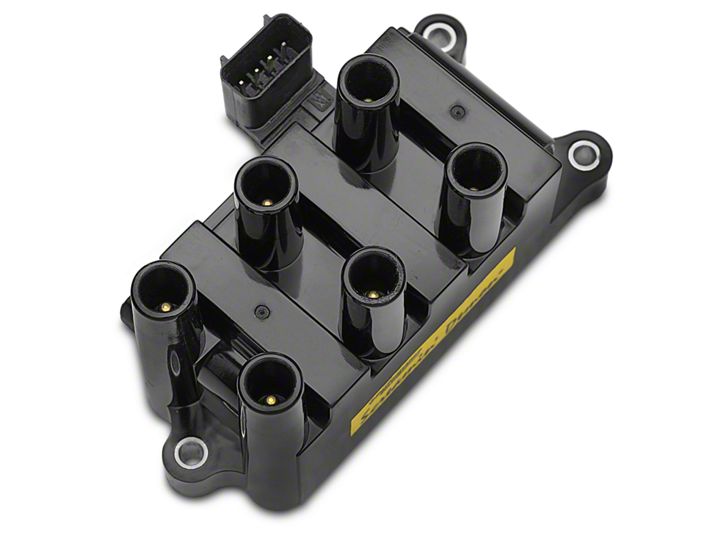

Performance Distributors Screamin Demon Coil (01-04 V6)Performance Distributors Screamin Demon Coil (01-04 V6) 31737
Fitment Includes:
  • - V6 2001, 2002, 2003, 2004
DOWNLOAD PDF

Tools Required

  • 7mm Socket Wrench
  • 5/16 Socket Wrench
  • Flat Head Screw Driver
Installation Time: 1 Hour

Installation

screamin-demon-coil-01-04-v6

Installation Instructions:

  1. Remove negative cable from battery using 5/16 socket and secure away from negative terminal.

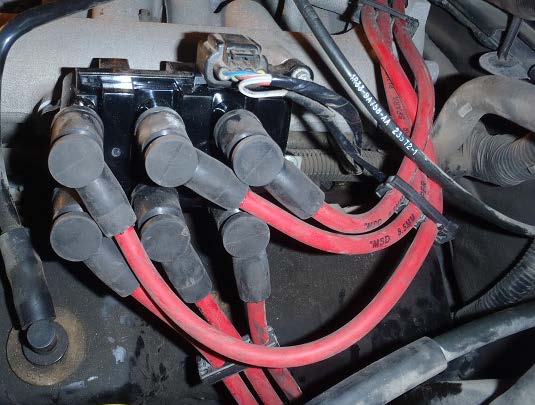

    2. screamin-demon-coil-01-04-v6

  2. Remove wire harness from coil & throttle cable coupling.

    1. Use a flat head screwdriver to help by gently lifting on tab as this clip can easily break.
    2. Pull coupling straight off bolt.

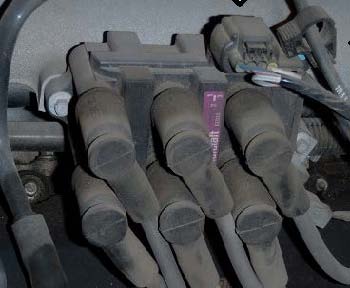

      3. screamin-demon-coil-01-04-v6

  3. Remove (3) bolts attached to the old coil using a 7mm socket wrench (Bolts A, B & C shown in photo)

    4. *NOTE: Bolt C – there is a metal plate attached; this will need to be reattached later on.

    screamin-demon-coil-01-04-v6

  4. Remove spark plug wires from old terminal.

    5. *NOTE: Mark the order of each wire in relationship to the coil pack with tape and a marker or follow diagram provided below.

    screamin-demon-coil-01-04-v6

  5. Install Coil Pack

    1. Coil Pack will mount in same factory location using the (3) bolts that were removed.
      2. screamin-demon-coil-01-04-v6
    2. Reattach wire harness/throttle cable coupling.
    3. nstall spark plug wires.
      4. screamin-demon-coil-01-04-v6

  6. Reconnect negative cable to battery terminal.

    7. screamin-demon-coil-01-04-v6

Installation Instructions written by AmericanMuscle customer Ryan Todd 4.13.12
