Flowmaster American Thunder Axle-Back Exhaust (05-10 GT & 07-09 GT500) - Installation Instructions

This Mustang Parts Installation Guide Works For

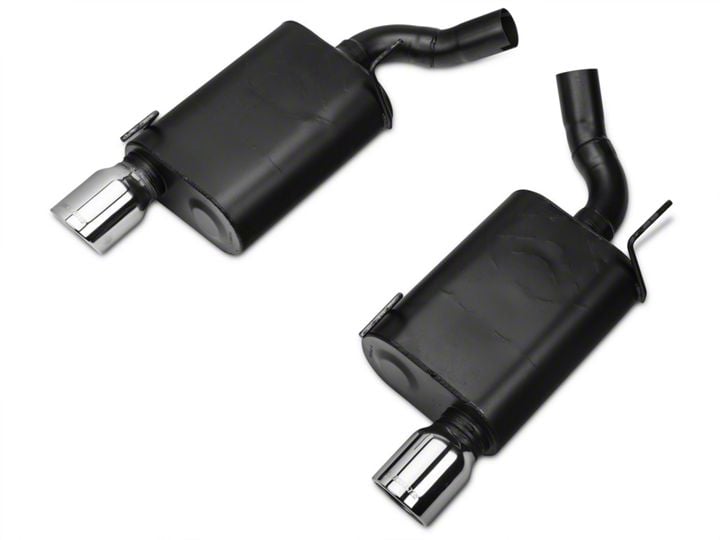

Flowmaster American Thunder Axle-Back Exhaust (05-10 GT, GT500)Flowmaster American Thunder Axle-Back Exhaust (05-10 GT, GT500) 17410
Fitment Includes:
  • - GT 2005, 2006, 2007, 2008, 2009, 2010
  • - GT500 2007, 2008, 2009, 2010
  • - Bullitt 2008, 2009
DOWNLOAD PDF

Tools Required

  • 15mm Deep Well Socket
  • 13mm Deep Well Socket
  • 13mm Box End Wrench
  • 6” Extension
  • Universal Ratchet
  • (Optional) Car ramps, Jack, and Jack stands
Installation Time: 2 Hrs

Installation

  1. To make removal easier, jacks or car ramps can be used. In my installation I used car ramps. After pulling onto the ramps, be sure that the car is in park and that the wheels are blocked to prevent it from rolling. If the car is a manual transmission be sure to keep it in gear! Next start by removing the band clamps that hold the stock mufflers to the mid pipe (15mm Bolts). After doing this, unbolt the bolts that hold the rubber isolators in place (13mm Bolts). There should be four of these bolts total, as pictured in the lower right. The use of WD40 or some other lubricant may be required to loosen the bolts on the clamps if they are stock.

    Flowmaster Axleback Exhaust 0510GT 3

    Flowmaster Axleback Exhaust 0510GT 4

    Bolted Band Clamps and Rubber Isolators

  2. Once step one is complete, remove the mufflers from the mid pipe, followed by the isolators and band clamps. All that remains should be as shown below (the mid pipe).

    Flowmaster Axleback Exhaust 0510GT 5

    After Removal of Mufflers

  3. Before putting the new Flowmaster American Thunder Axle Back Kit into place, put the rubber isolators and the band clamps on your new mufflers (the stock clamps can be used in place of the provided ones in order to have a more air tight seal, in my application I used the stock ones in order to get a tighter fit because I felt that the one Flowmaster provided did not seal properly.

    Flowmaster Axleback Exhaust 0510GT 6

    Stock and After Market Band Clamps. New on Left, Stock on Right.

    Flowmaster Axleback Exhaust 0510GT 7

    Rubber Isolators Placed on New Mufflers

  4. Once this is done position the muffler in place and slide the muffler onto the mid pipe. Begin placing the bolts back in place, starting with the 13mm rubber isolator bolts closest to the mid pipe, followed by the ones closest to the rear. This order is not necessary but I found it to be the easiest. Position the band clamp over the new muffler and mid pipe in order to prevent any exhaust leaks. Check the position of the tips and make sure they align symmetrically on both sides. Don’t tighten the bolts down until everything is in place where you want it.

    Flowmaster Axleback Exhaust 0510GT 8

    >New Mufflers Installed

  5. Finally, check your alignment and torque all the bolts down to the appropriate tension. Take the car off the ramps or jacks and step back and enjoy! After starting the car, drive around and let all your friends enjoy the classic American muscle car sound. It would be a good idea to recheck all the bolts and clamps after a few miles to ensure that there are no leaks.

    Flowmaster Axleback Exhaust 0510GT 9

    After Flowmaster American Thunder Axle Back Kit Install

Installation instructions provided by AmericanMuscle customer Kyle Macomber 10.26.09.
