Installation

airaid-cold-air-intake-11-13-v6 airaid-cold-air-intake-11-13-v6

Note: Because of space constraints, this Intake system can not to be used in conjunction with a throttlebody spacer.

* Vehicles equipped with the Ford Performance Package will need to have the engine cover trimmed for proper fit.

airaid-cold-air-intake-11-13-v6

Disconnect The Negative Battery Terminal!

  1. A) Loosen the hose clamps on the factory intake tube B) Carefully depress the hose lock tabs, and disconnect the crank case breather line and the brake aspirator line (if equipped, AT models only). C) Remove the factory intake tube.
  2. airaid-cold-air-intake-11-13-v6

  3. A) Slide the red lock tab back, and disconnect the wiring harness from the Mass Air Flow sensor (MAF). Carefully pry the harness anchor from the air box using a screwdriver. B) Using a 10mm socket, remove the bolt securing the air box to the inner fender and remove the air box assembly. This bolt will be reused in step 4.
  4. airaid-cold-air-intake-11-13-v6

  5. Transfer the factory air box mounting grommets. A) Locate and remove the two lower air box mounting grommets, and install them in the inner fender. B) Remove the Upper air box mounting grommet and steel sleeve, and re -install into the Airaid Cold Air Box, or CAB (#3).
  6. airaid-cold-air-intake-11-13-v6

  7. Install the CAB into the vehicle. Make sure that the Air inlet of the CAB mates with the factory duct, and the two locating cones on the bottom mate with the factory grommets. Next reinstall the factory bolt that was removed in step #3 through the steel sleeve and grommet and into the inner fender.
  8. airaid-cold-air-intake-11-13-v6

  9. Transfer the MAF sensor into the Airaid Intake Tube (#2) and secure using the supplied 8-32 Button Head Screws (#8). Do Not Use The Factory Screws!
  10. airaid-cold-air-intake-11-13-v6

  11. Install the Grommet and Fittings into the Airaid intake tube. A) All models will require the use of the 5/8” Fitting (#11) and the 5/8”Grommet (#12). B) Automatic transmission equipped vehicles will also use the 1/4” Barbed Fitting (#14) ). Manual transmission vehicles will not need the 1/4” Hose Fitting and will use the 1/4” Plug (#13).
  12. airaid-cold-air-intake-11-13-v6

  13. Slip the Hump Hose (#4) and Hose clamps onto the Airaid Intake Tube. Slide the #64 Hose Clamp (#10) onto the tube side and the #48 Hose Clamp (#9) onto the Engine side. Leave the Hose Clamps loose for now.
  14. airaid-cold-air-intake-11-13-v6

  15. Insert the Intake Tube into the CAB first, then lower the Tube down and onto the throttlebody. Tighten the Hose Clamps.
  16. airaid-cold-air-intake-11-13-v6

  17. Secure the Intake Tube to the CAB using the two 1/4” Button Head Bolts (#6) and 1/4” Washers (#7).
  18. airaid-cold-air-intake-11-13-v6

  19. Reconnect the breather line or lines to the Hose Fittings depending on your application.
  20. airaid-cold-air-intake-11-13-v6

  21. Reconnect the Mass Air Flow sensor. Slide the locking tab back into the connector.
  22. airaid-cold-air-intake-11-13-v6

  23. Install the Airaid Premium Filter (#1) onto the Intake Tube and tighten the hose clamp.
  24. airaid-cold-air-intake-11-13-v6 airaid-cold-air-intake-11-13-v6

  25. Double check your work! Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts, and screws are tight. Double check the hood clearance! Reconnect the negative battery cable!

For Performance Package equipped motors, it is recommended that the installer enlarge the breather cut out in the engine cover using a Dremel with a cut off wheel, then de burr for a professional look.

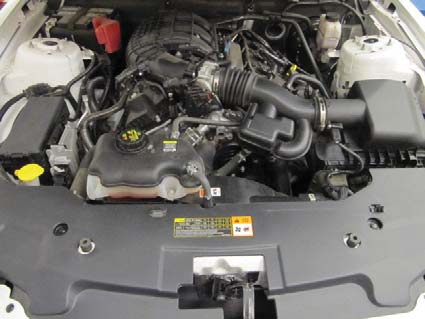

Before!

airaid-cold-air-intake-11-13-v6

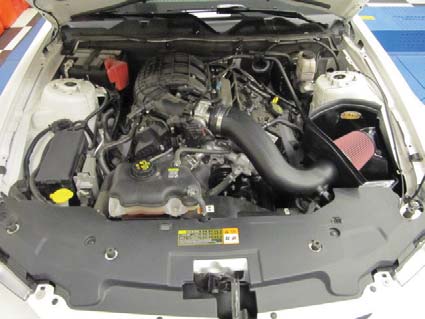

After

airaid-cold-air-intake-11-13-v6
