How to Install Raxiom Map Light LED Conversion Kit on your 2005-2014 Mustang

Installation Time

15 minutes

Tools Required
  • None
American Muscle
Shop Parts in this Guide

Installation Instructions:


1) Start by pulling the cover for the dome bulbs from the front as shown in the picture below. Simply grasp the cover firmly and pull down. The cover is being held by two plastic clips on both sides of the cover.


2) Use your thump to depress the tap holding the harness to the grey connector. Once you release the tab, gently pull the harness away.


3) There are two separate bulbs in the housing. Remove the bulbs by pulling them straight out.


4) Remove the stock bulbs by pulling them gently and re-install you new LED bulbs. The LED lights are sensitive. So, if they did NOT work, simply pull them out and put them back in the other way (just like a USB cable). Put the bulbs back in their housing.



5) Now you are ready to plug the grey connecter back into the harness. Make sure the bulbs are working. If everything is working well, line up the tabs on the dome housing and push them in simply.

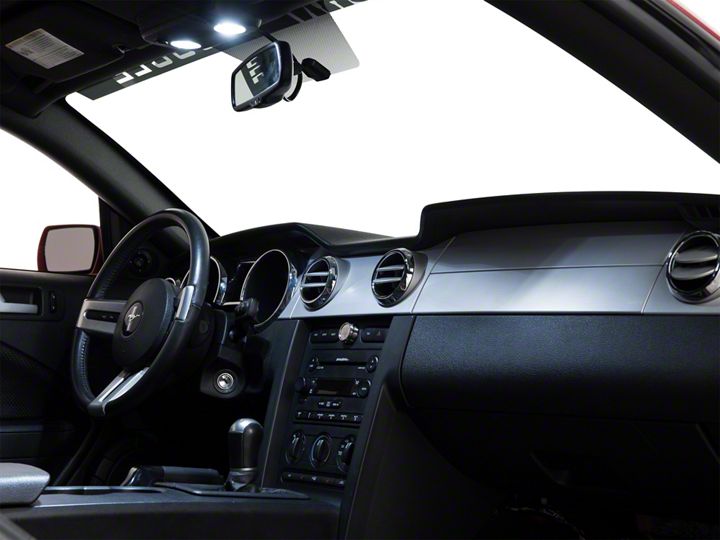

6) Now you have a brighter light and a better appearance to your Mustang!


Installation Instructions written by AmericanMuscle Customer Abdulrahman Al Abdulhai 4/11/13

This guide applies to Vehicle years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and Submodels: Boss 302, V6, Bullitt, GT, GT500
