How to install a Roush Extreme Lowering Spring Kit on your Mustang

This Mustang Parts Installation Guide Works For

Roush Extreme Lowering Spring Kit (05-12 GT)DOWNLOAD PDF

Tools Required

Installation Time: (approx) 4 Hours

Installation

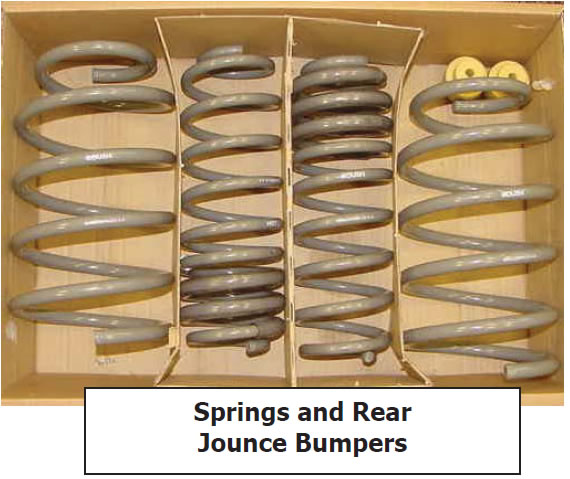

Packaging List for Complete Coil Spring Kit # R06000027-13-AA

ItemPart No.Quantity
Coil Spring KitR060000271
Front Coil SpringsR060200902
Rear Coil SpringsR060300882
Rear Jounce BumperR060300422
Installation InstructionsR060000301
roush-extreme-lowering-spring-kit-05-12-gt

This spring set will lower your vehicle approximately 1 in the front and 1.25 in the rear. V6 vehicles will be slightly higher. For use with factory struts and shocks.

LIMIT OF LIABILITY STATEMENT

The information contained in this publication was accurate and in effect at the time the publication was approved for printing and is subject to change without notice or liability. ROUSH Performance Products (RPP) reserves the right to revise the information presented herein or to discontinue the production of parts described at any time.

SAFETY REQUIREMENTS

STOP! READ IMPORTANT SAFETY CAUTIONS AND WARNINGS BEFORE PROCEEDING.

IMPORTANT SAFETY NOTICE

Appropriate disassembly, assembly methods and procedures are essential to ensure the personal safety of the individual performing the kit installation. Improper installation due to the failure to correctly follow these instructions could cause personal injury or death. Read each step of the installation manual carefully before starting the actual installation.

  1. Always wear safety glasses for eye protection.
  2. Place ignition switch in the OFF position.
  3. Always apply the parking brake when working on a vehicle.
  4. Chock the front and rear tires to prevent unexpected vehicle movement.
  5. If working without a lift, always consult vehicle manual for correct lifting specifications.
  6. Operate the engine only in well-ventilated areas to avoid exposure to carbon monoxide.
  7. Do not smoke or use flammable items near or around the fuel system.
  8. Use chemicals and cleaners in well-ventilated areas.
  9. Batteries produce explosive gases, which can cause personal injury.
  10. Therefore, do not allow flames, sparks or flammable substances to come near the battery.

  11. Keeps hands and any other objects away from the radiator fan blades.
  12. Keep yourself and your clothing away from moving parts when the engine is running.
  13. Do not wear loose clothing or jewelry that can get caught in rotating parts or scratch surface finishes.
  14. Allow the engine, cooling system, brakes and exhaust to cool before working on a vehicle.

WORK SAFELY!

Perform this installation on a good clean level surface for maximum safety and with the engine turned off.

Disassembly

Follow procedures using the appropriate year (05-09) Ford Service Manual to remove the front and rear coil springs.

Remove Rear Jounce Bumpers

  1. Grasp the foam rubber portion of the factory jounce bumper and pull off using a twisting and pulling motion.
  2. Remove the 2 Jounce Bumper to Axle bolts (2 per side) using a T-40 Torx Driver.

Assembly

Follow procedures using the appropriate year (05-09) Ford Service Manual to install the front and rear coil springs.

Assembly notes:

Rear

  • The rear springs should be installed with the coated side upward.
  • Front

  • The front jounce bumpers should remain on the factory front struts. Do not remove.

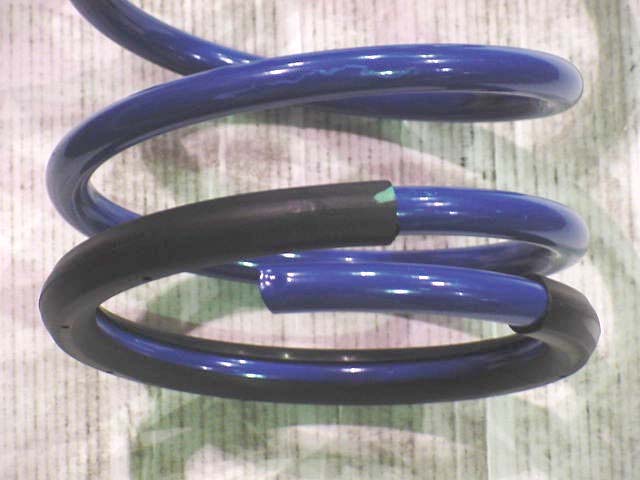

  • The front spring lower isolator should be carried-over from the production spring.

See picture below. The isolator should be installed as pictured with the second coil overlapping the end.

roush-extreme-lowering-spring-kit-05-12-gt

Install ROUSH Rear Jounce Bumpers

  1. Press the ROUSH Jounce Bumpers into the brackets. Glass Cleaner can be used as a lubricant if necessary.
  2. Place the ROUSH Jounce Bumpers on the axle and start the bolts.
  3. Torque Jounce Bumper Bolts to 30 Nm ( 23 lb-ft)

Congratulations!!! You have completed the installation of the ROUSH Performance Products, Mustang Lowering Spring Kit It is recommended that you save all parts removed from your vehicle during the installation of this kit.
