How to Install an RTR Front Chin Spoiler with Splitter on Your 2010-2012 Mustang GT

This Mustang Parts Installation Guide Works For

RTR Front Chin Spoiler with Splitter (10-12 GT)DOWNLOAD PDF

Tools Required

  • Drive Ratchet
  • Drive 7mm Socket
  • Drive 5.5mm OR 7/32 Socket
  • Short Phillips Screw Driver
  • Trim Panel/Fork Tool
  • 80 120 grit sand paper
Installation Time: 2 Hours

Installation

About the Product:

This product is designed and manufactured by Classic Design Concepts. The Chin Spoiler is Injection Molded in OE quality TPO material that is ready to be installed. If you choose to paint this product, we recommend the part be painted by a professional automotive paint facility to maintain the quality of the part. Recommended bake cycle temperature of 150 F or less. Please read instructions before installation and test fit part before painting.

Kit Components:

  • Chin Spoiler
  • Alcohol Wipes
  • Adhesion Promoter

Attention:

Tape surfaces must have a temperature of 70 F or above to properly adhere. If necessary, warm the vehicle areas with a heat gun or hair dryer.

  1. You can install the Chin Spoiler with vehicle on the ground or raise front of vehicle using ramp, hoist, jacks, etc. SUPPORT THE VEHICLE PROPERLY.
  2. Remove the screws from wheel opening securing wheel well liner to the factory trim piece (1 per side).
  3. rtr-front-chin-spoiler-with-splitter-install

  4. Remove the screws that secure the splash shield to the vehicle and remove the shield (9 total).
  5. Remove the plastic fasteners that hold the factory lower trim piece to the fascia. Lift the head of fastener with the fork tool and remove fastener form fascia (1 per side).
  6. rtr-front-chin-spoiler-with-splitter-install

  7. Remove the downward screws securing the ends of the factory trim piece to the fascia (1 per side).
  8. rtr-front-chin-spoiler-with-splitter-install

  9. Remove the outside temperature sensor from the factory trim piece using a fork tool.
  10. rtr-front-chin-spoiler-with-splitter-install

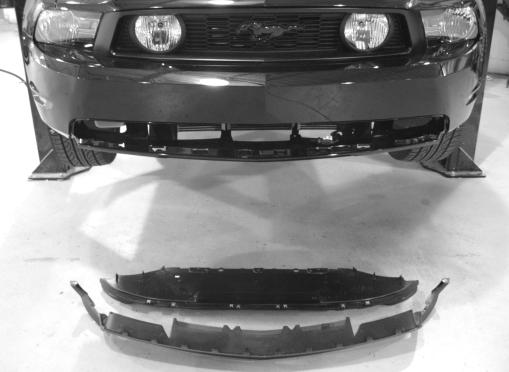

  11. Working from one end of the factory trim piece, carefully pull the trim piece free from the fascia.
  12. rtr-front-chin-spoiler-with-splitter-install

  13. Remove the J-Clip in both ends of the factory trim piece for re-use on the CDC Chin Spoiler. Lift the locking tab with a small screwdriver and pull Clip from factory trim piece.
  14. rtr-front-chin-spoiler-with-splitter-install rtr-front-chin-spoiler-with-splitter-install

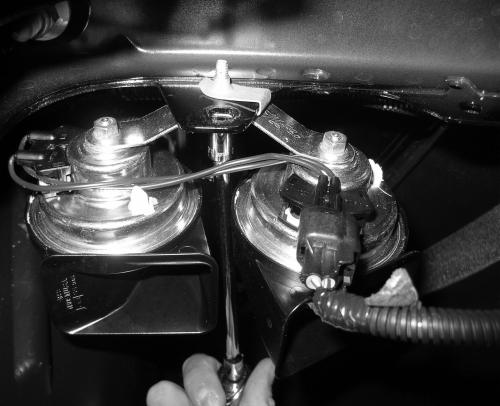

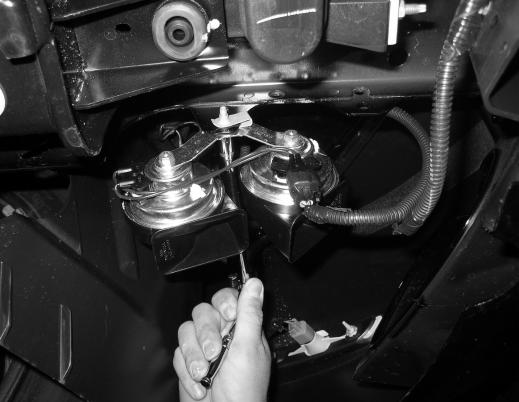

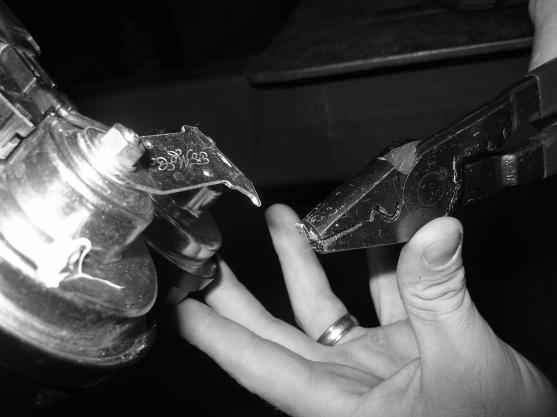

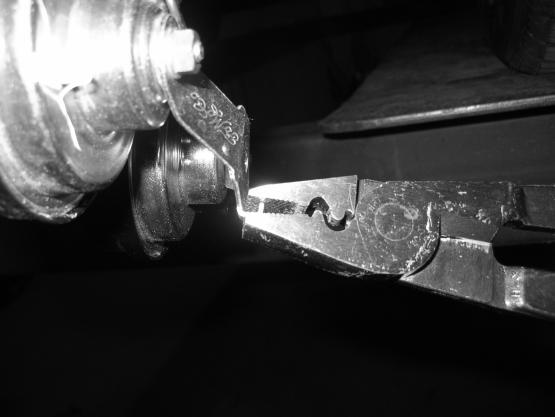

  15. Relocate the horns by removing the bolt securing them to the vehicle and relocating them to the hole directly above it. There is a small tab that needs to be removed from the bracket to allow it to move up. This moves the horns up about an inch so the chin will clear them.
  16. rtr-front-chin-spoiler-with-splitter-install

    Factory Position

    rtr-front-chin-spoiler-with-splitter-install

    Relocated Position

    rtr-front-chin-spoiler-with-splitter-install rtr-front-chin-spoiler-with-splitter-install

  17. Clean the fascia where the Acrylic Bonding Tape will contact and wipe with Isopropyl Alcohol, allow alcohol to dry. It is imperative that any wax be removed from the vehicle at the tape contact area and the area is clean for proper adhesion of Chin Spoiler.
  18. Note: We recommend that you black out the washer reservoir bottle before installing the Chin Spoiler

    rtr-front-chin-spoiler-with-splitter-install rtr-front-chin-spoiler-with-splitter-install

  19. Install the factory J-Clips, removed in step #8, onto the CDC Chin Spoiler.
  20. rtr-front-chin-spoiler-with-splitter-install rtr-front-chin-spoiler-with-splitter-install

  21. Create pull tabs by peeling 2-3 of the red backing from the Acrylic Bonding Tape on the Chin Spoiler.
  22. rtr-front-chin-spoiler-with-splitter-install

  23. Align the Chin Spoiler tabs with the slots in the fascia and set the Chin Spoiler into the fascia opening. Make sure that the pull tabs created above are accessible.
  24. rtr-front-chin-spoiler-with-splitter-install

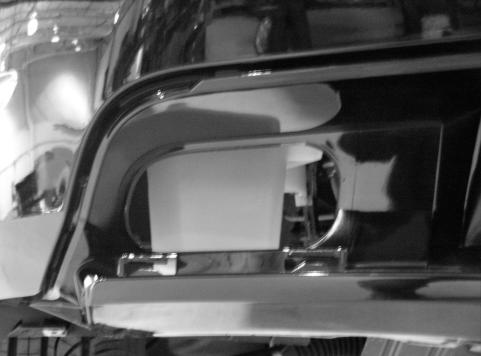

  25. Start at the center of the Chin Spoiler, work toward one side, and push Chin Spoiler into the fascia engaging the tabs (top & bottom) as you go. Align the mounting holes in the end of Chin Spoiler. Repeat on the other side.
  26. Align the Chin Spoiler along the feature line of the fascia and peel the red backing from the bonding tape. Press Chin Spoiler to fascia over the tape areas to adhere Acrylic Tape to fascia.
  27. Note: Reach to the inside of the fascia and apply outward pressure as you press the Chin Spoiler to fascia.

    For proper adhesion, the temperature of the bonding surfaces must be 70˚F minimum at the time of adhesion. If necessary, warm areas with a hair dryer or heat gun. Apply pressure over tape areas of part to set tape to vehicle. As a general rule, a minimum of 15 PSI should be used.

  28. Install the downward screws, removed in step #5, at each end of the Chin Spoiler.
  29. rtr-front-chin-spoiler-with-splitter-install

  30. Secure Chin Spoiler in the wheel wells with the factory screws.
  31. Attach the outside temperature sensor to the Chin Spoiler.
  32. rtr-front-chin-spoiler-with-splitter-install rtr-front-chin-spoiler-with-splitter-install

  33. Re-install the factory slash shield with the factory fasteners.

Thank you for choosing Classic Design Concepts for your restyling needs. If you have any questions or concerns regarding installation please contact Tech@classicdesignconcepts.com Or call 866-624-7997.
