How to Install a Steeda Throttle Body Spacer on your 2005-2010 Mustang V6

This Mustang Parts Installation Guide Works For

Steeda Throttle Body Spacer (05-10 V6)DOWNLOAD PDF

Tools Required

Installation Time: 1 Hour

Installation

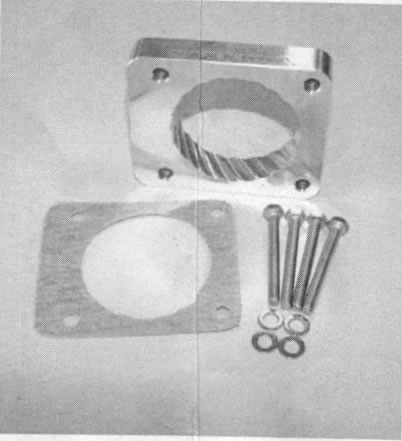

steeda-throttle-body-spacer-05-10-v6

Kit contents:

1 Billet Throttle Body Spacers

1 Gasket

4 Bolts (M6x55)

4 Washers

Installation Steps

  1. Remove the 4 bolts attaching the throtlle body to the intake manifold.
  2. Gently pull the throttle body forward md insert the gasket and spacer into the gap (re-seat the o-ring if it pulls from the goove). Loosely install one bolt to hold the pieces while lining up the other 3 bolts.
  3. The stack-up from front to rear is: Throttle Body/ Supplied Gasket/ Billet Spacer/ Intake Manifold.

  4. Tighten the bolts to 89 in-Ibs (approx. 7.5 ft-Ibs).
