Mid-way through the production run for the 2001 model year Ford changed the design of the water pump on the 4.6L engine. The older style pump produced from 1996 to mid-2001 had a longer shaft. In January of 2001 the design of the pump was changed to a shorter shaft. This necessitated a change in the design of the pump pulley.

How to Identify Your Mustang's Water Pump Pulley

You should visually identify which pulley/pump you have before ordering.

The old water pump pulley had a convex or "bowed-out" face, the new design has a concave or pressed in face. There is no exact changeover date for the pump and pulley. It is important to visually inspect your car to see which design you have. Supposedly the changeover occurred in January of 2001, but we have seen cars with identical January build dates and different water pumps and pulleys. We have also seen the old style pulley use in a few 2001 model Mustangs, so be sure to check your Mustang's water pump before ordering.

Refer to the pictures below to see which pulley design you have in your Mustang and the right part number for your application.

1996-2001 Mustang Water pump Pulley

This is the 1996 to mid-2001 (early style) pulley.
Note how the face is bowed outward.

Use Part # 16088 or 16091.

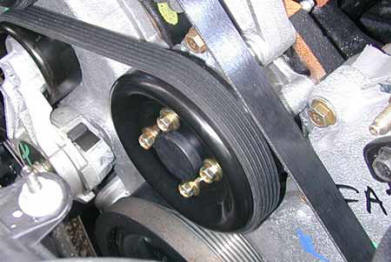

Side View Mustang Water Pump Pulley

This is the late style pulley - used from mid-2001 thru 2004.
Note how the face is depressed inward.

Use Part # 16090 or 16092.

Mustang Water Pump pulley Image Ford Mustang Water Pump Pulley

FItment includes:   •   1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, GT, V6, Mach 1, Bullitt, Cobra Mustangs
