Mustang Light Covers ('87-'93) - Installation Instructions

This Mustang Parts Installation Guide Works For

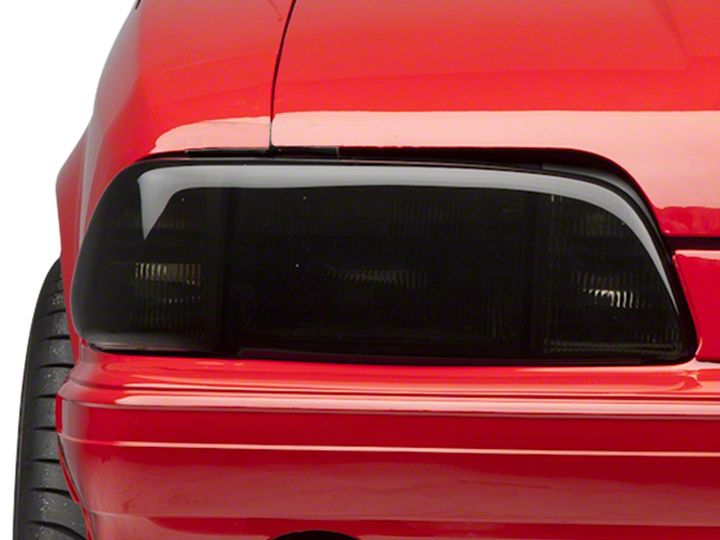

Smoked Headlight Covers (87-93 All)DOWNLOAD PDF

Tools Required

Installation Time: 30 Mins

Installation

Headlight Cover Install:

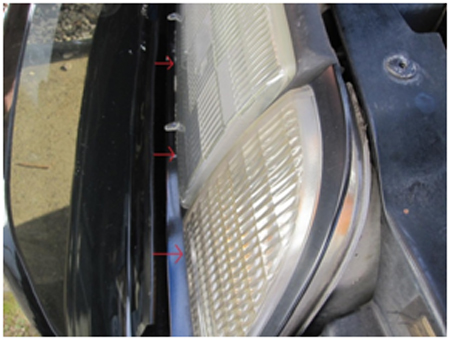

  1. Tuck the bottom edge of the light cover between the headlight and bumper cover as shown:

    Mustang Headlight Covers 87-93 1

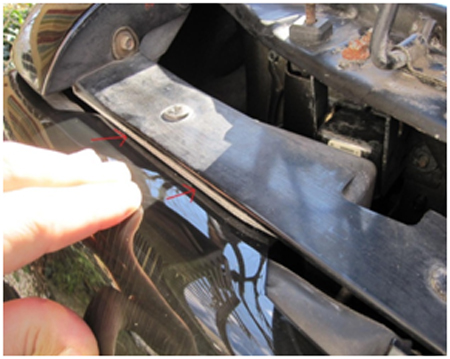

  2. Once the cover is secured between the light housing and bumper cover, push the top part towards the headlight and tuck it under the radiator support as shown. Repeat for opposite side to complete the installation.

    Mustang Headlight Covers 87-93 2

Tail Light Cover Install:

Note: The following instructions are applicable for both GT & LX Smoked Tail Light Covers.

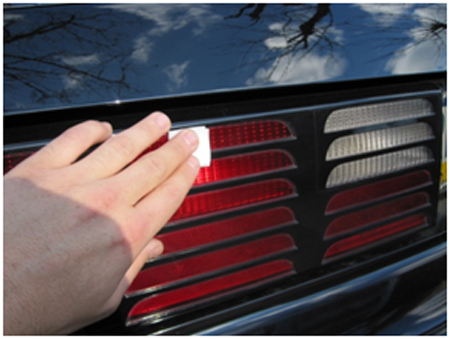

  1. Using the supplied Alcohol Prep Pads, thoroughly clean the area of the tail light where the tape will be affixed.

    Mustang Headlight Covers 87-93 3

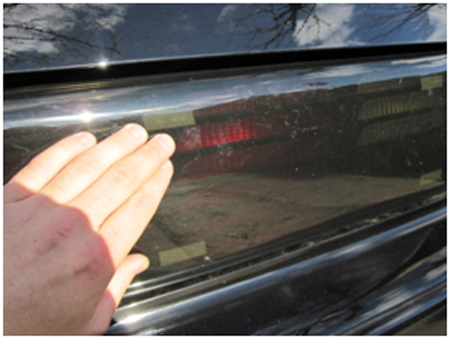

  2. Peel away the backing from the Velcro strips. Align cover carefully over tail light, but do not fully press down yet. Once the cover is centered over the light, firmly press down to fully seat the adhesive backing. Repeat for opposite side to complete the installation.

    Mustang Headlight Covers 87-93 4

Installation instructions provided by Manufacturer.
