Magnaflow Catback Installation Guide (94-98 GT and Cobra)

This Mustang Parts Installation Guide Works For

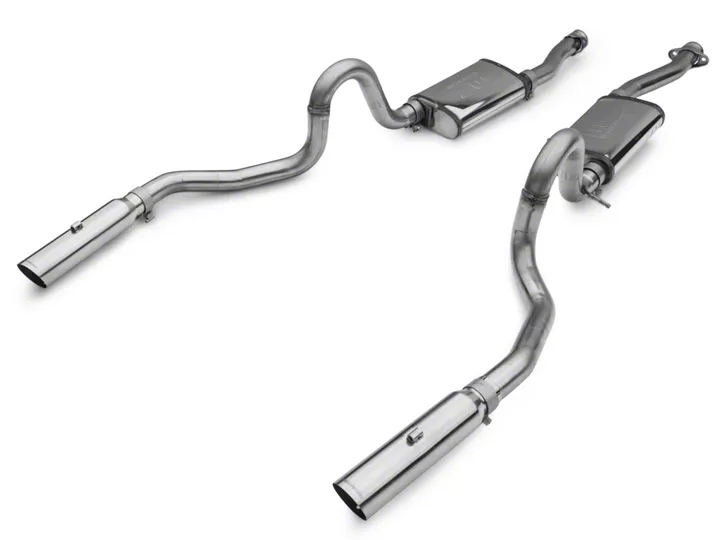

Magnaflow Catback Exhaust (94-98 GT, Cobra)DOWNLOAD PDF

Tools Required

Installation Time: 2 Hrs

Installation

  1. To begin removal of your OEM exhaust system you will need to cut the tail-pipes just behind the mufflers. Remove the tail pipes from the rubber insulators. Do not damage the OEM rubber insulators, as they will be reused to mount the new system. Next, unbolt the extension pipes from the H-pipe and remove the mufflers from their OEM rubber insulators. Do not discard the fasteners required to bolt the extension pipes to the mufflers, as they will be re-used.mufflerstailpipes
  2. Remove the existing muffler mount brackets, and replace them with the new brackets supplied in the kit. Do not discard the OEM mount fasteners, as they will be re-used. Refer to diagram #2 for installation of the new muffler mounts.dia2rearcar
  3. Starting at the H-pipe, begin installing your new exhaust system by bolting up the front extension pipes with the flanges supplied in the kit and the OEM fasteners. Working rearward, install the mufflers, tail pipes and tips, using the supplied clamps, hangers and fasteners. Leave all components loose until a final position has been set.

  4. Adjust all components for clearance of the frame, bodywork, and overall aesthetics. (MAGNAFLOW recommends at least 1/2" of clearance between the exhaust tips and the rear fascia to avoid heat related body damage or fire.) Once a final position has been chosen, tighten all hardware from front to rear, including H-pipe hardware, all U-clamps, exhaust tip clamps and exhaust tip slide hangers. The supplied band clamps must be VERY tight to properly align the pipes and prevent leaks (Approximately 65ft-lbs). U-bolt clamps should be tightened to approximately 30-35 ft-lbs. Inspect all hardware after 25-50 miles of operation, and re-tighten if necessary.

Installation instructions provided by Magnaflow
