How to install Chrome Headlights on your 1999-2004 Mustang

This Mustang Parts Installation Guide Works For

OE Style Headlights (99-04 All)DOWNLOAD PDF

Tools Required

Installation Time: (approx) 30 Minutes

Installation

Package Contents:

  • Right Headlight Housing
  • Left Headlight Housing
  • High/Low Headlight Bulbs
chrome-headlights-99-04-all

Installation Instructions:

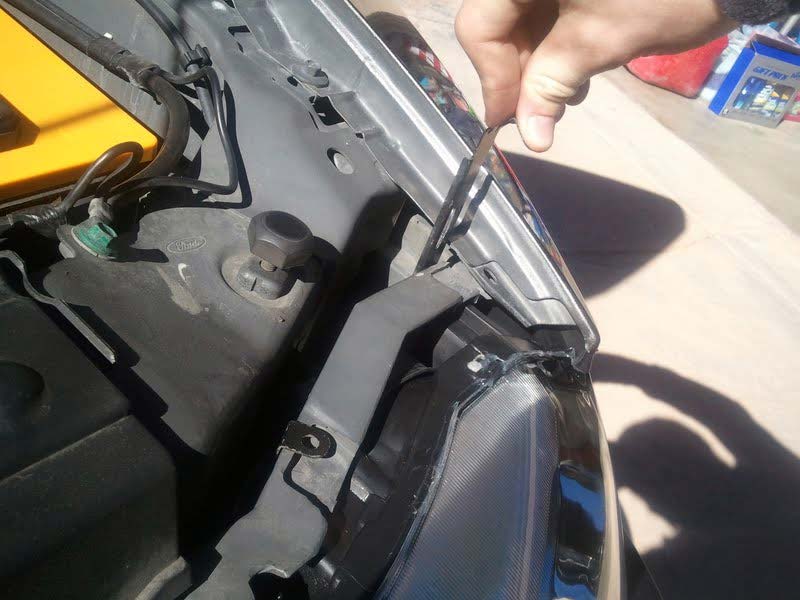

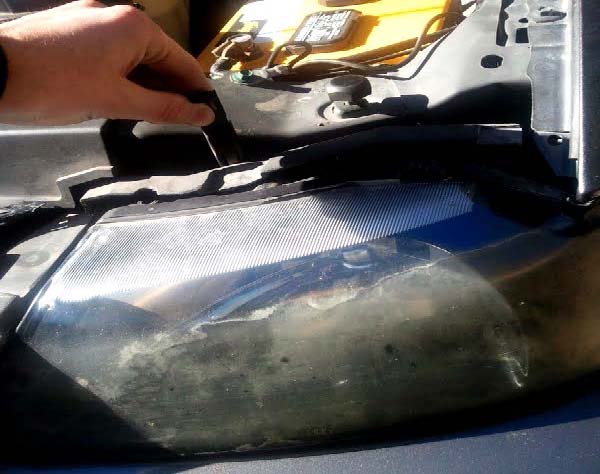

  1. Locate the (2) black pins on the top of the headlight housing that hold them in place.
  2. Place your palm on the housing, gently push it towards the engine and slide the black pins out vertically from the top of the housing.
  3. chrome-headlights-99-04-all

  4. After the pins are out, put them in a safe place because they will be reused for the new headlight.
  5. To get the housing out, pull firmly on the top and side of the housing towards your body. The housing should pop out fairly easily.
  6. Locate the plug connected to the blinker. Lift the clips on the plug and pull out gently. Occasionally, these clips will break off but it will work fine without them.
  7. Unplug the main headlight connection by lifting the clip and gently pull it out. Remove assembly from the car.

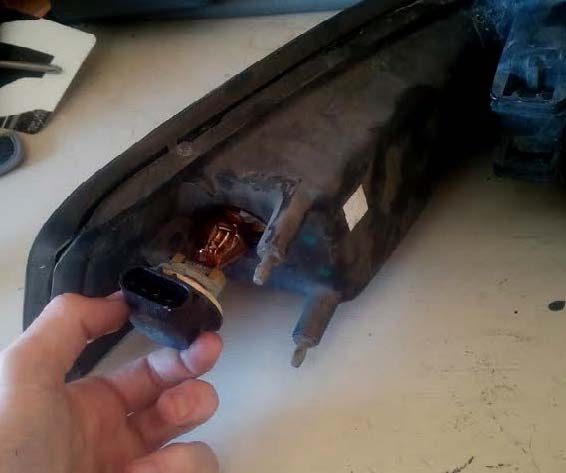

  8. Taking the housing to a counter or table, twist the plastic blinker housing counterclockwise to remove the blinker and attached bulb. Do not touch the bulb itself with your fingers.
  9. chrome-headlights-99-04-all

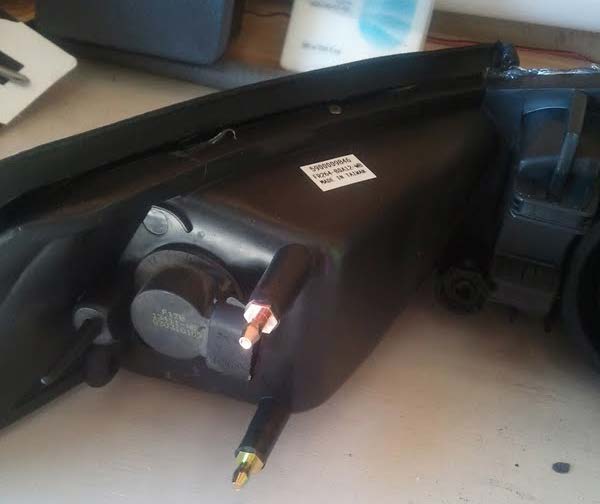

  10. Place the new housing on your workbench and install the blinker by screwing it in clockwise.
  11. chrome-headlights-99-04-all

  12. Take the housing back over to the car and plug in the blinker and the headlight.
  13. Set housing into place and push firmly until you are able to push the black pins back through. Sometimes, it may require a bit of force on the headlight to squeeze the pins through; the more force you put on the headlight, the easier the pins slide through.
  14. chrome-headlights-99-04-all

  15. Repeat steps for the opposite headlight!

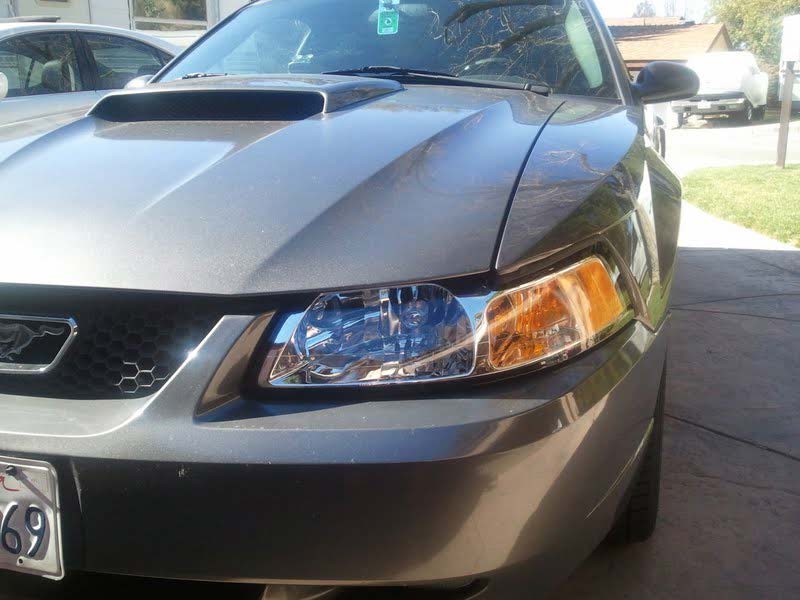

Enjoy your new pair of headlights!

chrome-headlights-99-04-all

Installation Instructions written by AmericanMuscle customer Bernt Powell 3.14.12
