How to Install Cup Holder Bezels on Your 2005-2009 Mustang

This Mustang Parts Installation Guide Works For

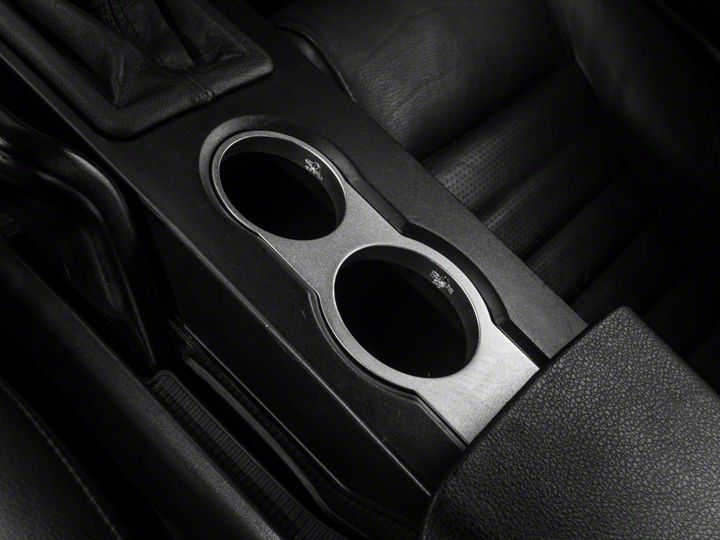

Modern Billet Chrome Cup Holder Bezel - GT Logo (05-09 All)DOWNLOAD PDF

Tools Required

  • Supplied Screws
  • 3/32 SAE or 2.5mm Metric Allen Wrench
  • Double-Sided Tape
  • Scissors
  • Damp & Dry cloth or paper towel
Installation Time: 5 Minutes

Installation

chrome-cup-holder-bezel-gt-logo-05-09-all

Installation:

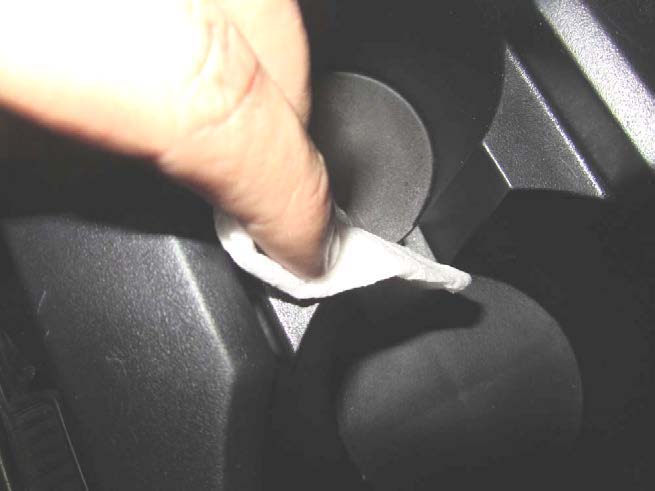

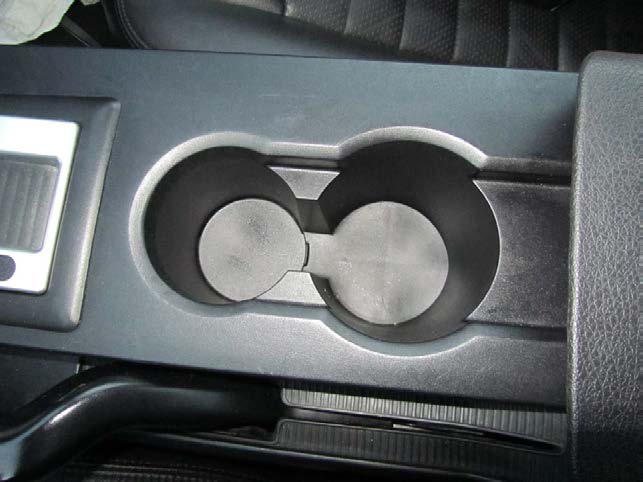

  1. Lift center console arm rest to free up room. Wipe off the right and left plastic inside the cup holders using the damp cloth/paper towel and then drying. This ensures the plastic is clean for the double-sided tape to be applied. The tape keeps the Cup Holder Bezel from moving around during normal use.
  2. chrome-cup-holder-bezel-gt-logo-05-09-all

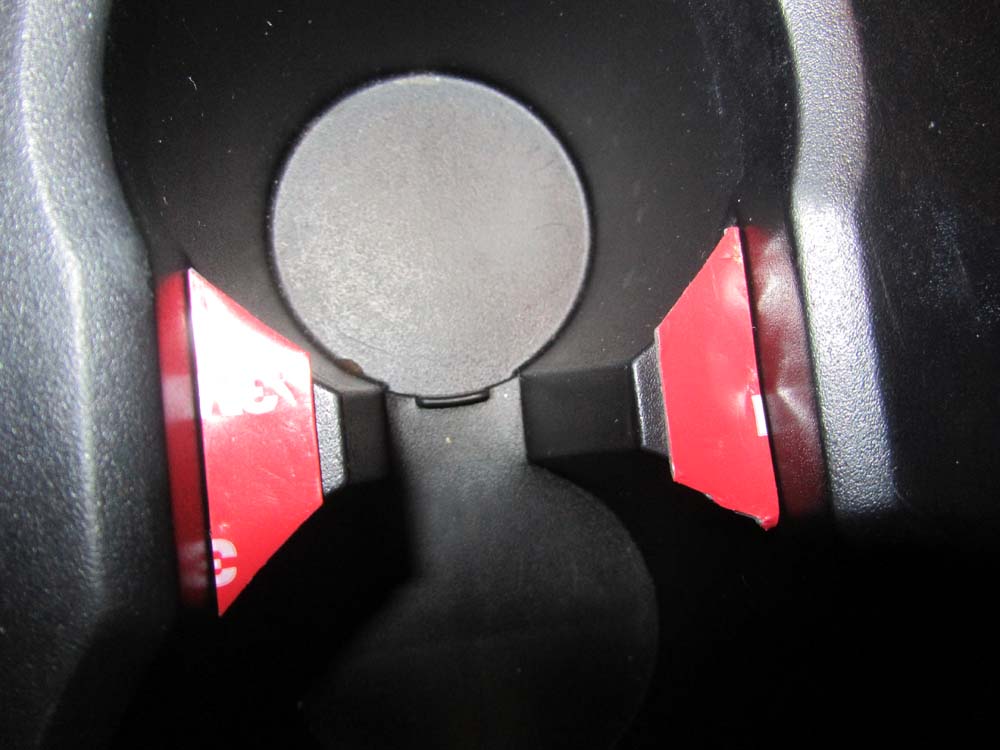

  3. Line up the double-sided tape on top of the plastic that is on the inside of the cup holders. Next, cut out the double-sided tape along the lines of the plastic so that when the bezel is placed inside the cup holder, there is no tape showing below it.
  4. chrome-cup-holder-bezel-gt-logo-05-09-all

  5. Press down on tape firmly when satisfied with alignment. Peel away the top red wrapper on the double-sided tape.

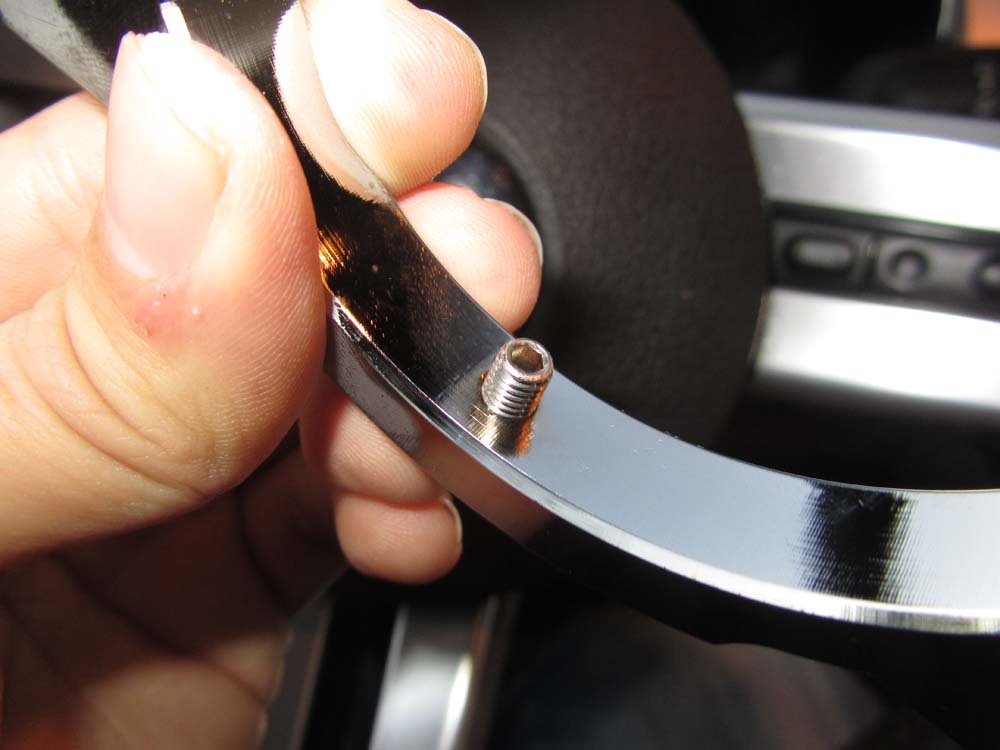

  6. Next, insert screws into the inner ring of the Cup Holder Bezel. Hand-twist the screws half way in so that they are snug, but not all the way through the other side.
  7. chrome-cup-holder-bezel-gt-logo-05-09-all

  8. Wipe off the bottom right and left hand side of the bezel where the bottom will come in contact with the double-sided tape.

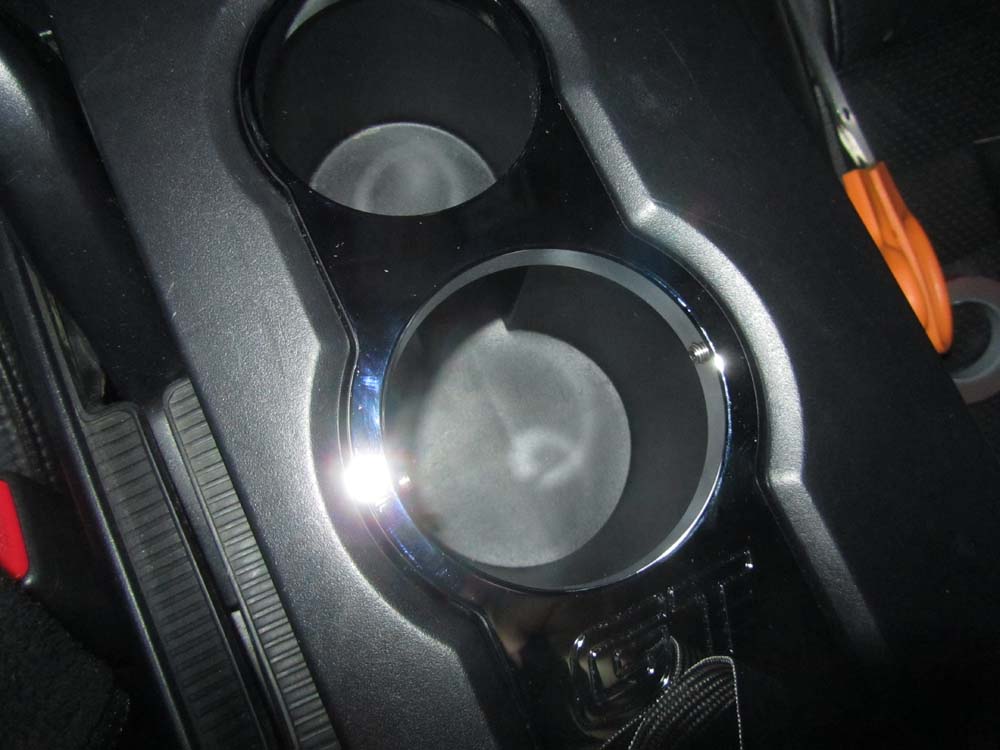

  9. Place the bezel into cup holders, pressing down firmly.
  10. chrome-cup-holder-bezel-gt-logo-05-09-all

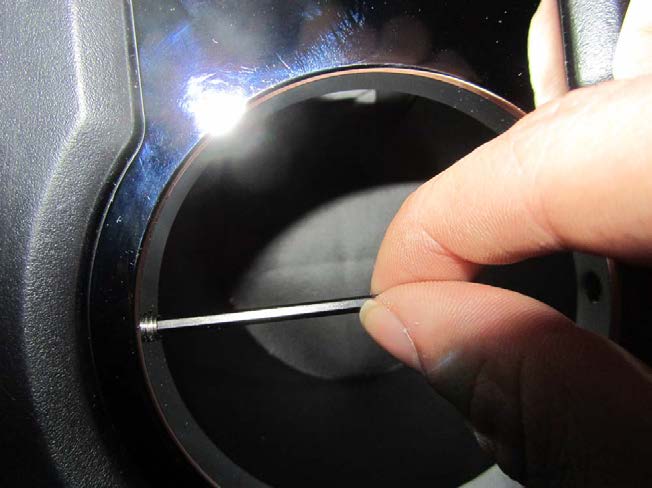

  11. Next, insert a 3/32 SAE or 2.5mm metric allen wrench into screw. Twist the first screw until it is snug but not completely tight and repeat for the other screw. Then, twist both screws until firmly tight.
  12. chrome-cup-holder-bezel-gt-logo-05-09-all

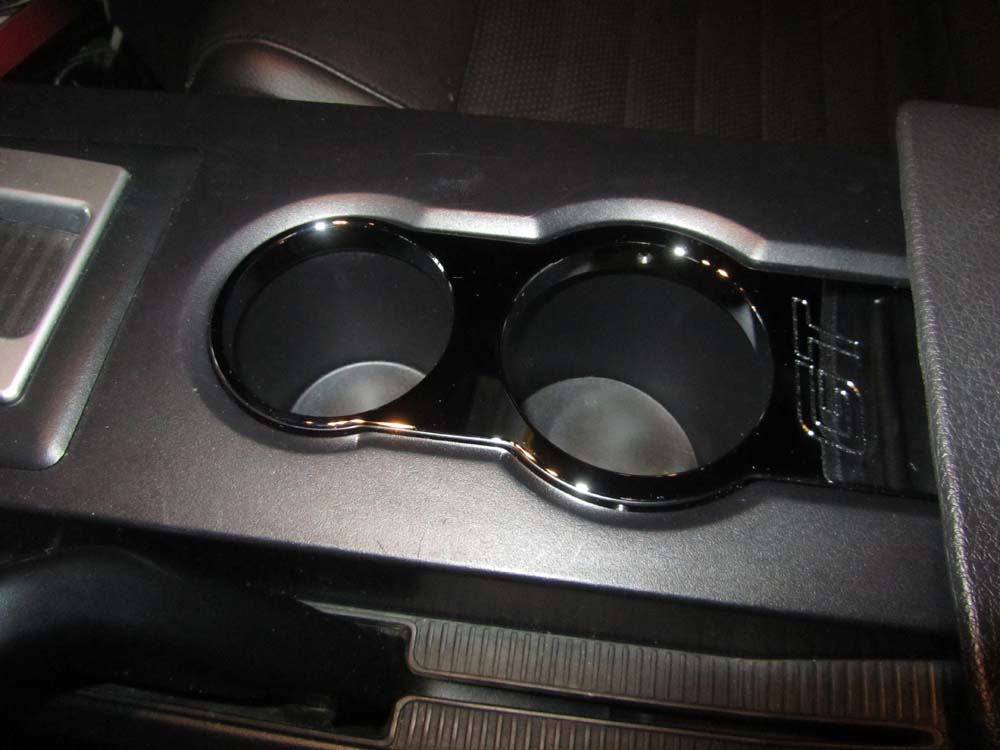

  13. Inspect the Chrome Cup Holder Bezel to make sure that it is snug. Lower center console arm rest back down into place. Installation of the Chrome Cup Holder Bezel is now complete.
  14. chrome-cup-holder-bezel-gt-logo-05-09-all

Installation Instructions written by AmericanMuscle customer Mark Pennio 1.20.12
