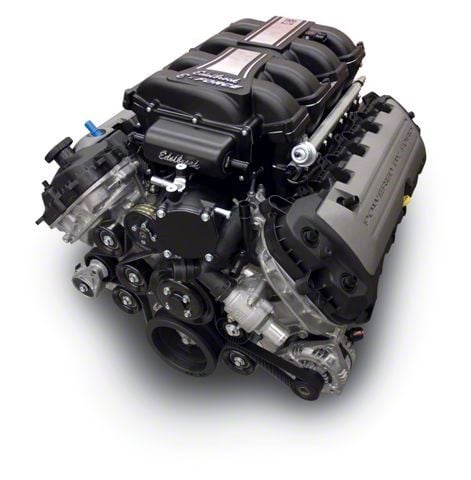

Edelbrock E-Force Stage 1 Street Supercharger Kit (11-13 GT)

Edelbrock E-Force Stage 1 Street Supercharger Kit (11-13 GT)
Click to Enlarge
Email
(2.0/5)
1 Reviews
OUR PRICE$6,445.99
Edelbrock Mustang Parts
Item # 56541
Market Price $6,999.99You Save 8% ($554.00)
Ships in 2-3 weeks

Product Features

  • Stage 1 - Street System
  • 559 HP and 503 ft./lbs of TQ
  • 3.75" Supercharger Pulley
  • 15" long runners for increased low-end torque
  • Installs under the stock hood
  • 50 State Legal - Carb E.O# D-215-77
  • Made in the U.S.A.
  • Fits 2011-2013 5.0L GT Mustangs
More Power. This E-Force Stage 1 Street Supercharger Kit was exclusively designed by Edelbrock to provide instant, reliable and safe horsepower for a stock 5.0L Coyote Mustang with low boost for minimum stress on the engine to produce an outstanding 559 HP and 503 ft./lbs of TQ.

Unique Design. The heart of the E-Force Supercharger is the all new Eaton Gen VI TVS® Supercharger rotating assembly that has been integrated into the intake manifold for a seamless design with minimal components to eliminate the possibility of vacuum leaks. Edelbrock's unique inverted supercharger assembly is placed low in the valley allowing for 15" long intake runners for maximizing low end torque.

Stay Cool. Edelbrock uses the largest intercooler available. Keeping the air cool is a 110 square inch high capacity air-to-water intercooler and full face low temperature heat exchanger, making it "coolest running supercharger" on the market today.

50 State Legal. Unlike the competitors, Edelbrock Superchargers are 50 state emissions legal under Carb E.O# D-215-77.

Application. This Edelbrock E-Force Stage 1 Supercharger Kit is specifically designed for use on the 2011-2012 GT Mustang with the all new Coyote 5.0 engine. Note: Optional Edelbrock Vehicle Warranty Available - Click for Details
Note: There is a two week wait period before shipment once an order is placed.

Features:
  • 559 HP and 503 ft./lbs of TQ at 5 lbs. of boost
  • 2300cc (140 cubic inch) Eaton® TVS® GEN VI rotor assembly
  • Unique intake manifold design with 15" long runners for increased low-end torque
  • 110 square inch high capacity air-to-water intercooler
  • 100,000 mile self-contained oiling system
  • Installs under the stock hood while maintaining factory accessories
  • Made in the USA

Installation Time:

(approx) a Day

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

Hardware included:
  • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
  • Cast Aluminum Front Drive Bracket
  • Heavy Duty Automatic Belt Tensioner
  • Large 110 Sq-in Intercooler
  • Full Face, Low Temp, Heat Exchanger for Intercooler
  • Goodyear Gatorback Serpentine Belt
  • Electric Intercooler Water Pump
  • Intercooler Recovery Tank
  • Custom Molded Intercooler Hoses
  • Fuel Injectors (42lb/hr)
  • Supercharger Pulley
  • Steel Idler Pulleys with Heavy Duty High Speed Bearings
  • High Flow Panel Air Filter for Stock Airbox
  • Extruded Aluminum Fuel Rails
  • Handheld Calibration Module, Preloaded w/ all Tunes
  • Plug & Play Electrical Harness
  • Installation Hardware

What's in the box?

Hardware included:
  • Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
  • Cast Aluminum Front Drive Bracket
  • Heavy Duty Automatic Belt Tensioner
  • Large 110 Sq-in Intercooler
  • Full Face, Low Temp, Heat Exchanger for Intercooler
  • Goodyear Gatorback Serpentine Belt
  • Electric Intercooler Water Pump
  • Intercooler Recovery Tank
  • Custom Molded Intercooler Hoses
  • Fuel Injectors (42lb/hr)
  • Supercharger Pulley
  • Steel Idler Pulleys with Heavy Duty High Speed Bearings
  • High Flow Panel Air Filter for Stock Airbox
  • Extruded Aluminum Fuel Rails
  • Handheld Calibration Module, Preloaded w/ all Tunes
  • Plug & Play Electrical Harness
  • Installation Hardware
checkmark
Fitment:
  • GT 11, 12, 13
  • Boss 12
