LED Sequential Chase Tail Light Kit - Plug-and-Play (05-09 All)

LED Sequential Chase Tail Light Kit - Plug-and-Play (05-09 All)
Click to Enlarge
OUR PRICE$249.99
Market Price $279.99You Save 11% ($30.00)
Item # 12176
(4.8/5)26 Reviews
Ships the same business day
Email

Product Features

  • Chaser sequence
  • Cool Retro Styling
  • Modern LED Technology
  • Additional Safety
  • Plug-and-Play Design
  • Fits all 2005-2009 Mustangs
Retro Styling. Finish the cool retro styling of your S197 Mustang with a set of LED Sequential Tail Lights. Sequential tail lights were originally used on the Shelby Mustangs from 1968 to 1970, and now you can have them for your very own modern pony.

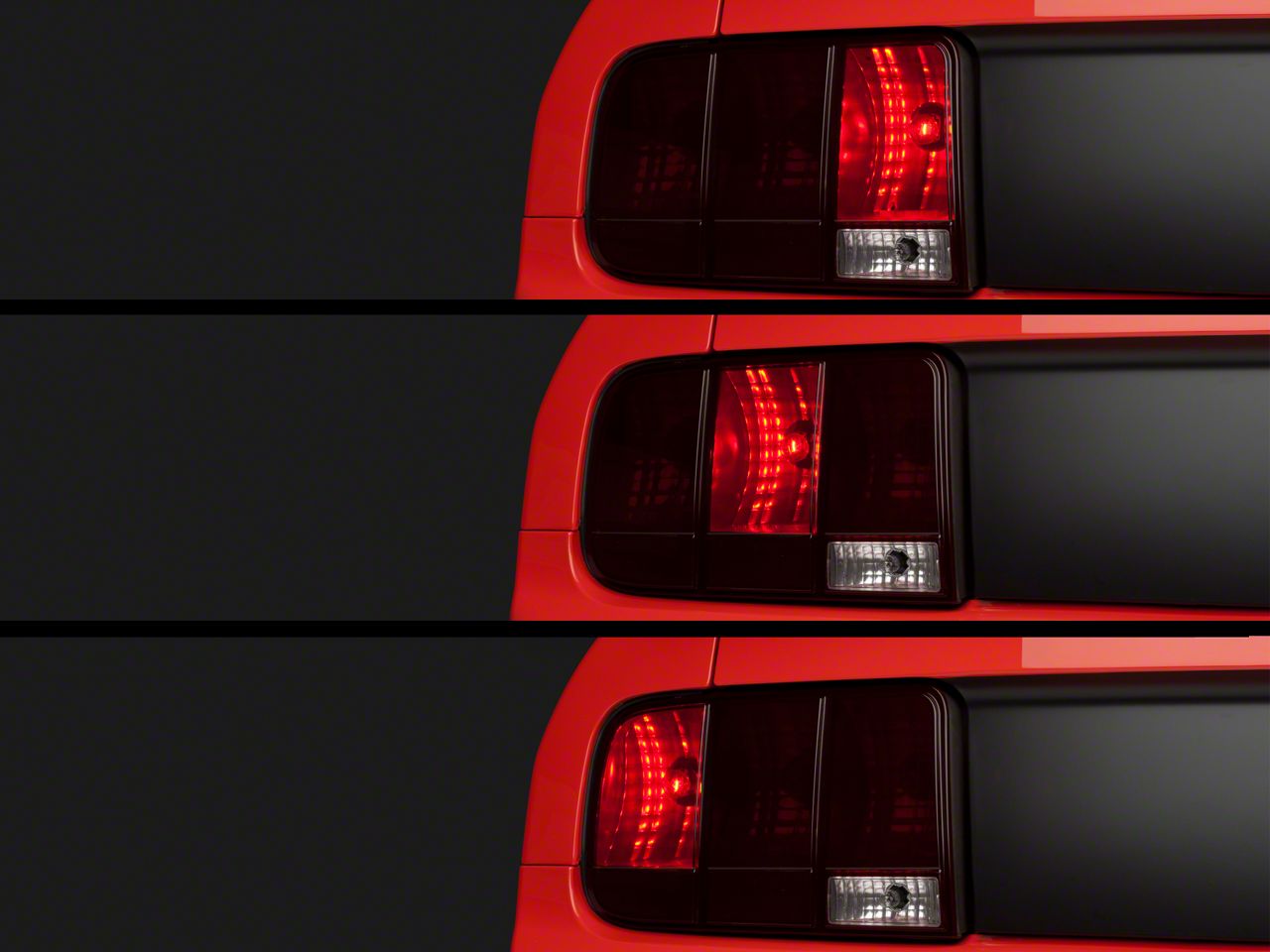

Chaser Sequential. When activated the turn signals or hazard lights will sequence from the center light out and repeat until switched off. When the brakes are applied, the tail lights will sequence once and then stay lit during braking.

Added Safety. This Chaser Sequential Kit replaces those weak factory bulbs with numerous high intensity LED's that illuminate quicker and brighter than standard incandescent bulbs to improve your driving safety.

Easy Installation. This LED Sequential Chase Tail light Kit is a direct plug-in replacement for the stock factory wiring harness. Simply unplug the stock harness and plug in the new sequential harness in it's place, it's that easy.

Application. This chaser kit is designed to fit all 2005 to 2009 Mustangs, including the V6, GT, Bullitt, and Shelby GT500 models.

Technical Note: These Sequential Chaser Tail Lights will not work with aftermarket LED replacement tail lights.

Installation Time:

(approx) 30 Minutes

Difficulty Level:

Simple installation for anyone.

What's in the box?

  • (6) LED Bulbs
  • (2) Wiring Harness
This video will show you how to install the splice in LED sequential chase tail light kit for all 05-09 Mustangs. Step 1, with trunk open, remove the lower push in retainers holding rear cover in place, one on each side. Step 2, remove the upper retainer nuts also holding rear cover in place, one on each side. Step 3, remove rear cover. Step 4, remove the 3 nuts attaching tail light to body of vehicle with a ratchet and 10mm socket. Step 5, unplug tail light at wiring harness connector. Step 6, remove tail light from vehicle. Step 7, remove innermost bulb and replace with LED bulb from the kit that contains a red wire attached to it. After installing bulb, feed red wire under the rubber gasket attached to the socket. Insert socket back into housing and move onto remaining sockets. Now you’re going to simply replace the remaining two bulbs with the LED bulbs from the kit. Going back to the first socket, install one of the 3 included quick splice connectors to the black wire. Moving onto the middle socket, connect a quick splice connector to the red wire with the white tracer. Finally, on the last socket, connect a quick splice connector to the red wire. Take the included module, and plug the red wire into the red wire that is attached to the first LED bulb you installed. Then, connect the black wire from the module to the black wire that you installed the first quick splice connector to. Then, connect the remaining white module wires to the remaining quick splice connectors. Then, simply tuck all the wires into the assembly. Step 8, install tail light assembly back onto vehicle and test lights for proper sequencing.
... READ MORE

What's in the box?

  • (6) LED Bulbs
  • (2) Wiring Harness
checkmark
Fitment:
  • V6 05, 06, 07, 08, 09
  • GT 05, 06, 07, 08, 09
  • GT500 07, 08, 09
  • Bullitt 08, 09
