Magnaflow Axle-Back Exhaust ('05-'09 GT, GT500) - Installation Instructions

This Mustang Parts Installation Guide Works For

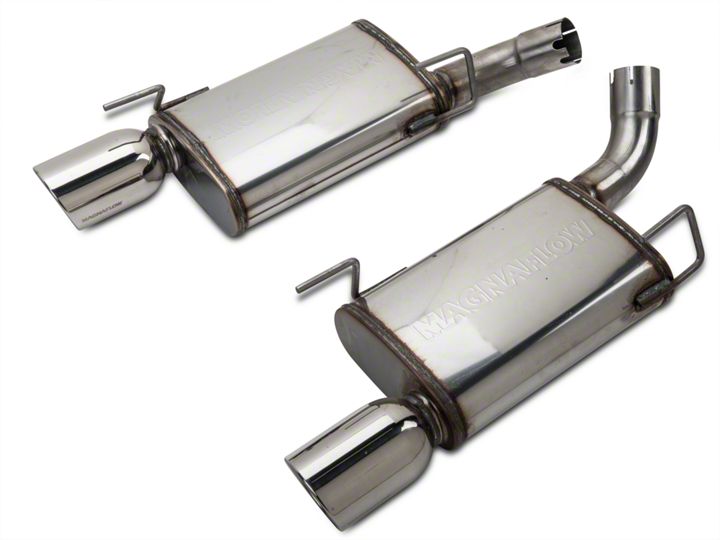

Magnaflow Axle-Back Exhaust (05-09 GT; 07-09 GT500)DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 2 Hours

Installation

  1. Disconnect the vehicle's battery before removal of the OEM exhaust. This will allow the computer to reset itself with the new system and prevent electrical accidents. To remove the OEM exhaust system, unbolt the clamps fastening the muffler inlets to the over-axle pipes. Unbolt the muffler hanger brackets from the frame, and remove the mufflers from the vehicle (The brackets will be reused). Do not damage the OEM rubber insulators, as they will be used to mount the new system.axlebackmuff
  2. Remove the OEM hanger brackets from the mufflers and reattach them to the frame of the vehicle. Install the new mufflers by fitting the welded hangers into the rubber insulators in the brackets. Fit the new mufflers to the overaxle pipes using the supplied band clamps. Leave all the clamps and fasteners loose for the final adjustment of the complete system.
  3. With all components mounted loosely, adjust the system for overall aesthetics and clearance of frame & bodywork. (MAGNAFLOW recommends at least 1/2" of clearance between the exhaust tips and the rear fascia to avoid heat related body damage or fire.)

  4. Once a final position has been chosen for the new system, evenly tighten all fasteners from front to rear. The supplied band clamps must be VERY tight to properly align the pipes and prevent leaks (Approximately 65 ft-lbs). Inspect all hardware after25-50 miles of operation, and re-tighten if necessary.

Installation instructions provided by Magnaflow
