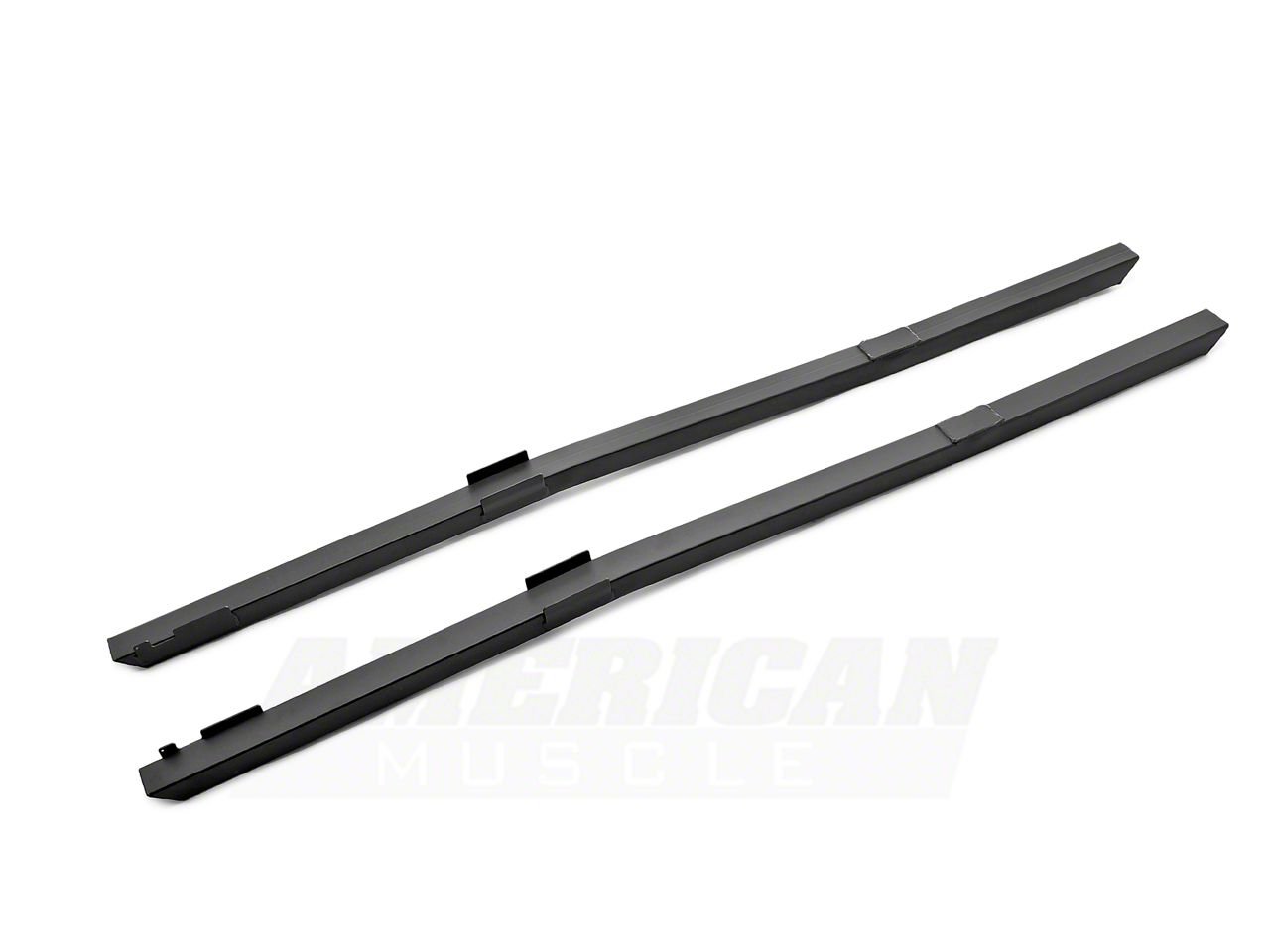

Maximum Motorsports Full Length Subframe Connectors - Black (79-04 All)

Maximum Motorsports Full Length Subframe Connectors - Black (79-04 All)
Click to Enlarge
Email
OUR PRICE$164.99
Maximum Motorsports Mustang Parts
Item # 47023
Market Price $184.99You Save 11% ($20.00)
AmericanMuscle no longer carries the Maximum Motorsports Full Length Subframe Connectors - Black (79-04 All). Please check out Ford Mustang Subframe Connectors, Braces & K Members for an updated selection.

Product Features

  • XL Series Full Length subframe connectors
  • Powered Coated Black Finish
  • 95% Stronger then the other brand
  • 53% stronger then MM previous connectors
  • Extends from Rear control arm to the firewall for maximum results
Improved Design. Maximum Motorsports has stepped it up again. Not that you should expect any less from the innovator of the subframe connectors but this time they have surpassed themselves. With 53% more rigidity then their standard subframe connectors and 95% more then most on the market, these will keep your car straight as an arrow whether it’s off the line performance or back road turns you need to tackle.

Strength. The XL series subframe connector is longer, thicker, and mounts with more surface area to weld then any other on the market. It’s 1.5” x 2” x .083” thick rectangular tubing extends from the rear control arms mounting location near the rear tires, all the way to the firewall just before the front tires. With that much coverage you’ll be sure to have the most a strong bond and plenty of clean metal to weld them onto.

Application. Maximum Motorsports designed these subframe connectors to fit all 1979 to 2004 V6, GT, Bullitt, Mach 1, and Cobra Mustangs. Even Roush and Saleen Edition Mustangs can benefit from this upgrade as well.

Technical Note. Test fitting before welding. 1996-98 Cobras will require modifications to the transmission crossmember mounting flanges.

Installation Time:

(approx) 3 Hours

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

  • (2) Subframe connectors
  • (2) Seat brackets
  • (4) Bolts
  • (4) Nuts
  • (8) Flat washers
  • (2) Flat brackets

Installation Guides:

What's in the box?

  • (2) Subframe connectors
  • (2) Seat brackets
  • (4) Bolts
  • (4) Nuts
  • (8) Flat washers
  • (2) Flat brackets
checkmark
Fitment:
  • V6 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
  • GT 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
  • Cobra 94, 95, 96, 97, 98, 99, 01, 03, 04
  • Mach 1 03, 04
  • Bullitt 01
  • Foxbody 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93

About Maximum Motorsports

Maximum Motorsports Mustang Parts
Maximum Motorsports products are engineered and manufactured right here in the USA. They’re well respected as a leading developer of state-of-the-art Ford Mustang suspension systems and performance parts. Their products are high in quality and are designed to give you the best results whether you’re taking your Mustang to the track or to the street. That is what makes MM the overwhelming choice of knowledgeable enthusiasts. For the best high performance suspension parts for the Mustang, stick with the leader in suspension design, Maximum Motorsports!
