How to install a Mishimoto 12in Performance Slim Electric Radiator Fan on your Mustang

This Mustang Parts Installation Guide Works For

Mishimoto 12 in. Performance Slim Electric Radiator Fan (79-14 All)DOWNLOAD PDF

Tools Required

Installation Time: (approx) 2 Hours

Installation

FUNCTIONS AND FEATURES

The Mishimoto universal fan mount kit is used to mount a Mishimoto radiator fan to any Mishimoto radiator. Great for custom applications, the Mishimoto fan can be mounted in any convenient position on the radiator.

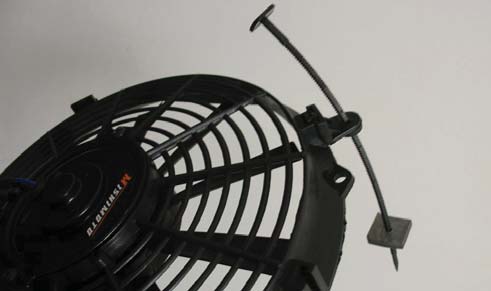

01 | INSERT FASTENERS

Insert plastic fastener through the fan mount holes.

mishimoto-12in-performance-slim-electric-radiator-fan-79-12-all

02 | PUNCTURE FOAM PROTECTIVE PAD

Puncture the center of the foam protective pad with plastic fastener and slide through until adhesive side sticks to fan mounting holes.

mishimoto-12in-performance-slim-electric-radiator-fan-79-12-all

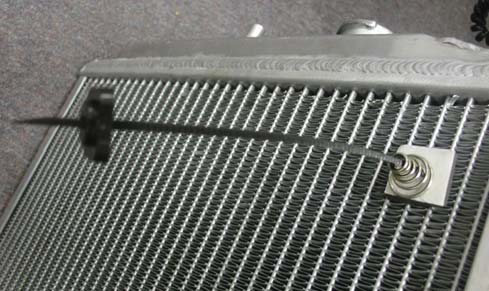

03 | INSTALL SECOND PROTECTIVE PAD

  1. Slide plastic fastener through the radiator fins and install a second protective pad to the radiator with the adhesive facing out.
  2. Next slide the dampening spring onto the fastener with the large spring coil facing the radiator as shown.
  3. Slide the fastening clip securely onto the spring and trim excess plastic.
mishimoto-12in-performance-slim-electric-radiator-fan-79-12-all

NOTE

Be sure that all connections are firm and in place to ensure fan mount is installed properly onto radiator.
