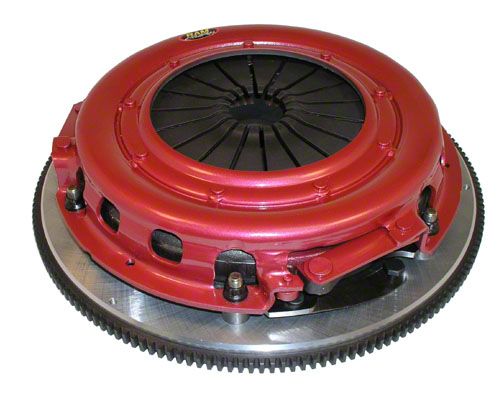

RAM Street Dual Disc Clutch w/ Flywheel - 10 Spline - 8-Bolt (96-10 4.6L)

RAM Street Dual Disc Clutch w/ Flywheel - 10 Spline - 8-Bolt (96-10 4.6L)
Click to Enlarge

About RAM

RAM Clutches and Flywheels
Since the advent of the fox bodied Mustang in the early 80s, RAM Clutches has been at the forefront of Ford clutch technology. With systems from stock replacement to cutting edge street dual disc systems like the Force 9.5 and Force 10.5 to hydraulic bearing and billet flywheel solutions, you can depend on RAM for for the best in driveability and holding power for your street or race Mustang. RAM products are designed and manufactured in house to insure the best quality products at all times.
... READ MORE
OUR PRICE$1,299.99
Market Price $1,449.99You Save 10% ($150.00)
Item # 34018
AmericanMuscle no longer carries the RAM Street Dual Disc Clutch w/ Flywheel - 10 Spline - 8-Bolt (96-10 4.6L). Please check out Mustang Clutch Kits for an updated selection.
Email

Product Features

  • Smooth driveability
  • Handles 1000+ horsepower
  • Includes both clutch and flywheel
  • SFI Certified
  • Fits 96-10 4.6 V8 w/ 8 bolt crank
Clutch. The RAM Street Dual Clutch uses RAM's 300 series steel backed friction discs in a sprung hub top/solid hub bottom arrangement. The sprung clutch disc features an eight spring hub assembly with urethane encapsulated springs for added durability, and a marcel spring that helps eliminate the 'on/off' switch operation of most dual disc clutches. The holding capacity for this clutch is in excess of 900 ft.-lbs., yet the engagement is smooth enough for everyday driving.

Flywheel. The included RAM Billet Aluminum Flywheel is surface ground for a flat, parallel mating surface and balanced to the factory specification within a ounce inch. Also the Aluminum Flywheels feature a inch thick steel friction surface for better heat dissipation without distortion that can occur with thinner inserts.

Kit Includes. This RAM Dual Disc Clutch kit comes complete with a 10-spline 10.5" Diameter Disc, a 10.5" Diameter Clutch Plate, and a 8-bolt Aluminum Flywheel. Throwout bearing and alignment tool are not included.


Clutch Kit Specifications
Manufacturer: RAM Clutches HP/Torque Rating @ Flywheel:

1000 HP

Disc Dimensions: 10.5", 1 1/16-10 SFI Approved: Yes
Material: Organic Hardware Included:

Pressure Plate, Clutch Disc, Flywheel



Flywheel Specifications
Manufacture: RAM Clutches Bolt Pattern: 8 Bolt
Material: Billet Aluminum SFI Certifited: Yes

Installation Time:

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

Hardware included:
  • Clutch Disc
  • Clutch Plate
  • Aluminum Flywheel

What's in the box?

Hardware included:
  • Clutch Disc
  • Clutch Plate
  • Aluminum Flywheel
checkmark
Fitment:
  • GT 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10
  • Cobra 96, 97, 98, 99, 01, 03, 04
  • Mach 1 03, 04
  • Bullitt 01, 08, 09
checkmark
Known Exceptions:
Fits 4.6L V8 with a 8 bolt crank
