How to Install a Throttle Body Spacer for 2005-2010 Mustang GT

This Mustang Parts Installation Guide Works For

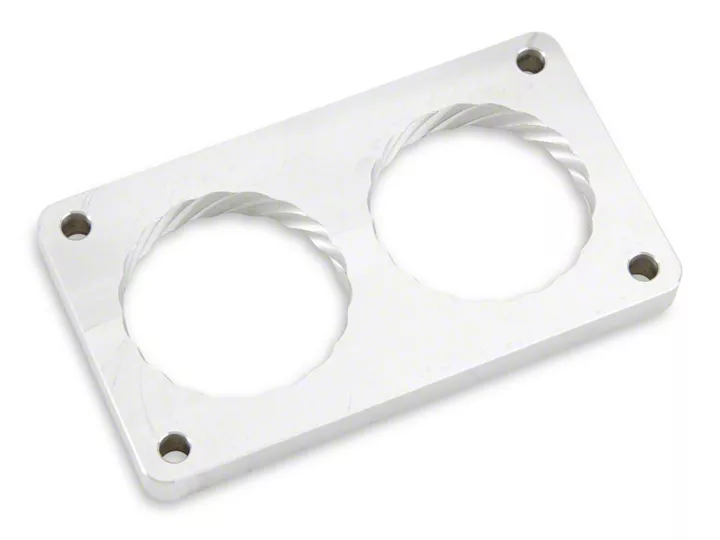

SR Performance Throttle Body Spacer (05-10 GT)DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 60 Mins


  1. Remove air intake to gain access to throttle body.
  2. Once you have access to throttle body remove two 8mm bolts(top) and two 10mm bolts (bottom) securing throttle body to upper intake plenum.

    Guide 80306 Picture 01

  3. Pull throttle body away from the plenum and slide in the spacer and supplied gasket. Make sure the gasket goes on the throttle body side as shown.

    Guide 80306 Picture 02

  4. Re-install the throttle body to the plenum with the supplied bolts. Re-install you air intake to complete the installation.
