Top End Engine Kit (87-93 5.0L)

Market Price $2,249.99 You Save 11% ($250.00)

$1,999.99 (kit)

FREE Shipping
  • Item 99941
Out of Stock Notify Me Choose options to add to cart

Features & Details

  • Bolt on More Horsepower
  • Complete Top End Kit
  • Improves Air Flow Over Original GT-40 Heads
  • Lightweight Aluminum Construction
  • Includes GT40X Heads, XE264HR Stage I Camshaft and Typhoon Intake Manifold
  • Fits 1987-1993 5.0L Mustangs
More Power. Increase the horsepower and torque output of your push rod 5.0L engine with a Top End Engine Kit from AmericanMuscle that includes Ford Racing Turbo-Swirl GT40X Aluminum Heads. This Top End Engine Kit will greatly improve airflow over the original stock design allowing you to bolt-on over 65 more rear wheel horsepower.

Kit Includes. This Top End Engine Kit includes Ford Racing Turbo-Swirl GT40X Aluminum Heads, Comp Cams Xtreme Energy XE264HR Stage I Camshaft, Typhoon Intake Manifold, Aluminum Valve Covers, Magnum Double Roller Timing Chain Set, ARP High Performance Series Head Bolt Kit, and a Ford Racing Engine Gasket Kit.

GT40X Aluminum Heads. Made from high quality 356-T6 aluminum castings, these Ford Racing GT-40X heads have an intake port volume of 178cc allowing for an intake flow of approximately 240 cfm at .550" lift (at 28" of H20) and an exhaust port volume of 62cc allowing for an exhaust flow of approximately 170 cfm at .500" lift (at 28" of H20). Machined for 1.94" Intake and 1.54" exhaust valve diameters.

Xtreme Energy Stage I Camshaft. This Comp Cams Xtreme Energy Hydraulic roller lifter cam is a good replacement upgrade for the High Output (HO) 5.0 that was featured in the later Foxbody Mustangs for mild street performance gains. Perfect for bolt on modifications to make good overall power with a smooth idle without sacrificing daily drive-ability.

Typhoon Intake Manifold. Completed in a natural satin finish this aluminum Professional Products Typhoon Intake Manifold will allow your Pony to breath much easier with no loss of low end torque. A 70mm Throttle Body is recommended for optimum performance of your 5.0 Mustang.

Application. This Top End Engine Kit is designed for use on the 1987 to 1993 Mustangs equipped with the iconic 5.0L V8 engine, including the LX 5.0, GT and SVT Cobra models.

Fitment: 1987 1988 1989 1990 1991 1992 1993 Details

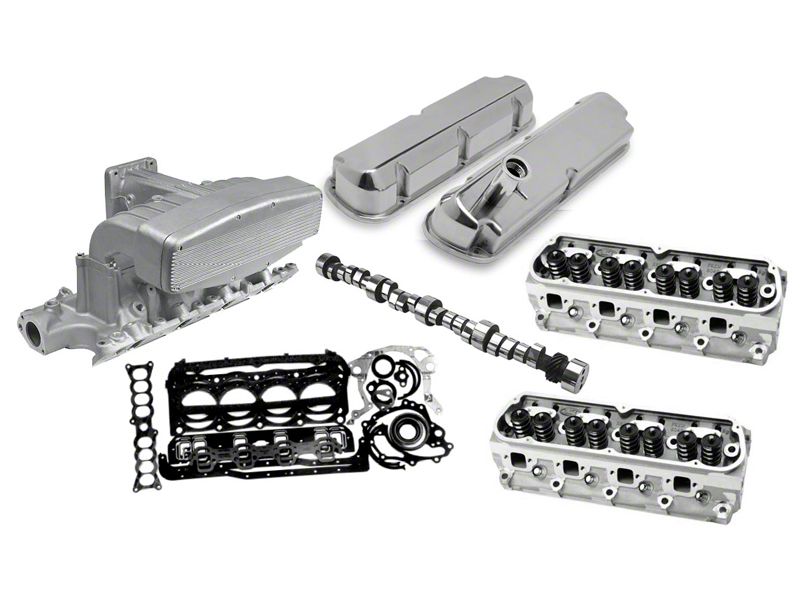

What's in the Box
  • (2) Ford Racing Turbo-Swirl GT40X Aluminum Head
  • (1) Comp Cams Xtreme Energy XE264HR Stage I Camshaft
  • (1) Professional Products Satin Typhoon Intake Manifold
  • (1) Upper to lower intake gasket
  • (1) Upper plenum to intake gasket
  • (2) Canton Aluminum Valve Covers
  • (1) Filler Cap
  • (1) Comp Cams Crank Sprocket
  • (1) Comp Cams Camshaft Gear
  • (1) Comp Cams Timing Chain
  • (20) ARP Bolts
  • (20) ARP Washers
  • Ford Racing Complete Engine Gasket Kit
Installation Info
Will it fit my Mustang?
  • Foxbody - 87, 88, 89, 90, 91, 92, 93

Most Helpful Reviews

5/5
Make real power

nothing beats a turbo for power, but be sure to up grade your braking system to be able to get it stopped, also sold here

Helpful (1)

4/5
More Power for you, Stang

I purchased this exact kit for my Mustang GT 89, which was completely stock. It works perfect with the stock pistons. I put new exhaust with Long tube headers with flow masters. Sounds Awesome. Along with ...

Read More
Helpful (1)

Overall Rating 4.2 out of 5 stars
Read All 5 Reviews

Customer Photos (2) Submit Your Photo

View All 2 Photos

You Might Also Like

15 Questions / 9 Answers

Ask a Question

about how much horsepower can i expect from this kit

efj2

  • The heads alone will yield 65+. All the parts are used help each other and you can expect about 90 rwhp or more

    Dmcj

    Good Answer (10) (4)

Answer This Question I need this answered (3) (0)

Pushrods Can you tell me what pushrods and rocker studs these heads would require?

Bodock

  • Designed for bolt-down rocker arms part number M-6564-B351 for a 1.6 ratio or use part number M-6564-A50 for a 1.7 ratio. As for pushrods, you're best off measuring before purchasing your set of hardened pushrods. The exact lengths really vary, and all these builds end up different.

    08ScarlettGT

    Good Answer (2) (1)

Show 1 more answer Answer This Question I need this answered (0) (1)

will the stock rockers work with this kit? and also wondering if possible to change the cam that also comes in the kit for a ford racing E303 cam?

bthunder

  • Stock rockers are a ok. I have this exact kit with the e303. I would recomend calling and speaking to Brick Spurio and see if he can help. I had the same question and during instal I decided to go roller rockers. Stamped rockers are fine but roller will get you more stability

    Dmcj

    Good Answer (1) (0)

Show 1 more answer Answer This Question I need this answered (0) (0)

can i use my stock rocker studs,, and do i need head bolt bushings

wildwilly

  • These heads are exactly like your e7s on top. Anything you would feel comfortable putting on e7s will work flawlessly with these heads. I have them on my engine

    Dmcj

    Good Answer (0) (0)

Answer This Question I need this answered (0) (0)

1988 Without MAF will this kit work without the MAF. My 88 doesn't have one.

nammys

  • It would work but you need a MAF in order for it to run properly. It would run much smoother with a MAF

    Dmcj

    Good Answer (0) (0)

Answer This Question I need this answered (0) (0)

Stock pistons? Will this top end kit work with stock pistons or will there be clearance issues?

Thunderin91

  • stock pistons will work just fine. the cam lift isnt too big so clearance will not be an issue. ran this on my stock 302 and it ran great.

    occdude31990

    Good Answer (1) (0)

Show 1 more answer Answer This Question I need this answered (0) (0)

More Products You Might Like

Customer Reviews (5) Write a Review

Overall Rating 4.2

out of 5 stars

Installation Time:Weekend

Installation Cost:$250-$500

  • Performance Gain 4.4 4.4
  • Fit 4.2 4.2



  • 5/5

    Installation Time: Full Day

    May 20, 2016

    Make real power

    nothing beats a turbo for power, but be sure to up grade your braking system to be able to get it stopped, also sold here

    MasterMechanic

    Year: 1992 Submodel: GT

    Helpful (1) (0)

  • 4/5

    Installation Time: Weekend

    May 14, 2015

    More Power for you, Stang

    I purchased this exact kit for my Mustang GT 89, which was completely stock. It works perfect with the stock pistons. I put new exhaust with Long tube headers with flow masters. Sounds Awesome. Along with that I purchased 1.7 rockers, lifters, push rods, and spark plug wires 9mm all Ford Racing, also has upgraded alternator to130 amps, 70mm throttle body paired with MAF, cold air intake and a MSD distributor has stock injectors. The car also has a Bama Chip onboard as well. As for the build there were some issues with gaskets that were miss matched and some nuts and bolts that did not match as I thought they would. I'm not sure of the new horse power but it has a lot of new Ponies in the stable, and they love to run... Some things to note, I drive this car almost daily. It has over 10k miles on it since the rebuild. I changed the oil frequently for the first 5k miles. I'm now using lucus oil stabilizer. Wow! I notice a difference. I forgot to mention that the hood now sits on top of the air intake Manifold, does not hinder performance but I know it's rubbing.

    GIJim

    Year: 1989 Submodel: GT Margate, FL

    Helpful (1) (0)

  • 4/5

    Installation Time: Weekend

    September 20, 2013

    nice power gain

    nice power gains for the buck.I would recomend this kit for someone on a budget and looking some nice power gains.

    wildwilly

    Year: 1987 Submodel: GT Prince Edward Island, Canada

    Helpful (1) (1)

  • 4/5

    Installation Time: Shop Install

    Installation Cost: $250-$500

    August 08, 2013

    great kit but needs few things added

    great kit i have yet to run it but you will need rocker arm studs and smog plugs which are threaded inserts they should provide in the kit rocker arms were like $50 and the inserts i had to get off another site for $10 but besides that my mechanic and I had easy time doing the install.

    kenpoman

    Year: 1990 Submodel: GT Brownsville, PA, USA

    Helpful (1) (1)

  • 4/5

    Installation Time: Weekend

    June 12, 2013

    overall good kit

    the only thing this kit doesn't include are the studs for the rocker arms. other than that, this kit is pretty good.

    occdude31990

    Year: 1988 Submodel: Other Queens, NY, USA

    Helpful (1) (3)
