Mustang Projector Headlights Installation Guide

This Mustang Parts Installation Guide Works For

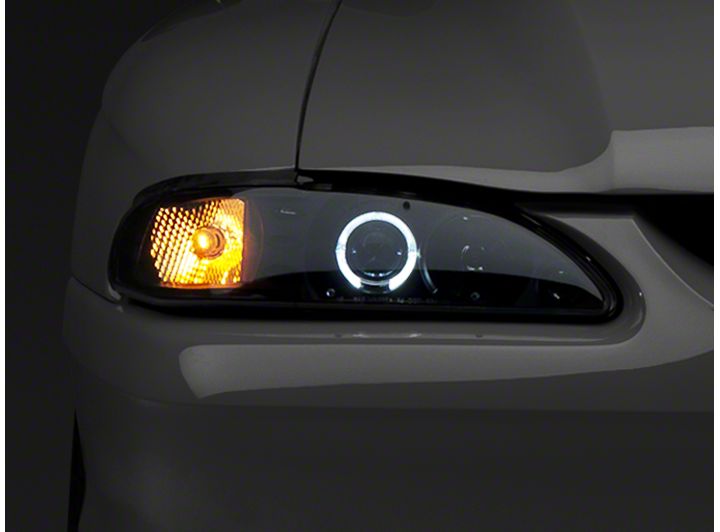

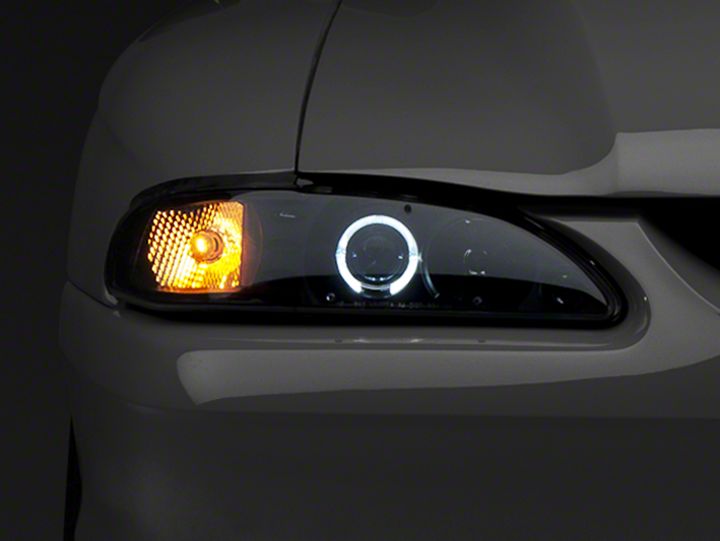

Raxiom Smoked Projector Headlights - LED Halo (94-98 All)DOWNLOAD PDF

Tools Required

  • Flat head screwdriver
  • 4mm and 10mm socket set
  • Some cutting is required in step 7
  • An air saw or a high speed air grinder
Installation Time: 2 Hrs

Installation

  1. Remove the top upper head light clip

    headlight-clip

  2. Remove the stock bulbs from the headlight lens
  3. Then locate the plastic tabs and push them in to allow the headlight to be removed from the car
  4. Then you can unplug the stock bulbs from the factory plugs
  5. Using an air saw or a high speed air grinder, cut out the factory headlight bucket to allow room for the projector lens

    bucket-cutout

  6. Plug in the wire adapter from the projector light
  7. Re-install headlight and the top upper clip

    headlight-topcl

  8. Using your 4mm socket wrench on the back of the headlight bolt, you can adjust the light up or down
  9. Check to make sure the lights are functioning before operating the vehicle
