How to install 3-Light LED Tail Lights on your 1999-2004 Mustang

This Mustang Parts Installation Guide Works For

Chrome 3-Light LED Tail Lights (99-04 GT, V6, Mach 1)DOWNLOAD PDF

Tools Required

  • Trip Pad Remover
  • 11mm Box Wrench
  • Flat Head Screwdriver
Installation Time: (approx) 2 Hours

Installation

  1. (4) plastic clips location
  2. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

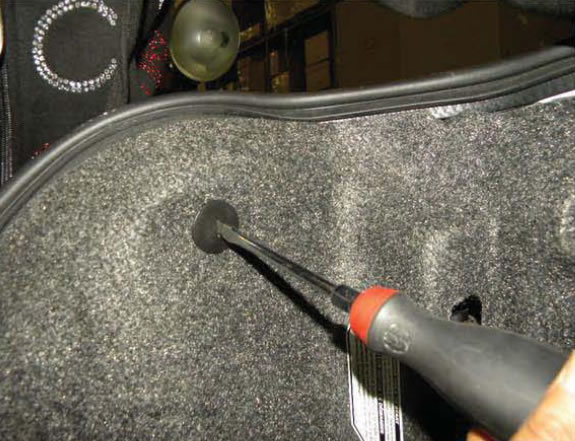

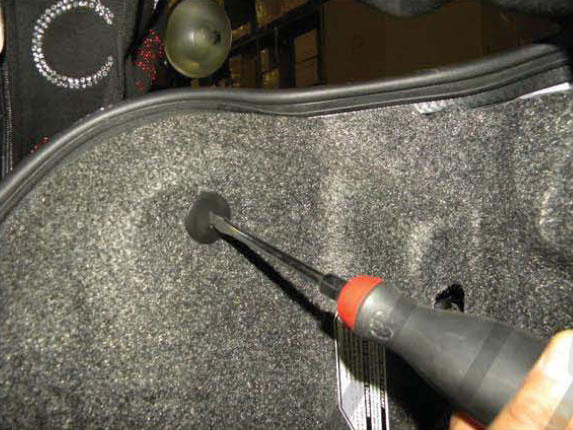

  3. Remove the (4) plastic clips
  4. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

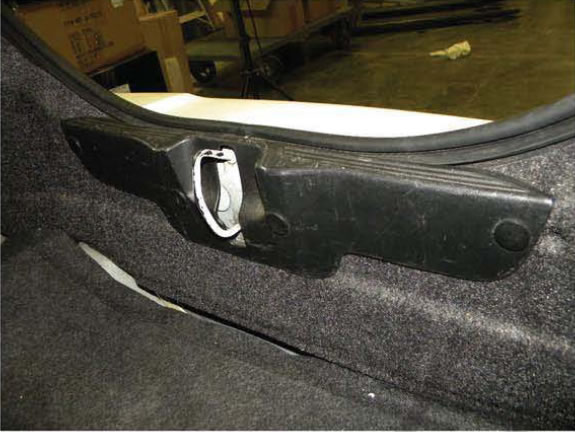

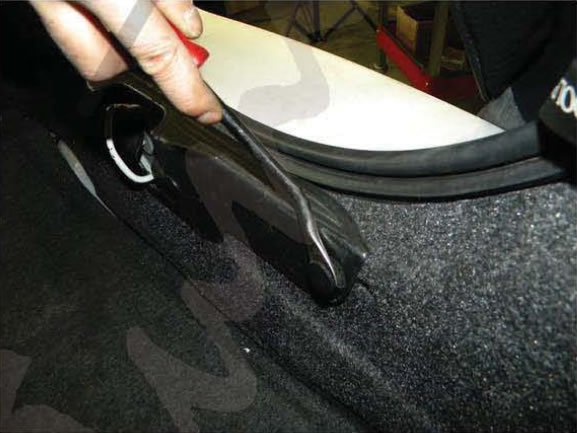

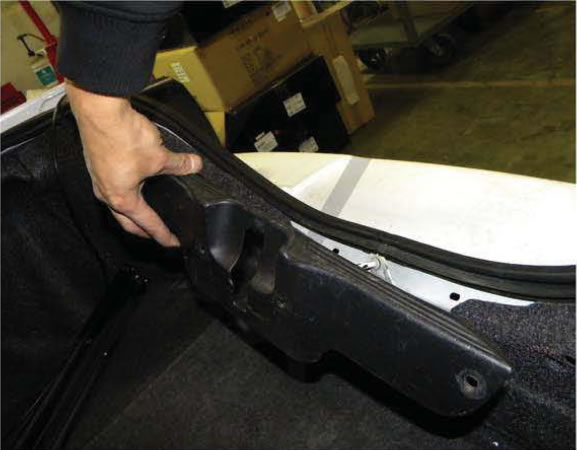

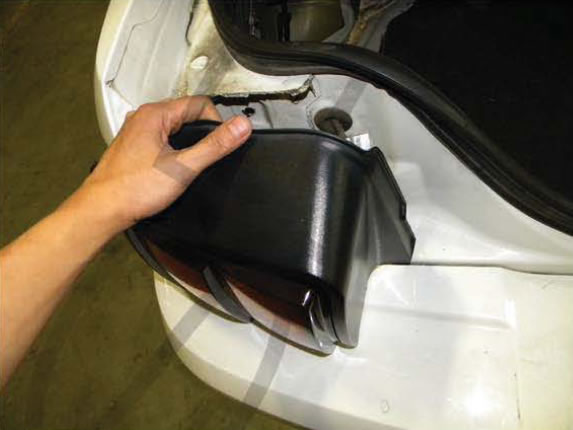

  5. Remove the plastic moulding
  6. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  7. Remove the plastic flat head clip
  8. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

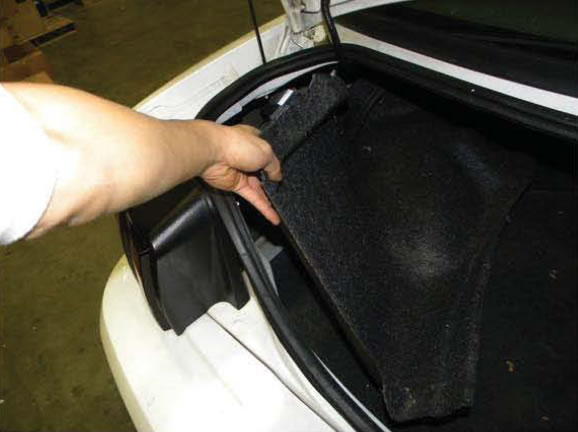

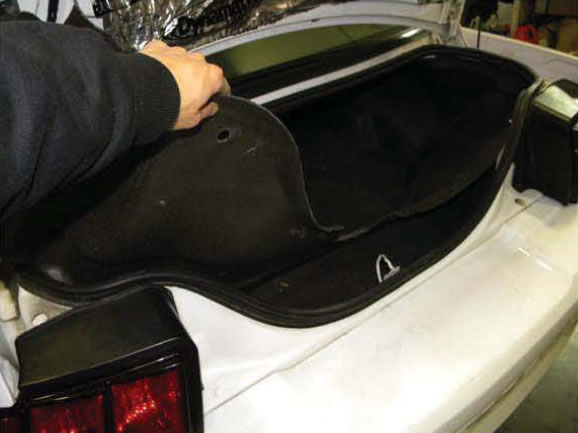

  9. Remove the rear trunk liner
  10. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

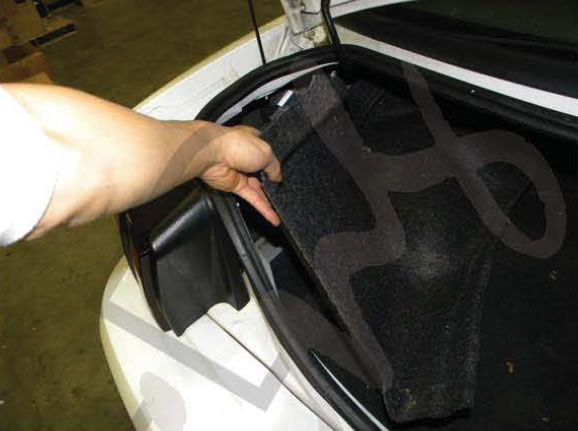

  11. Remove the side trunk liner
  12. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

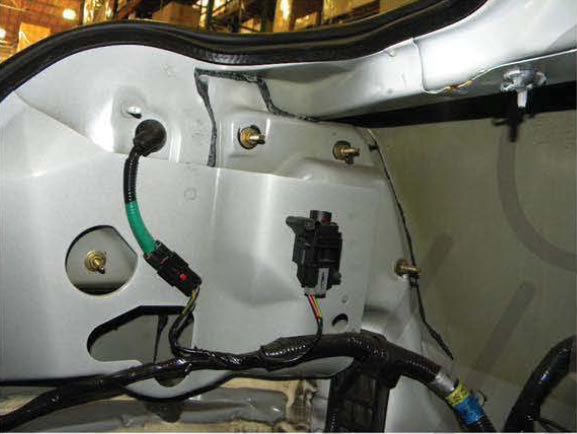

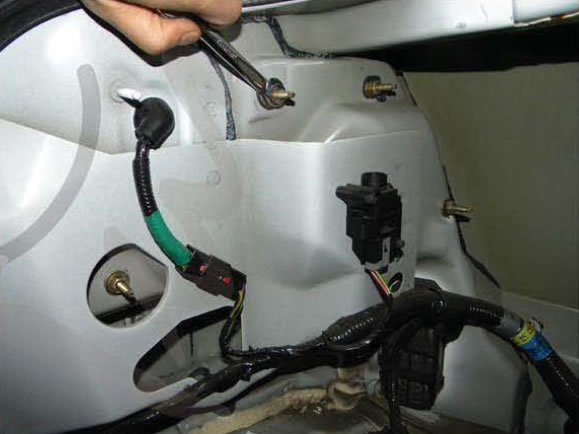

  13. (4) 11mm nuts location
  14. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

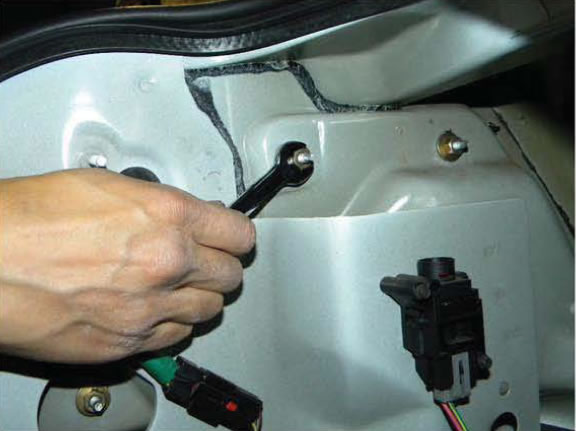

  15. Remove the (4) 11mm nuts
  16. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

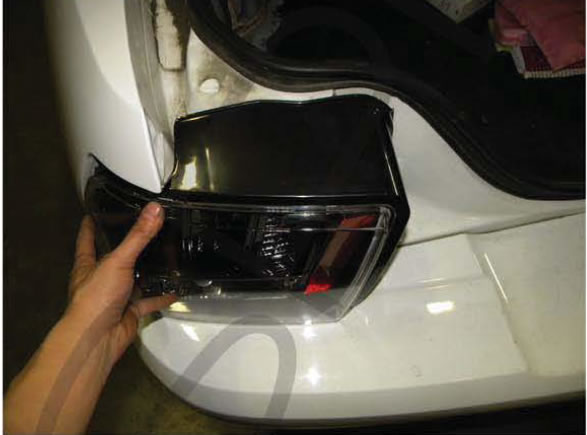

  17. Remove the taillight
  18. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

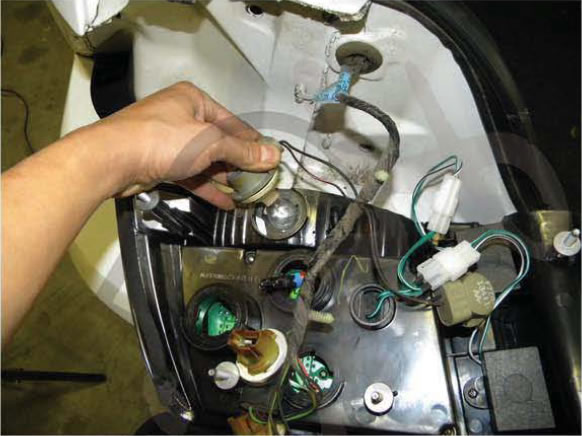

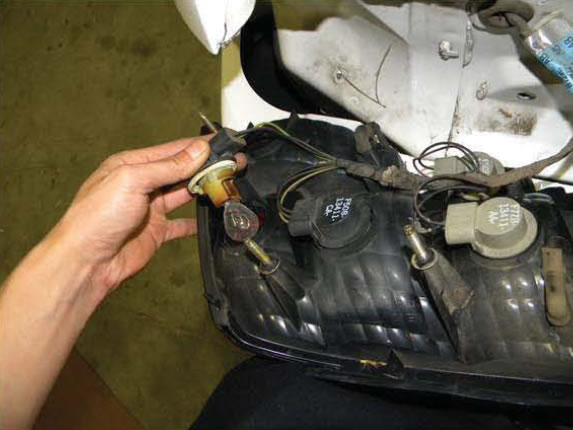

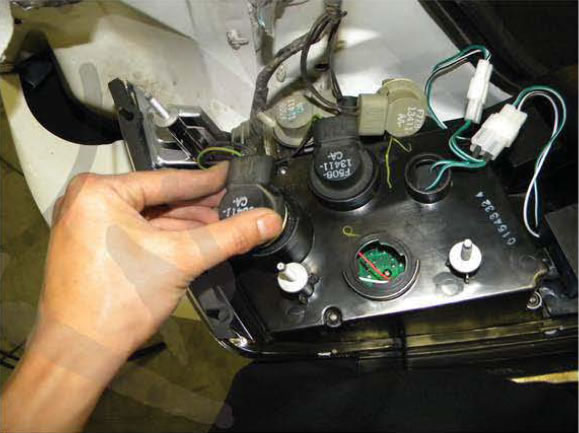

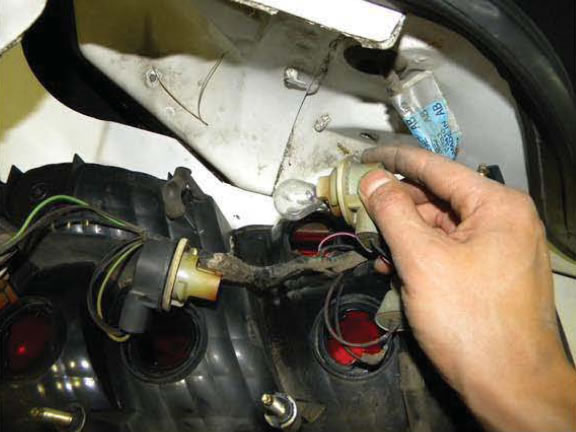

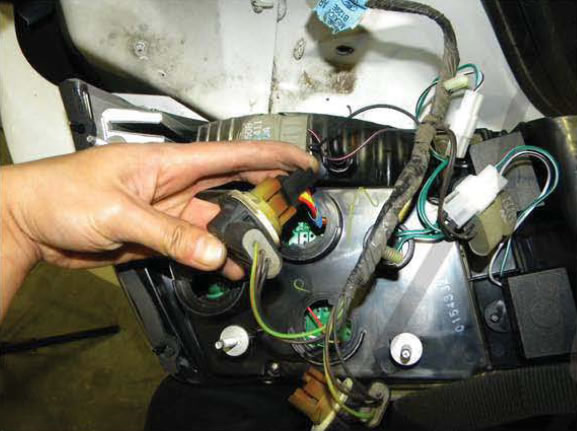

  19. Remove the light harness and the bulbs
  20. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  21. Leave the reverse light bulb in the socket
  22. please see the " L.E.D. taillights installation instruction" If your ta illights doo·t have L. E.D. You can skip the installation instruction.

    chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  23. Plug the taillight hamess into the LED tail tight
  24. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  25. Plug the taillight hamess into the LED taillight
  26. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  27. Plug the taillight hamess into the LED taillight
  28. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  29. Place the LED taillight into the stock location
  30. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  31. tighten the (4) 11mm nuts
  32. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

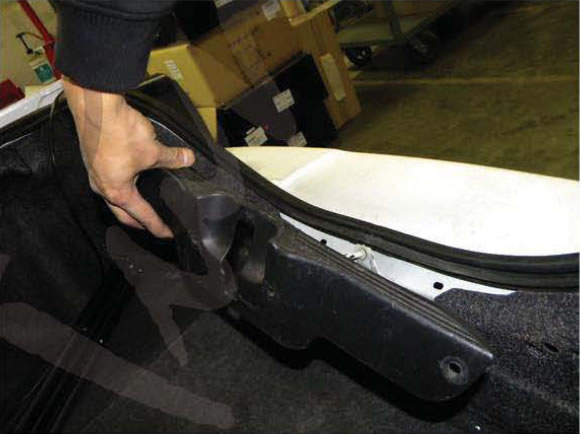

  33. Replace the side truck liner
  34. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

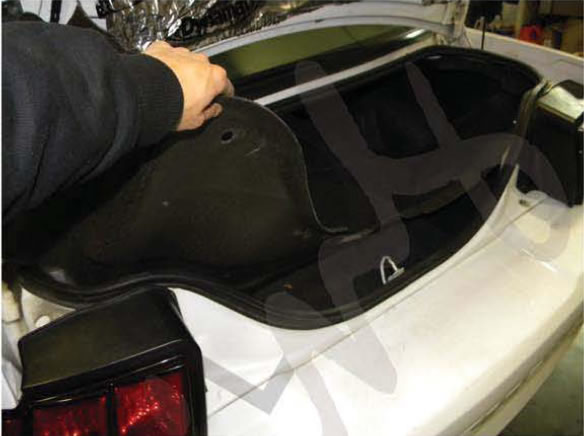

  35. Replace the rear trunk liner
  36. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  37. Tighten the plastic flat head clip
  38. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  39. Replace the plastic molding and secure it with the (4) plastic clips
  40. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

  41. Please repestthe steps in order from 1 to 20 for the opposite side
  42. chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1

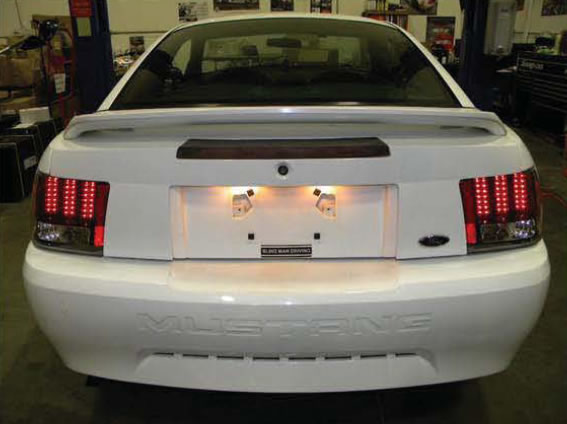

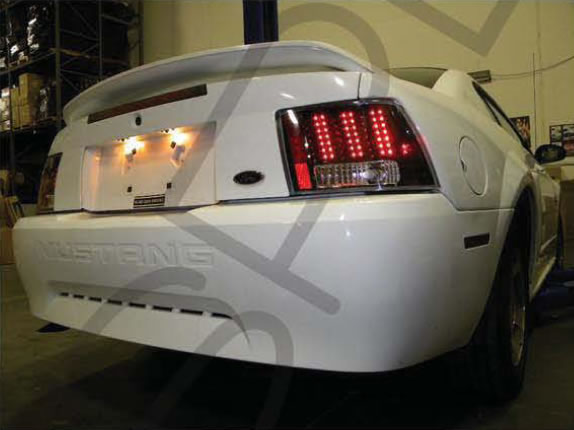

  43. The installation is now complete
chrome-3-light-led-tail-lights-99-04-gt-v6-mach-1
