How to Install a Rear Seat Delete Kit for a 2005-2012 Mustang

Installation Time

2 hours

Tools Required
  • Basic Hand Tools Required
American Muscle
Shop Parts in this Guide

Installation

Installation

Factory Seat Removal

1. Remove lower seat cushion by pushing in the release clips between the lower cushion and the carpeted cross member below, there is one on each side, then lift and it'll come out!

2. Fold down the upper cushion now, and remove bolts securing the u-shaped latches that the upper cushions lock on to. Then fold seat back up and remove the 4 lower hinge bolts. Now remove the twin seat backs.

3. If you are going to remove the seat belts, now is the best time!

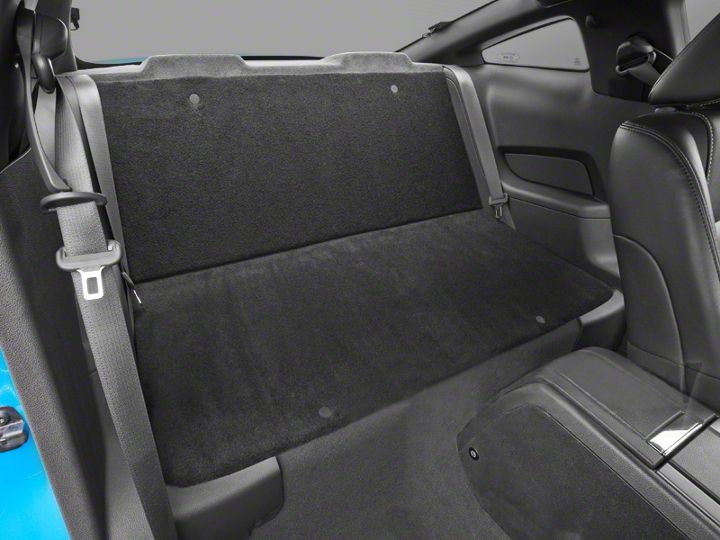

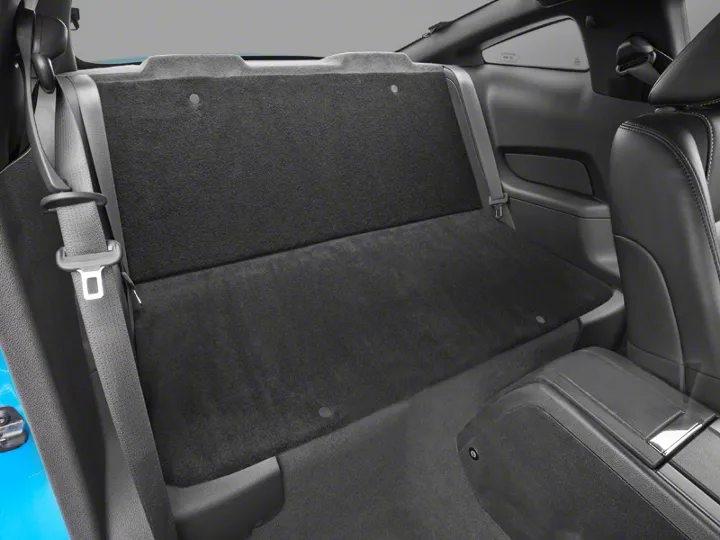

Rear Seat Delete Installation Instructions

1. Install the lower section, two of the four push pins supplied will hold this section in place. It may be necessary to remove the plastic clips attaching the wiring harness that rests beneath the seat kit in order for the kit to sit flush and level.

2. Install the back section. It will be held in place by the remaining two push pins. Be sure that the upper section is above the lower section, not wedged behind it.

3. Your install is now complete.

Please note that this is a rear seat delete kit and is not designed for sitting on. Articles placed in the trunk should be secured, as this kit is not designed to prevent objects entering the passenger compartment.

Installation instructions provided by MMR.

This guide applies to Mustang years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and Submodels: Boss 302, V6, Bullitt, GT, GT500
