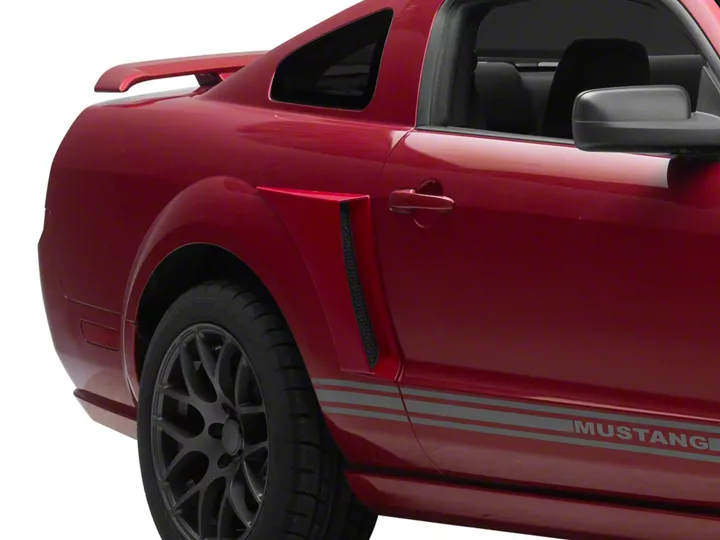

2005-2009 Mustang Side Scoops - Painted - Installation Instructions

This Mustang Parts Installation Guide Works For

Side Scoops - Pre-painted (05-09 All)DOWNLOAD PDF

Tools Required

Basic Hand Tools Required
Installation Time: 60 Mins


  1. Using the supplied 3M Automotive Adhesion Promoter, thoroughly clean the surface of the side scoop where the adhesive tape will be applied. Using the supplied Alcohol Prep Pads, thoroughly clean the surface of the vehicle where the scoop will be applied.

    Caution:Do not use 3M Adhesion Promoter on vehicle’s painted surfaces.Side Scoop Painted 0509 1

    Side Scoop Painted 0509 2

    Side Scoop Painted 0509 3

    Side Scoop Painted 0509 4

  2. Apply the supplied adhesive tape to the outside edges of the side scoop, making sure that it is not extending past the edges. Tip: Make sure to use adhesive on outer edges of corners, this will ensure a proper fit once scoop is applied to vehicle. Use a utility knife to cut remove excess adhesive tape.
  3. Side Scoop Painted 0509 5

  4. Peel backing from adhesive tape on the side scoop.

    Side Scoop Painted 0509 6

  5. Lightly place side scoop on vehicle, taking care to align upper corner with body line and door opening as shown below.

    Side Scoop Painted 0509 7

  6. When certain that scoop is properly aligned, press down firmly where adhesive tape was applied to ensure a proper fit.

    Side Scoop Painted 0509 8

    Side Scoop Painted 0509 9

    Side Scoop Painted 0509 10

  7. Repeat all steps for remaining side scoop to complete installation.

Installation instructions provided by Stack Racing
